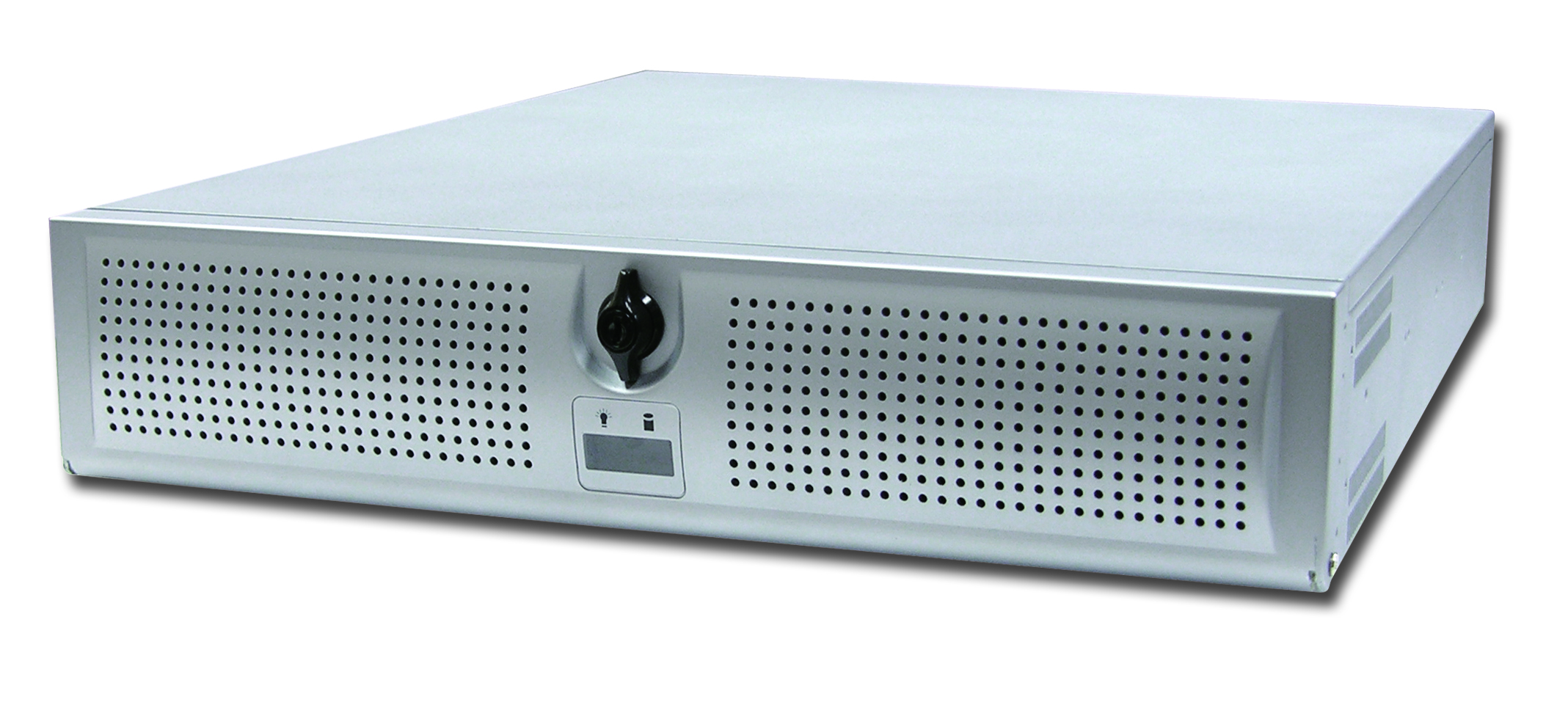

19” 2U industrial rack-mount chassis for Micro-ATX or mini-ITX mother board
AREMO-2173MX, 19” 2U Rack-mount, designed for Micro-ATX and Mini-ITX can support up to 4 low profile add-on cards that also builds two hot-swap 3.5” SATA HDD driver bays and two USB interface on front panel. AREMO-2173MX can equip high wattage PS/2 form factor PSU. The build-in replaceable air filters are for easy maintenance. AREMO-2173MX is suitable for Factory and Server applications.

  • One slim CD-ROM and two hot-swap 3.5” HDD (SATA) Drive bays
  • Two USB ports on the front panel
  • Two 7cm ball-bearing cooling fans for better ventilation
  • One power On/Off switch with protection cap and one touch free reset for secure access

Construction Heavy-duty steel
Drive Bay External: 1x Slim type CD-ROM, 2x Hot-swap 3.5” HDD
Air Filter One external replaceable air filter
Cooling Fan Two 7cm ball-bearing fans
Indicator 1x HDD+ 1x Power On/Off
Switch 1x Power On/Off (with a protection cap), 1x System reset
Speaker One speaker
Connector 2x USB ports equipped on the front panel
Standard Color Silver, Black
Dimension 482(W) x 429.2(D) x 88.6(H) mm; 19”(W) x 16.9”(D) x 3.5”(H)
Weight Net: 11.0 kg (23.1 lb); Gross: 12.0 kg (25.3 lb)
Maximum output 350W active PFC
Output Voltage & Current +5V@12A; +12V1@18A; +12V2@18A; +3.3V@18A; -12V@0.3A, +5Vsb@2.5A
Input Voltage 90V ~ 264V AC, full range
Input Frequency 50 ~ 60Hz
Input Current 8A@115V, 8A@230V
Efficiency > 80%
MTBF 100,000 hrs
EMI & Safety Approval UL, TUV, CE, FCC, CB, VCCI, 80PLUS
Temperature/Humidity Operating: 5°C ~ 50°C, 20% ~ 85%RH
Storage: -40°C ~ 70°C, 10% ~ 95%RH
Dimension (WxDxH) 150 x 140 x 86 mm; 5.9” x 5.5” x 3.4”
Operating Temperature 0°C ~ 55°C
Storage Temperature -20°C ~ 80°C
Relative Humidity 5% ~ 95°%, non-condensing
Vibration 5~7 Hz: 0.5” double amplitude displacement
7~2000 Hz: 1.5g acceleration

Ordering Guide

19” 2U black rack-mount chassis for micro-ATX or mini-TX M/B

19” 2U rack-mount chassis for micro-ATX or mini-TX M/B

Quote & Request Sales Request or Technical Request
  • Specifications are subject to change without notice.
  • Pentium® 4, Pentium® III, Pentium® II and Celeron® are registered trademarks of Intel® Corporation.
  • Xeon™ is a trademark of Intel® Corporation.
  • Other trademarks, logos, brands and company names are the property of their respective owners.
