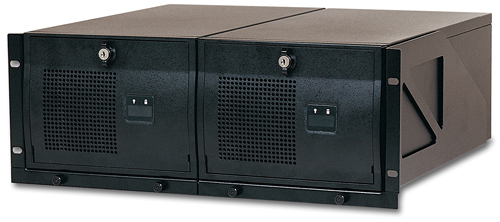

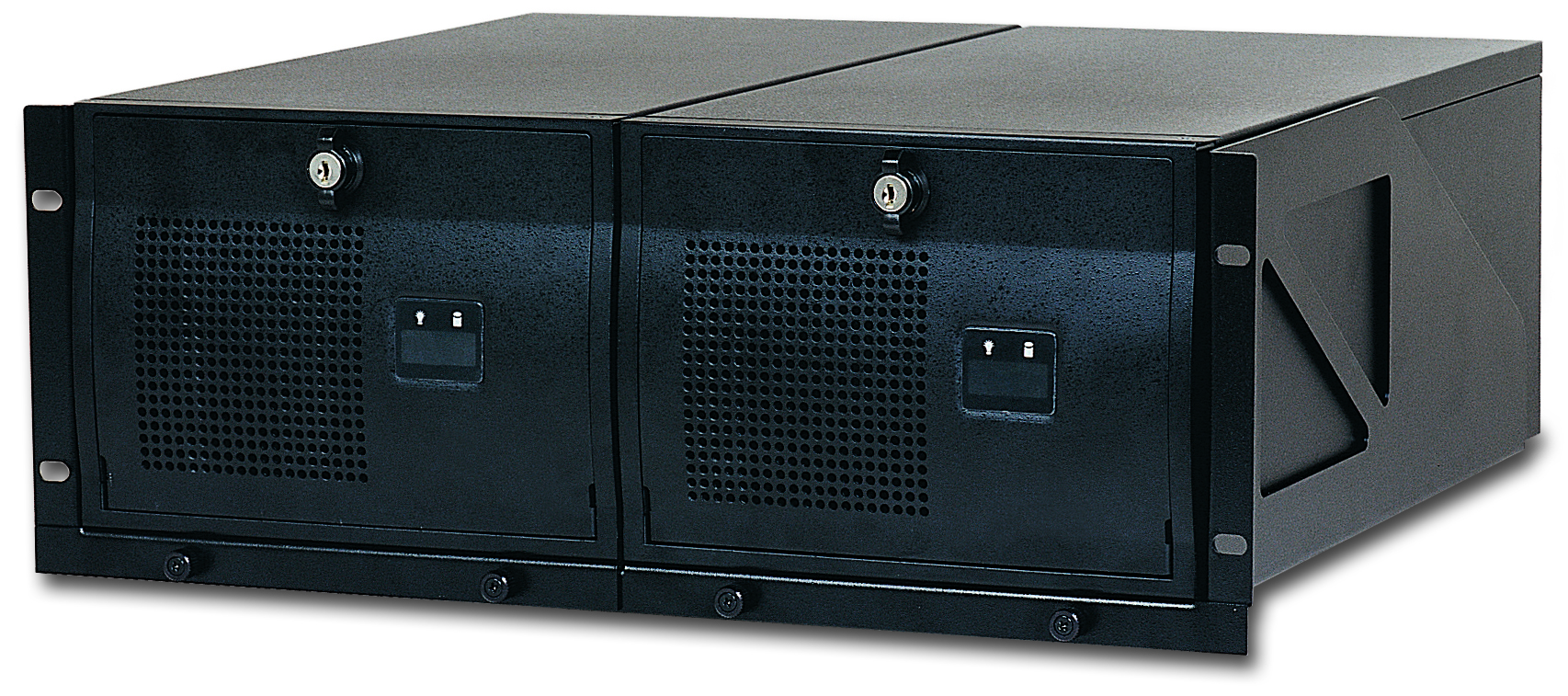

AREMO-4184

19" 4U Height rack-mount chassis with dual AREMO-6182 node chassis


AREMO-4184 combines double AREMO-6182 with dual system frame that lets double AREMO-6182 become 19” 4U Rack-mount size chassis designed for PICMG 1.0/1.3. It is built with one 5.25” HDD driver space for CD/DVDROM, one internal 3.5” HDD driver bays and replaceable air filter for easy maintenance in each AREMO-6182 which also equips two USB interface on front panel, and also high wattage 1U form factor PSU.


Features
  • Magic design for wall-mount, desk-top and rack-mount application
  • Ruggedized steel node chassis suitable for harsh environment
  • One built-in 12cm ball-bearing fan for better ventilation
  • Built-in 1U ATX type power supply
  • Support one external 5.25” and one internal 3.5” disk drive
  • Optional one external 5.25” and one internal 3.5” disk drive
  • Optional kit to combine two AREMO-6182 for the rack-mount application, AREMO-4184

Specifications
Construction Heavy-duty steel
Drive Bay External: 1x 5.25”
Internal: 2x 3.5”
Internal: 3.5” x1
Card Retainer Two locations for one card retainer
Air Filter One replaceable air filter at the front door
Cooling Fan One 12cm ball-bearing fan
Indicator 1x Power On/Off, 1x HDD
Switch 1x Power On/Off (with a protection cap) , 1x System reset
Speaker One speaker
Connector 2 USB ports
Standard Color Black
Dimension AREMO-4184: 482(W) x 448(D) x 177(H) mm; 19”(W) x 17.6”(D) x 7”(H)
Weight AREMO-6182: Net: 6.5 kg (14.3 lb); Gross: 8.0 kg (17.6 lb)
AREMO-4184: Net: 15.5 kg (34.2 lb); Gross: 17.5 kg (38.6 lb)
Backplane PBP-06P3: 6-slot (3xPCI) PICMG backplane
PBP-06P4: 6-slot (4xPCI) PICMG backplane
PBP-06I: 6-slot (6xISA) PICMG backplane
Maximum output 350W active PFC
Output Voltage & Current +5V@18A; +12V1@16A; +12V2@16A; +3.3V@16A; -12V@0.3A, -5V@0.3A, +5Vsb@2.5A
Input Voltage 90V ~ 264V AC, full range
Input Frequency 47 ~ 63Hz
Input Current 6A@115V, 3A@230V
Efficiency > 80%
MTBF 100,000 hrs
EMI & Safety Approval UL, TUV, CE, FCC, CB
Temperature/Humidity Operating: 0°C ~ 50°C, 5% ~ 90%RH
Storage: -20°C ~ 80°C, 5% ~ 95%RH
Dimension (WxDxH) 190x100x40.5 mm; 7.5”x3.9”x1.6”
Operating Temperature 0°C ~ 55°C
Storage Temperature -20°C ~ 80°C
Relative Humidity 5% ~ 95°%, non-condensing
Vibration 5~7 Hz: 0.5” double amplitude displacement
7~2000 Hz: 1.5g acceleration

Ordering Guide

Two sets of AREMO-6182 with black rackmount kit, adapted with 6-slot PICMG backplane

Quote & Request Sales Request or Technical Request
  • Specifications are subject to change without notice.
  • Pentium® 4, Pentium® III, Pentium® II and Celeron® are registered trademarks of Intel® Corporation.
  • Xeon™ is a trademark of Intel® Corporation.
  • Other trademarks, logos, brands and company names are the property of their respective owners.
