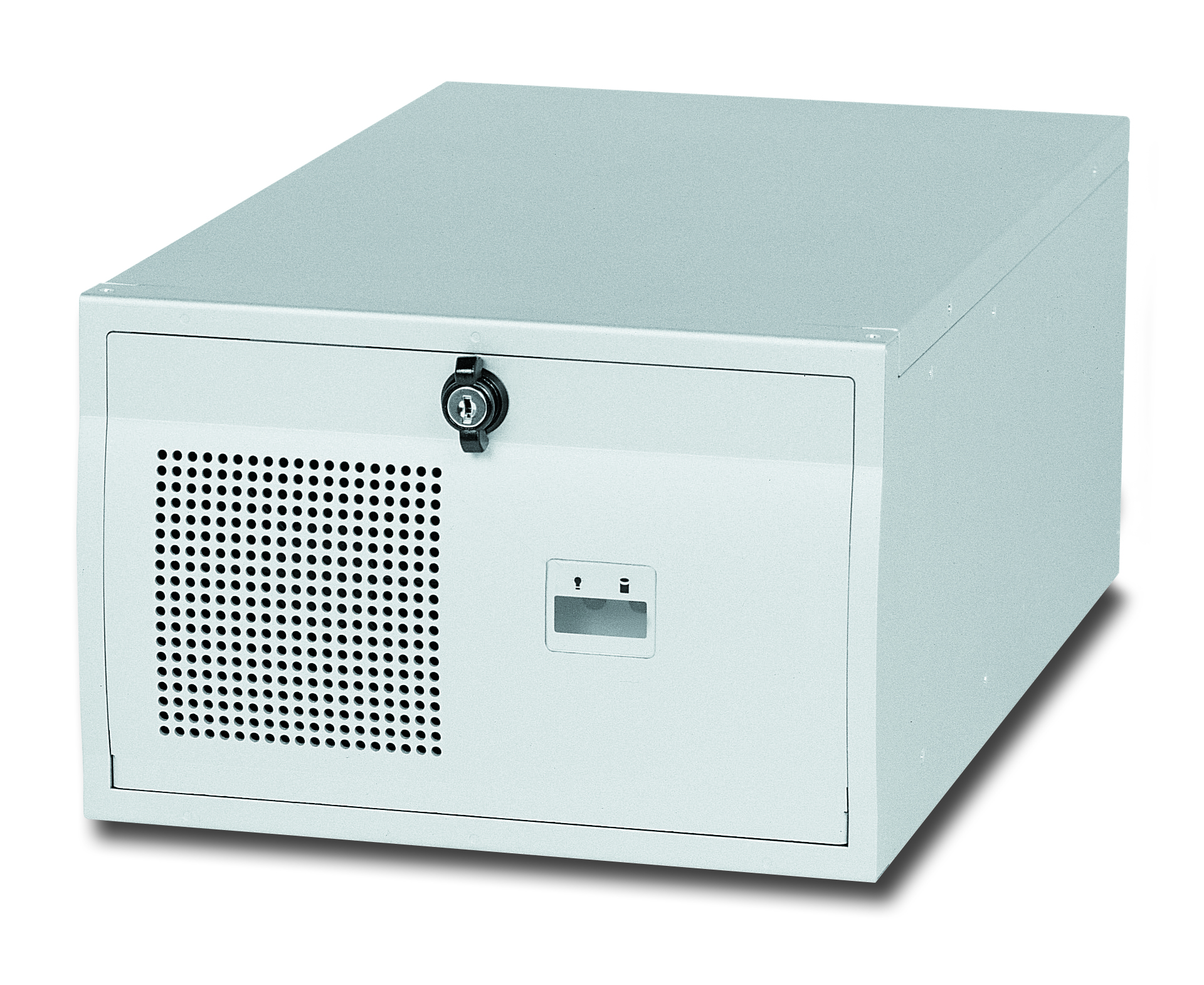

AREMO-6163

6-slot full-size industrial node chassis (Shoe-box)


AREMO-6163 is designed for PICMG 1.0/1.3 with 6-slot backplane that is 4U full size industrial node chassis built with one 5.25” HDD driver space for CD/DVD-ROM, two internal 3.5” HDD driver bays and replaceable air filter for easy maintenance. AREMO-6163 equips two USB interface on front panel, and
also high wattage PS/2 form factor PSU. The compact size feature of AREMO-6163 is suitable for Industrial and Engineering applications.


Features
  • One external 5.25” and two internal 3.5” HDD drive bays
  • Two USB ports on the front panel
  • Can be vertically or horizontally mounted, easy to fit into space limited environment
  • „One 12cm ball-bearing cooling fan for better ventilation
  • „One replaceable air filter for easy cleaning
  • Two adjustable positions for hold-down card retainers provide better protection from vibration
  • Wall-mounting bracket equipped
  • Both 6-slot PICMG 1.0 or 1.3 backplane applicable; easy to change different backplanes
  • Field replaceable power supply bracket for both normal PS/2 and PS/2 redundant power supply, easy for changing defected power supply

Specifications
Construction Heavy-duty steel
Drive Bay External: 1x 5.25”
Internal: 2x 3.5” HDD
Card Retainer Two locations for one card retainer
Air Filter One replaceable air filter at the front door
Cooling Fan One 12cm ball-bearing fan
Indicator 1x Power On/Off, 1x HDD
Switch 1x Power On/Off, 1x System reset
Speaker One speaker
Connector 2x USB ports on the front panel
Standard Color Silver, Black
Dimension 260(W) x 420.5(D) x 172(H) mm; 10.24”(W) x 16.56”(D) x 6.77”(H)
Weight Net: 8.5 kg (18.7 lb); Gross: 9.5 kg (20.9 lb)
Backplane PBP-06P4: 6-slot [PCIe (1), PCI (4), PCI-X (0)] PICMG 1.0 backplane
PBP-06P3: 6-slot [PCIe (2), PCI (3), PCI-X (0)] PICMG 1.0 backplane
PBP-06P2: 6-slot [PCIe (3), PCI (2), PCI-X (0)] PICMG 1.0 backplane
Maximum output 350W active PFC
Output Voltage & Current +5V@12A; +12V1@18A; +12V2@18A; +3.3V@18A; -12V@0.3A, +5Vsb@2.5A
Input Voltage 90V ~ 264V AC, full range
Input Frequency 50 ~ 60Hz
Input Current 8A@115V, 8A@230V
Efficiency > 80%
MTBF 100,000 hrs
EMI & Safety Approval UL, TUV, CE, FCC, CB, VCCI, 80PLUS
Temperature/Humidity Operating: 5°C ~ 50°C, 20% ~ 85%RH
Storage: -40°C ~ 70°C, 10% ~ 95%
Dimension (WxDxH) 150 x 140 x 86 mm; 5.9” x 5.5” x 3.4”
Operating Temperature 0°C ~ 55°C
Storage Temperature -20°C ~ 80°C
Relative Humidity 5% ~ 95°%, non-condensing
Vibration 5~7 Hz: 0.5” double amplitude displacement
7~2000 Hz: 1.5g acceleration



Ordering Guide

6-slot full-size industrial black node chassis with 6-slot (4xPCI) PICMG backplane

6-slot full-size industrial node chassis with 6-slot (3xPCI) PICMG backplane

Quote & Request Sales Request or Technical Request
  • Specifications are subject to change without notice.
  • Pentium® 4, Pentium® III, Pentium® II and Celeron® are registered trademarks of Intel® Corporation.
  • Xeon™ is a trademark of Intel® Corporation.
  • Other trademarks, logos, brands and company names are the property of their respective owners.
