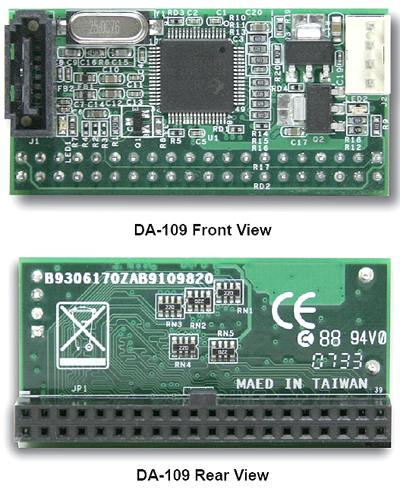

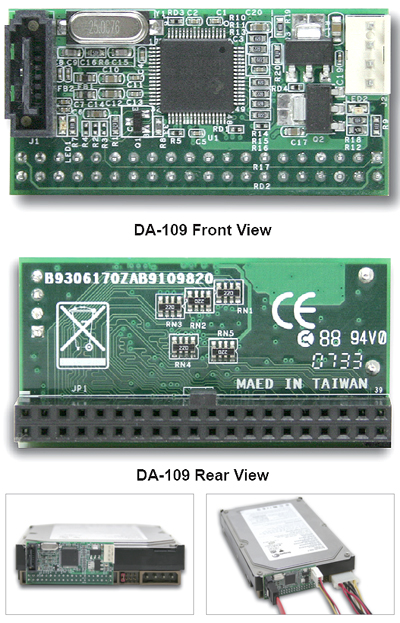

Compact SATA (Host) to IDE adapter board
DA-109, SATA (Host) to IDE adapter board is a perfect solution for converting the Serial ATA interface to IDE interface (Hard Drive, CD-ROM and etc...). It is the perfect solution for taking legacy devices and allowing them to be converted to SATA signal so that they can upgrade mainboard without purchasing new SATA device. Meanwhile, SATA signal provides a smaller cable for better internal cooling and easier installation as well.

  • Serial ATA 1.0 compliant
  • Convert Serial ATA interface into IDE interface
  • Support ATA 33/66/100/133/150
  • Support 750GB or larger HDD
  • Board size (25.4mm x 52mm). Mount directly to the back of IDE device
  • Simply plug and play, no driver required
  • Compatible with any OS (Windows, DOS, Mac, Linux, UNIX..) that supports IDE storage devices
  • SATA: 7-pin data connector (work with standard SATA connecting cable)
  • IDE: 40-pin IDE female connector (direct attach to IDE device)
  • Power: floppy power connector

Ordering Guide

SATA (Host) to IDE adapter board

SATA cable with latch

Quote & Request Sales Request or Technical Request
  • Specifications are subject to change without notice.
  • Pentium® 4, Pentium® III, Pentium® II and Celeron® are registered trademarks of Intel® Corporation.
  • Xeon™ is a trademark of Intel® Corporation.
  • Other trademarks, logos, brands and company names are the property of their respective owners.
