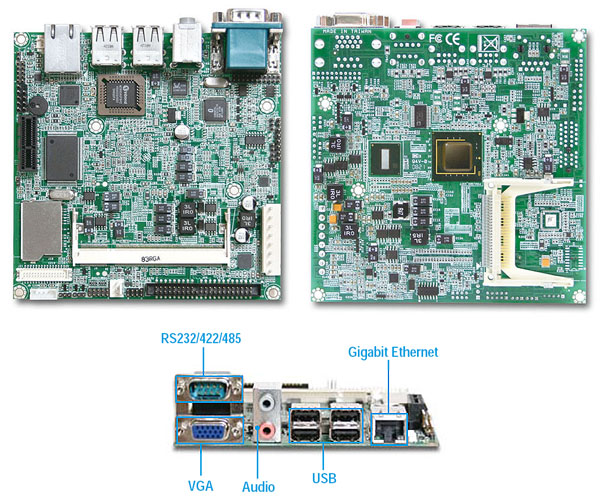

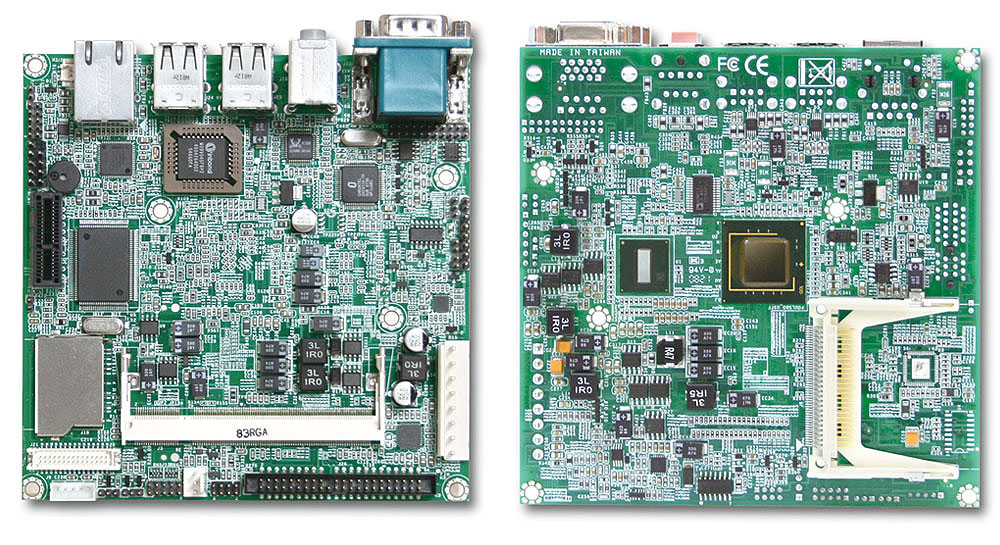

NANO-8044

Intel® Ultra Low Power Atom™ Processor based Nano-ITX Board with dual display, Gigabit Ethernet, Audio, USB and SDIO


NANO-8044 takes advantage of the latest Intel® Atom™ technologies. It supports DDR2 SDRAM, dual displays, one Gigabit Ethernet and one expansion PCI-Express x1 slot. Base on leading Intel® Atom™ solution, NANO-8044 is a compact and ultra low power dissipation board for Medical, Gaming and DSS applications.


Features
  • Intel® Atom™ processor Z510/Z530 and System Controller Hub US15W
  • One 200-pin SODIMM supports DDR2 SDRAM up to 2GB
  • Dual independent display: VGA and 24-bit LVDS
  • One Type II CompactFlash & one IDE connect
  • One Intel® Gigabit Ethernet

Ordering Guide

AB1-3210
NANO-8044-1100
Nano-ITX ESB.Intel Atom 1.1G.w / DDR SDRAM / VGA / LVDS / Dual Display / GbE LAN / Audio

AB1-3227
NANO-8044-1600
Nano-ITX ESB.Intel Atom 1.6G.w / DDR SDRAM / VGA / LVDS / Dual Display / GbE LAN/Audio

AA1-3078
PER-4110R
1 Slot Riser Card.PCIE x 1 to PCIE x 1

Quote & Request Sales Request or Technical Request
  • Specifications are subject to change without notice.
  • Pentium® 4, Pentium® III, Pentium® II and Celeron® are registered trademarks of Intel® Corporation.
  • Xeon™ is a trademark of Intel® Corporation.
  • Other trademarks, logos, brands and company names are the property of their respective owners.
