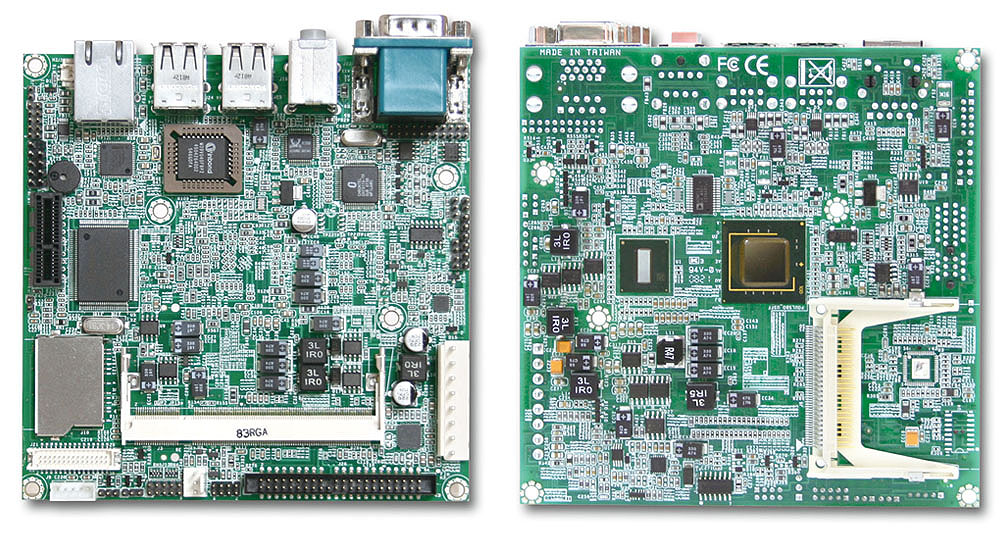

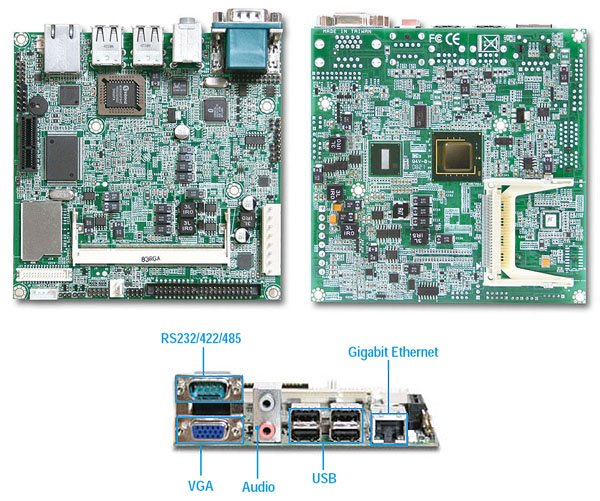

NANO-8044	Intel^® Ultra Low Power Atom™ Processor based Nano-ITX Board with dual display, Gigabit Ethernet, Audio, USB and SDIO



	Ordering Guide Larger Image(s)	Download Datasheet (PDF)

NANO-8044 takes advantage of the latest Intel^® Atom™ technologies. It supports DDR2 SDRAM, dual displays, one Gigabit Ethernet and one expansion PCI-Express x1 slot. Base on leading Intel^® Atom™ solution, NANO-8044 is a compact and ultra low power dissipation board for Medical, Gaming and DSS applications.

FEATURES

Intel^® Atom™ processor Z510 / Z530 and System Controller Hub US15W
One 200-pin SO-DIMM supports DDR2 SDRAM up to 2GB
Dual independent display: VGA and 24bit LVDS
One Type II Compact Flash & one IDE connector
One Intel^® Gigabit Ethernet

ORDERING GUIDE

Standard

NANO-8044-1100

Intel^® Atom™ processor Z510 Nano-ITX Board

NANO-8044-1600

Intel^® Atom™ processor Z530 Nano-ITX Board

PER-4110R

One slot PCI-E ×1 riser card

Specifications are subject to change without notice.
