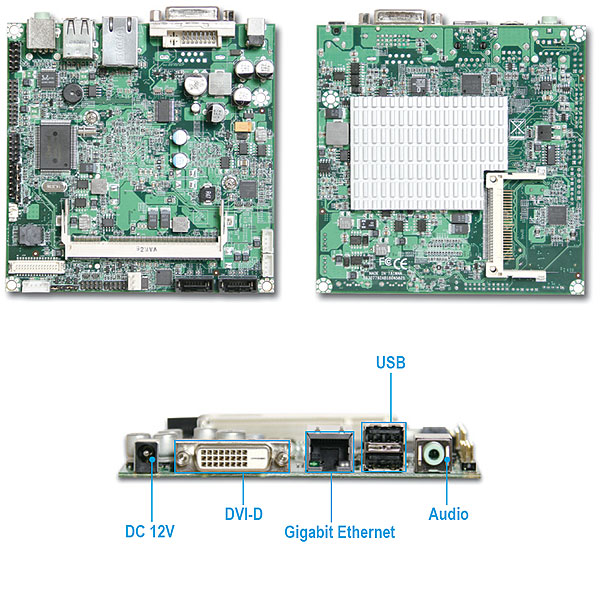

NANO-8045L Intel® Ultra Low Power Atom™ Processor based NANO-ITX Board with dual display, Gigabit Ethernet, Audio, USB and SATA     Ordering Guide Larger Image(s) Download Catalog (PDF)   NANO-8045L takes advantage of the latest Intel® Atom™ technologies. It supports DDR2 SDRAM, dual displays and one Gigabit Ethernet. Base on leading Intel® Atom™ solution, NANO-8045L is a compact and ultra low power dissipation board for Medical, Gaming and DSS applications. FEATURES Intel® Atom™ processor Z510 / Z530 and System Controller Hub US15W One 200-pin SO-DIMM supports DDR2 SDRAM up to 2GB Dual independent display: DVI-D and 24bit LVDS One Type II Compact Flash & two SATA ports One Realtek Gigabit Ethernet Support DC 12V input Only 17mm height for rear I/O ORDERING GUIDE Standard NANO-8045L-1100 Intel® Atom™ processor Z510 Nano-ITX Board NANO-8045L-1600 Intel® Atom™ processor Z530 Nano-ITX Board

Quote & Request
