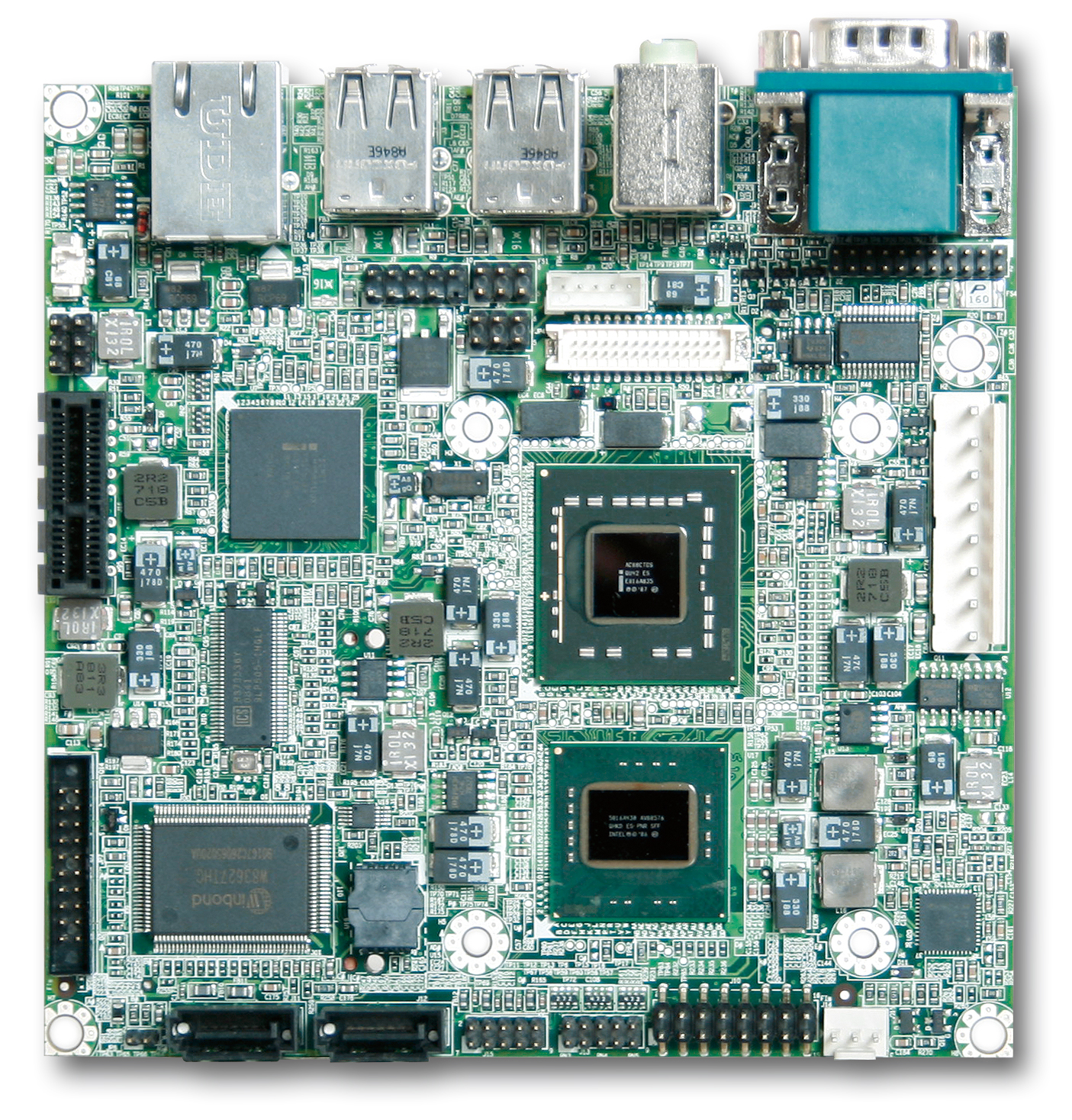

NANO-8050

Leading Intel® latest ULV Mobile SFF 45nm Core™ 2 Duo or Celeron® M Processor based NANO-ITX with DDR2 SODIMM, Dual Displays, Gigabit Ethernet, Audio, USB


NANO-8050 adopts Intel® Small Form Factor (SFF) mobile chipset and takes advantage of leading Intel® Core™ 2 Duo/Celeron® M technologies with high performance, built-in graphics media accelerator (GMA) 4500MHD graphics engine. NANO-8050 supports 3D performance and dual display by VGA and LVDS. This compact, low heat model is ideal for Medical and DS applications.


Features
  • Intel® Ultra Low Voltage Mobile 45nm Core™ 2 Duo or Celeron® M Processor
  • One 200-pin SODIMM supports DDR2 800/667MHz up to 2GB
  • Dual Display: VGA and 24-bit LVDS
  • One Intel® Gigabit Ethernet port
  • Supports iTPM function for more secure platforms

Ordering Guide

AB1-3266
NANO-8050-1200.Nano-ITX ESB.Intel Core 2 Duo SU9300 1.2GHz.w/DDR2 SDRAM/VGA/LVDS/Dual Display/GbE LAN/Audio

AB1-3280
NANO-8050-2260.Nano-ITX ESB.Intel Core 2 Duo SP9300 2.26GHz.w/DDR2 SDRAM/VGA/LVDS/Dual Display/GbE LAN/Audio

AB1-3281
NANO-8050-1860.Nano-ITX ESB.Intel Core 2 Duo SL9400 1.86GHz.w/DDR2 SDRAM/VGA/LVDS/Dual Display/GbE LAN/Audio

AB1-3355
NANO-8050-C1203.Nano-ITX ESB.Intel Celeron ULV723 1.2GHz.w/DDR2 SDRAM/VGA/LVDS/Dual Display/GbE LAN/Audio

AB1-3373
NANO-8050-C1202.Nano-ITX ESB.Intel Celeron ULV722 1.2GHz.w/DDR2 SDRAM/VGA/LVDS/Dual Display/GbE LAN/Audio

AA1-3078
PER-4110R.1 Slot Riser Card.PCIEx1 to PCIEx1

Packing List

  • One NANO-8050 NANO-ITX Main Board
  • One Active or Passive Heatsink depends on CPU sku
  • One Installation CD
  • One 8 pin ATX Power Cable

Quote & Request Sales Request or Technical Request
  • Specifications are subject to change without notice.
  • Pentium® 4, Pentium® III, Pentium® II and Celeron® are registered trademarks of Intel® Corporation.
  • Xeon™ is a trademark of Intel® Corporation.
  • Other trademarks, logos, brands and company names are the property of their respective owners.
