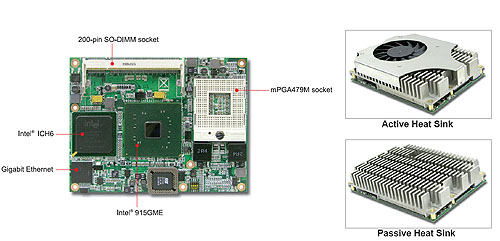

PCOM-B210VG

Intel®Pentium®M or Celeron®M processor based Type II COM Express module with DDR2 SDRAM, VGA, Gigabit Ethernet and USB



Features
  • Intel® 915GME based COM Express module supports high bandwidth serial type I/O interfaces such as PCI Express, SDVO & SATA
  • Plug-n-run with the carrier boards and save time to market
  • Accept both socket type and BGA type Pentium® M and Celeron® M processors for low power or fan-less applications
  • Maximum 1GB DDR2 memory
  • Equipped with single PCI Express x1 interface based Gigabit Ethernet that could change to Fast Ethernet by project

Ordering Guide

PCOM-B210VG
Intel® Pentium® M or Celeron® M processor based Type II COM Express module with DDR2 SDRAM, VGA, Gigabit Ethernet and USB

Packing List

  • Heat sink for both PCOM-210/211 with socket type processor
  • Heat sink for both PCOM-210/211 with low power consumption on-board processor

Quote & Request Sales Request or Technical Request
  • Specifications are subject to change without notice.
  • Pentium® 4, Pentium® III, Pentium® II and Celeron® are registered trademarks of Intel® Corporation.
  • Xeon™ is a trademark of Intel® Corporation.
  • Other trademarks, logos, brands and company names are the property of their respective owners.
