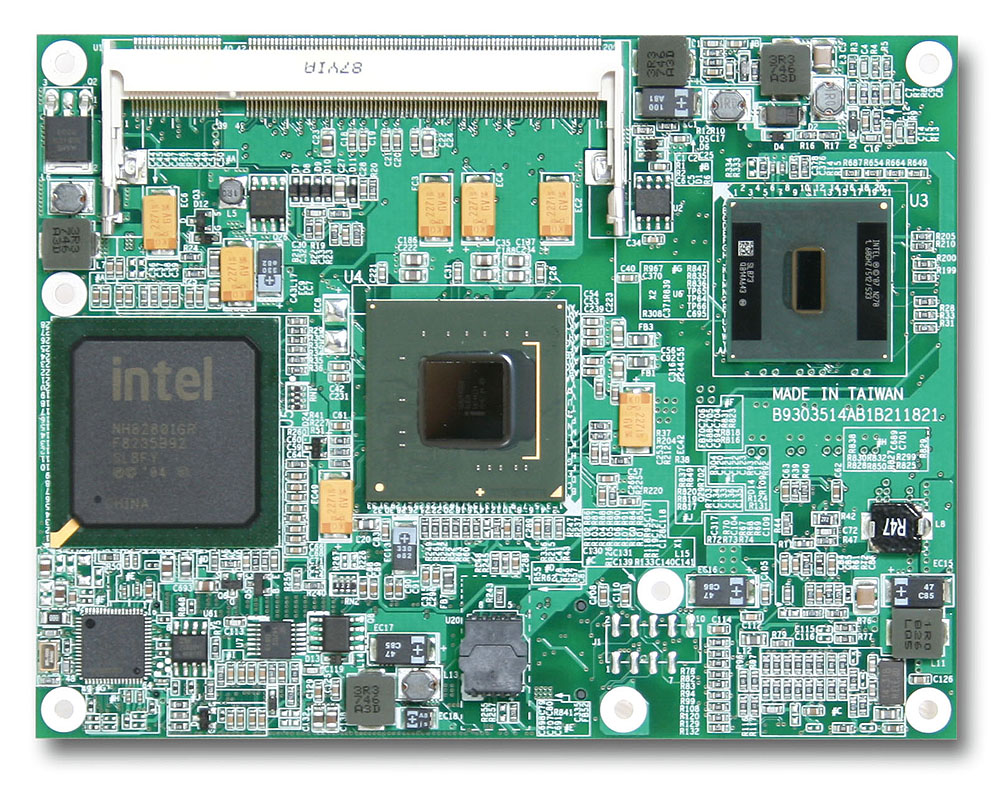

PCOM-B214VG

Intel® Atom™ based Type II COM Express module with DDR2 SDRAM, VGA, Gigabit Ethernet, SATA and USB


Portwell PCOM-B214VG is designed with Intel® N270 1.6 GHz processor with 945GSE and ICH7M chipset, with less then 10W overall TDP it is suitable for fanless application related to multiple processor network blade, ATCA, access control, and industrial control application.


Features

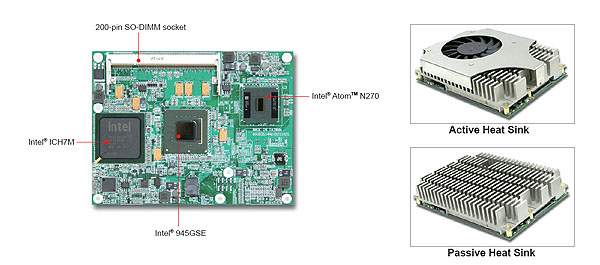

  • The Intel® ATOM™ N270 and 945GSE platform that provides cost effective solution technology
  • Intel® ATOM™ N270 + 945GSE + ICH7M platform brings under 10W TDP solution for easy fan-less applications
  • SATA and IDE interface provide best cost effective functions for market
  • Architecture of module and carrier boards speeds up time-to-market of tailor-made equipment
  • Support one SODIMM socket and up to 2GB memory size

Ordering Guide

AB1-3264
PCOM-B213VG.TYPE II.GM45/ICH9M

Quote & Request Sales Request or Technical Request
  • Specifications are subject to change without notice.
  • Pentium® 4, Pentium® III, Pentium® II and Celeron® are registered trademarks of Intel® Corporation.
  • Xeon™ is a trademark of Intel® Corporation.
  • Other trademarks, logos, brands and company names are the property of their respective owners.
