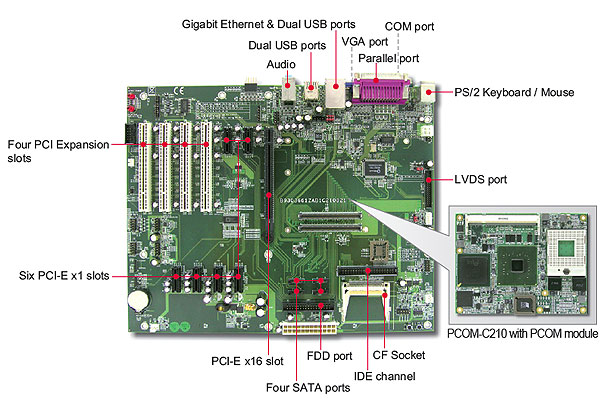

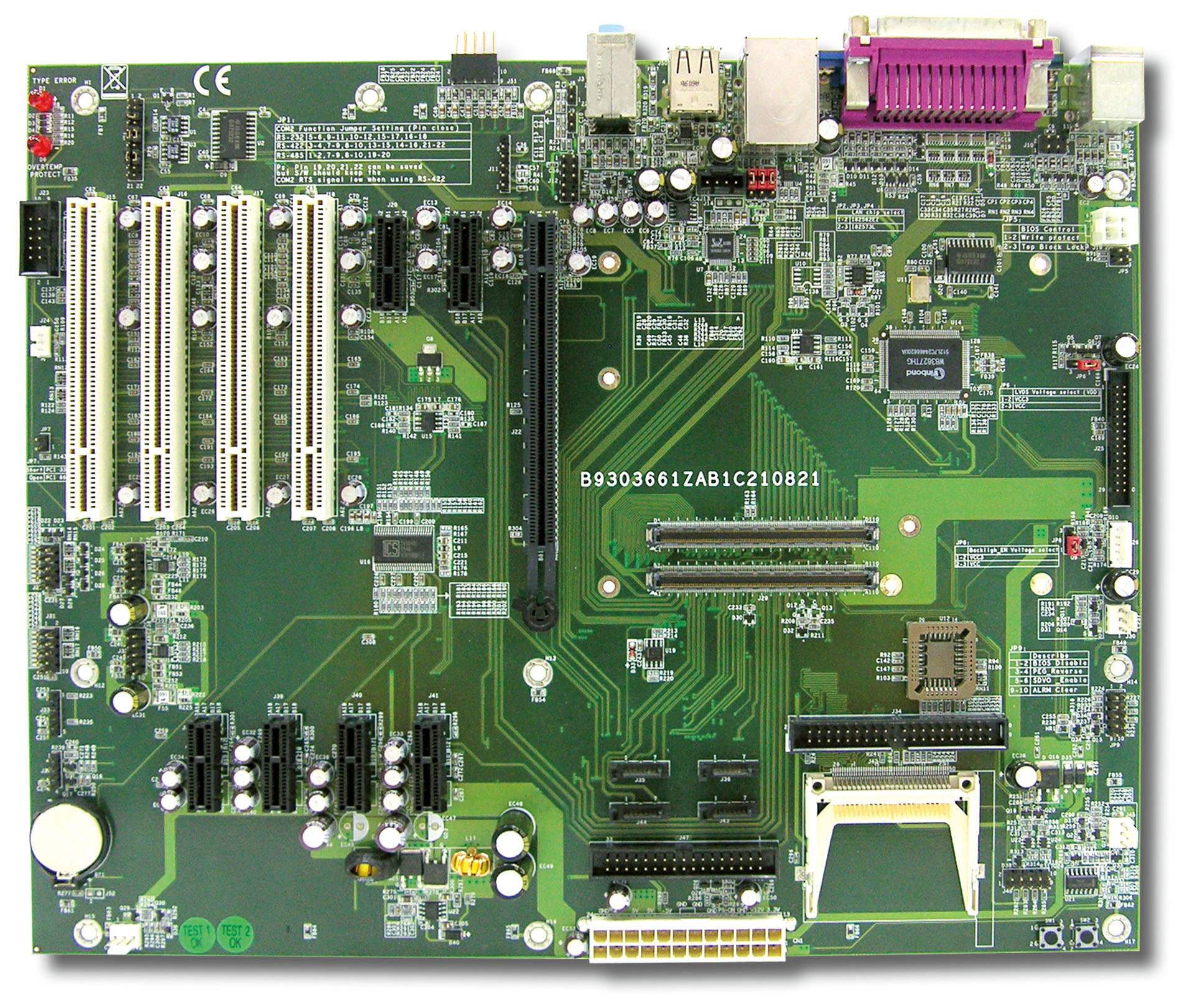

PCOM-C210

ATX Form Factor Evaluation Carrier Board For COM Express Type II Module


Portwell PCOM-C210 is designed with COM Express Type II interface, suitable for initial evaluation testing in PCI-E, PCI, PEG/SDVO, IDE, SATA, LAN, LVDS, AUDIO, etc. interfaces before developing your own application focused customized carrier board.


Features
  • COM Express carrier board is compatible with the Portwell Type II COM Express modules
  • ATX form factor meets most standard mounting spaces and provides more expansions slots
  • On-board power and reset switches benefit engineering testing or evaluation without a chassis
  • 2 EIDE, 4 SATA, 4 PCI, 6 PCI-E x1 and 1 PCI-E x16
  • Allows user to select master BIOS on board or from CPU module

Ordering Guide

AB1-2289
PCOM-C210 Type II ATX Evaluation Carrier Board

B6902540
Cable.LVDS L=700mm for PCOM-C210 15"Panel. E-CALL

Quote & Request Sales Request or Technical Request
  • Specifications are subject to change without notice.
  • Pentium® 4, Pentium® III, Pentium® II and Celeron® are registered trademarks of Intel® Corporation.
  • Xeon™ is a trademark of Intel® Corporation.
  • Other trademarks, logos, brands and company names are the property of their respective owners.
