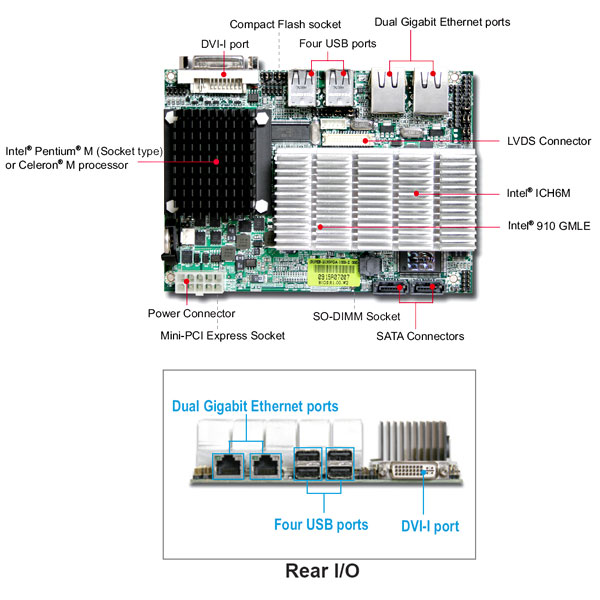

PEB-2130

3.5" embedded size, Intel® Pentium® M or Celeron® M processor based on Embedded Board with DVI, LVDS, Dual Gigabit Ethernet, Audio and USB



Features
  • Intel® Pentium® M or Celeron® M in Micro-FCPGA/ FCBGA package
  • One 200-pin SO-DIMM supports DDR2 SDRAM up to 1GB
  • One Type II Compact Flash and two SATA ports
  • Dual independent display: DVI and 18bit LVDS
  • On board dual Gigabit Ethernet
  • Wireless application can be accomplished by adding Mini-PCI Express form factor wireless adapter

Ordering Guide

PEB-2130VGA-1000-Z
3.5" ESB based on Intel® Celeron® M 1GHz processor with DVI / LVDS, LAN, COM, USB and Audio

Packing List

  • 3.5" ESB based on Intel® Celeron® M 600MHz processor with DVI / LVDS, LAN, COM, USB and Audio
  • 3.5" ESB based on socket type with DVI / LVDS, LAN, COM, USB and Audio

Quote & Request Sales Request or Technical Request
  • Specifications are subject to change without notice.
  • Pentium® 4, Pentium® III, Pentium® II and Celeron® are registered trademarks of Intel® Corporation.
  • Xeon™ is a trademark of Intel® Corporation.
  • Other trademarks, logos, brands and company names are the property of their respective owners.
