| PEB-2736 |

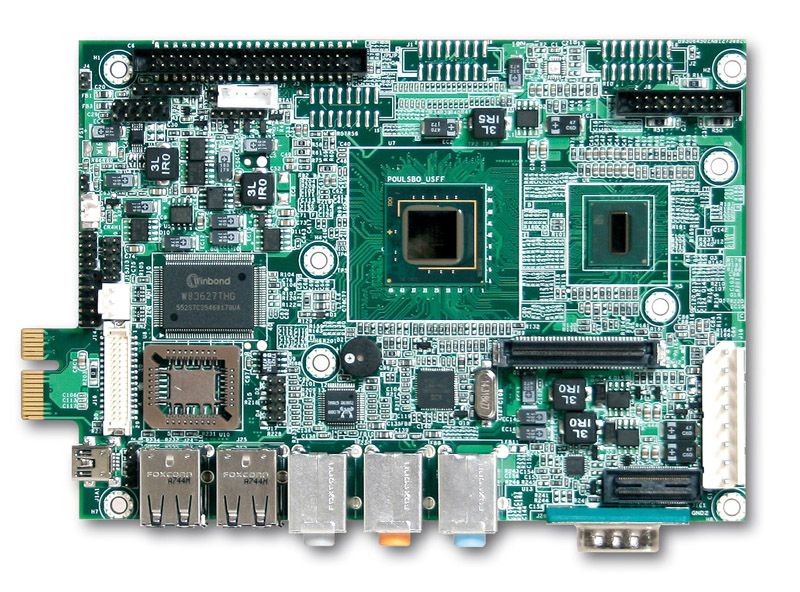

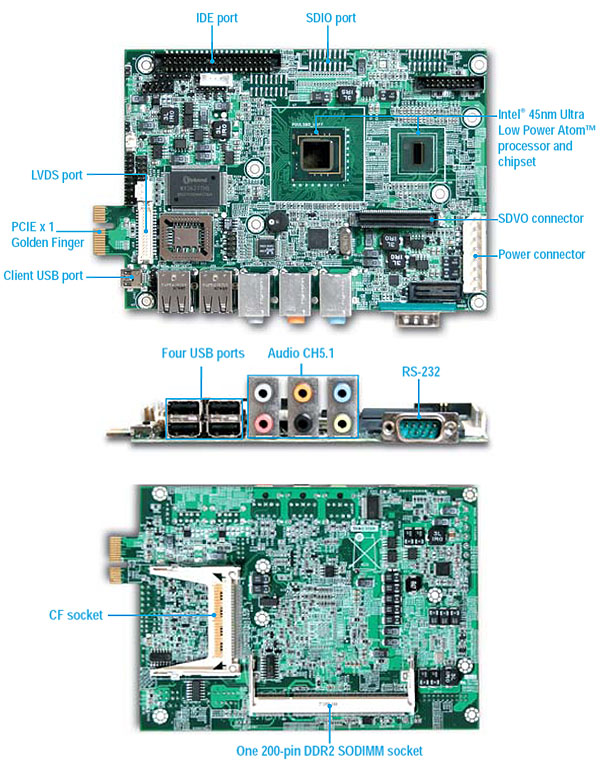

UIntel® 45nm Ultra Low Power SFF processor based ECX embedded board with dual display,Audio, USB and SDIO |
- Intel® ATOM™ processor Z510 and System Controller Hub US15W (TDPIM5W)
- One 200-pin SO-DIMM supports DDR2 SDRAM up to 1GB
- One Type II Compact Flash & one IDE connector
- Dual independent display: SDVO and 24bit LVDS
- SDVO Connector support VGA/DVI/LVDS daughter card
- Multi-stream audio and CH5.1 supported
- TPM (Trusted Platform Module) and UDM (USB-Disk Module) could be added on board
|
- Specifications are subject to change without notice.
- Pentium® 4, Pentium® III, Pentium® II and Celeron® are registered trademarks of Intel® Corporation.
- Xeon™ is a trademark of Intel® Corporation.
- Other trademarks, logos, brands and company names are the property of their respective owners.
|
