PEB-2737

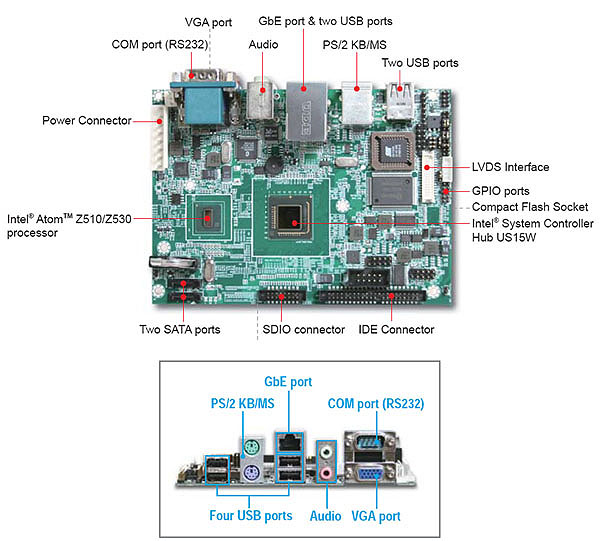

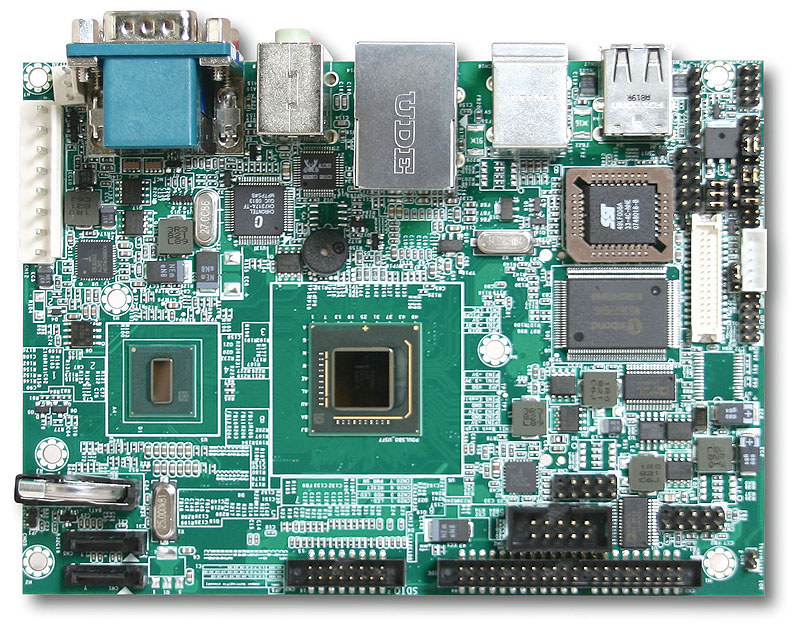

Intel® 45nm Ultra Low Power Atom™ processor based ECX embedded board with VGA, LVDS, Gigabit Ethernet, Audio, USB and SDIO

PEB-2737




FEATURES
  • Intel® Atom™ processor Z510 / Z530 and System Controller Hub US15W (TDP≤5W)
  • One 200-pin SO-DIMM supports DDR2 SDRAM up to 2GB
  • One Type II Compact Flash, one IDE & two SATA ports
  • Dual independent display: VGA and 24bit LVDS
  • One Gigabit Ethernet

ORDERING GUIDE
Standard
PEB-2737VLA-1100
3.5" ESB based on Intel® Atom™ 1.1G processor with VGA/LVDS, LAN, COM, USB and Audio

PEB-2737VLA-1600
3.5" ESB based on Intel® Atom™ 1.6G processor with VGA/LVDS, LAN, COM, USB and Audio

Optional
B2900260
　　SATA cable × 1

B690004S
　　IDE cable × 1

AB9-3050Z
　　SDIO daughter board × 1

  • Specifications are subject to change without notice.
  • Pentium® 4, Pentium® III, Pentium® II and Celeron® are registered trademarks of Intel® Corporation.
  • Xeon™ is a trademark of Intel® Corporation.
  • Other trademarks, logos, brands and company names are the property of their respective owners.
