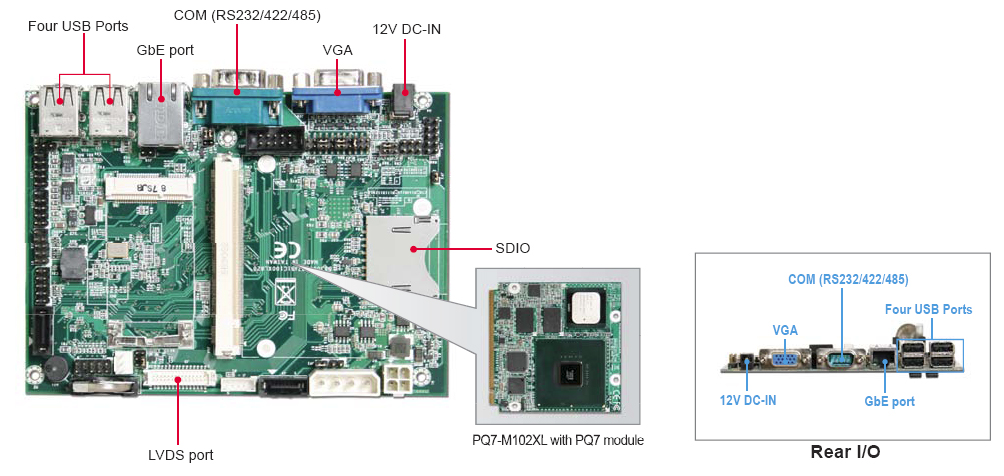

PQ7-C100XL

3.5" ESB Form Factor Carrier Board For Qseven Module


Portwell PCOM-C100XL is designed with Q7 230pin card edge MXM connecter, suitable for initial evaluation testing in PCI-E, Mini PCI-E, VGA/LVDS, SATA, LAN, AUDIO, SDIO, LPC etc. interfaces before developing your own application focused customized carrier board.


Features
  • Qseven carrier board accept Portwell Qseven modules
  • 3.5" ESB form factor to embedded applications
  • On Board DC to DC circuit for DC in application
  • Mini-PCIe support
  • Support boot from SD(SDIO 1.1)

Ordering Guide

AB1-3326
PQ7-C100XL 3.5" QSEVEN Carrier Board

AB1-3667
PQ7-C100XL-CAN 3.5" QSEVEN Carrier Board with CAN Bus

Quote & Request Sales Request or Technical Request
  • Specifications are subject to change without notice.
  • Pentium® 4, Pentium® III, Pentium® II and Celeron® are registered trademarks of Intel® Corporation.
  • Xeon™ is a trademark of Intel® Corporation.
  • Other trademarks, logos, brands and company names are the property of their respective owners.
