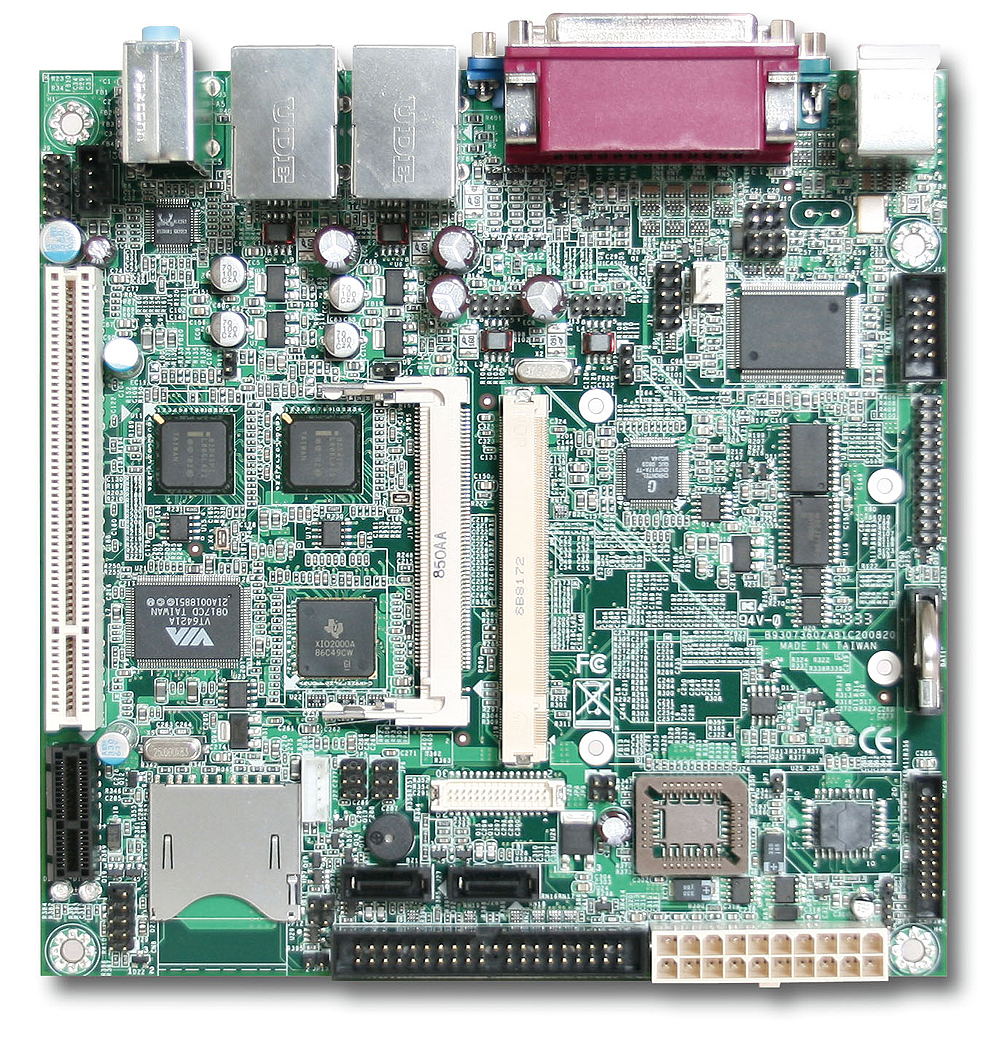

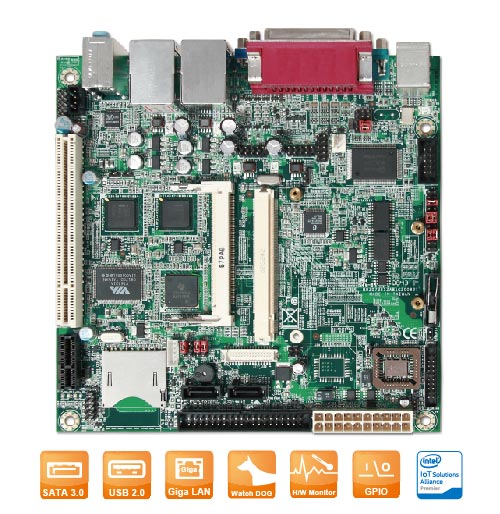

PQ7-C200

Mini-ITX Form Factor Carrier Board for Qseven Module with Dual Displays and Two GbE


Portwell?s PQ7-C200 is designed with Qseven 230pin card edge MXM connecter, and support Portwell?s Qseven modules for initial evaluation testing on PCI-E, Mini PCI-E, VGA/LVDS, SATA, LAN, AUDIO, SDIO, LPC function, etc.

PQ7-C200 offers PCI signal for PCI expansion demand, also simultaneously supports IDE and SATA ports. Furthermore, Portwell can provide carrier board design guides for your own carrier board development reference to shorten developing stage.



Features
  • Qseven carrier board is compatible with Portwell Qseven modules
  • Mini-ITX form factor for embedded applications
  • Dual PCI interface Gigabit Ethernet ports
  • One IDE channel and two SATA 150 Ports
  • One PCI and PCIE x1 expansion slot via riser card

Ordering Guide

AB1-3213
PQ7-C200.Mini-ITX QSeven Carrier Board

Quote & Request Sales Request or Technical Request
  • Specifications are subject to change without notice.
  • Pentium® 4, Pentium® III, Pentium® II and Celeron® are registered trademarks of Intel® Corporation.
  • Xeon™ is a trademark of Intel® Corporation.
  • Other trademarks, logos, brands and company names are the property of their respective owners.
