PQ7-M102XL

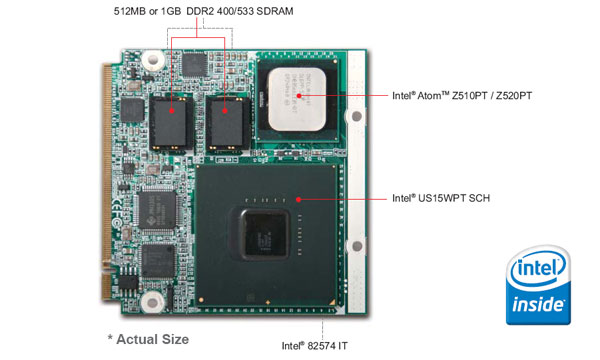

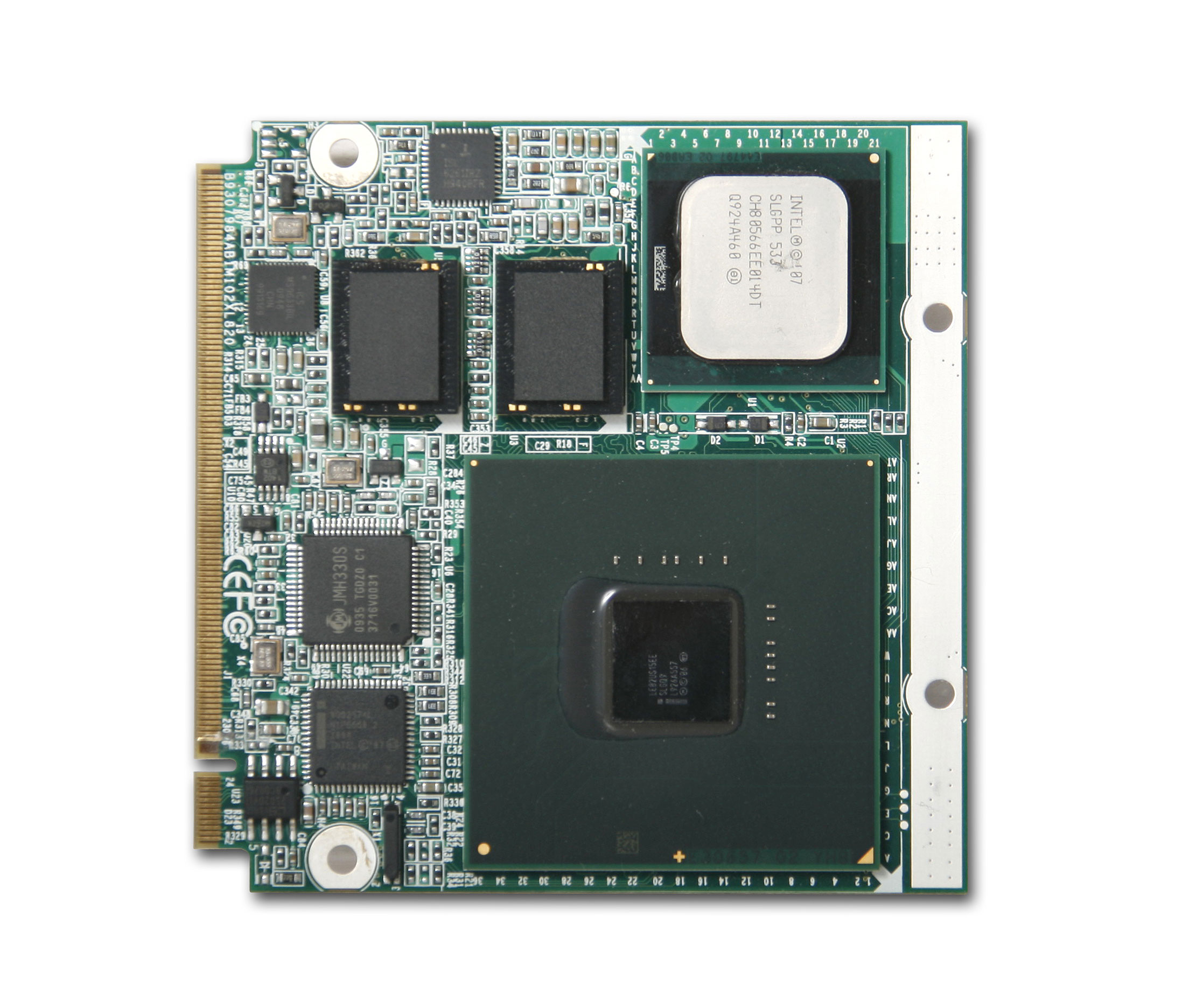

Qseven, Intel® Embedded Menlow-XL Platform with DDR2 SDRAM,LVDS Display, Gigabit Ethernet, SDVO and SATA


Portwell PQ7-M102XL is designed with Intel's ultra low power US15WPT chipset which features less then 5W overall power consumption and -40~85 degree wide temperature support. It is suitable for intelligent grid technology applications to control and monitor smart meter and to integrate the electricity from wind and solar power for more efficient usage of energy to the country.


Features
  • Atom™ Z510PT (1.1GHz) or Z520PT (1.33GHz)
  • Intel® US15WPT integrated GMA 500 Graphic, full hardware acceleration of H.264, MPEG2, VC1 and WMV9 is supported
  • Support Two SATA Ports from Qseven Golden Finger
  • Ultra Low CPU and SCH TDP (Under 5W) for fan-less application
  • Internal LVDS and SDVO interface for dual independent display
  • On board 512MB DDR2 supported
  • 4Mbit flash ROM for easy BIOS upgrade and video BIOS for DFP

Ordering Guide

AB1-3310
PQ7-M102XL-1100-0512

AB1-3311
PQ7-M102XL-1330-0512

Quote & Request Sales Request or Technical Request
  • Specifications are subject to change without notice.
  • Pentium® 4, Pentium® III, Pentium® II and Celeron® are registered trademarks of Intel® Corporation.
  • Xeon™ is a trademark of Intel® Corporation.
  • Other trademarks, logos, brands and company names are the property of their respective owners.
