Products Industrial Computer Single Board Computer PICMG 1.0 ROBO-8776VG2

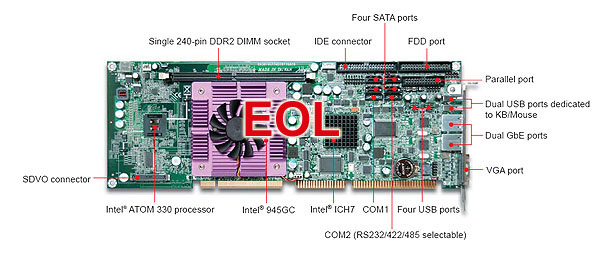

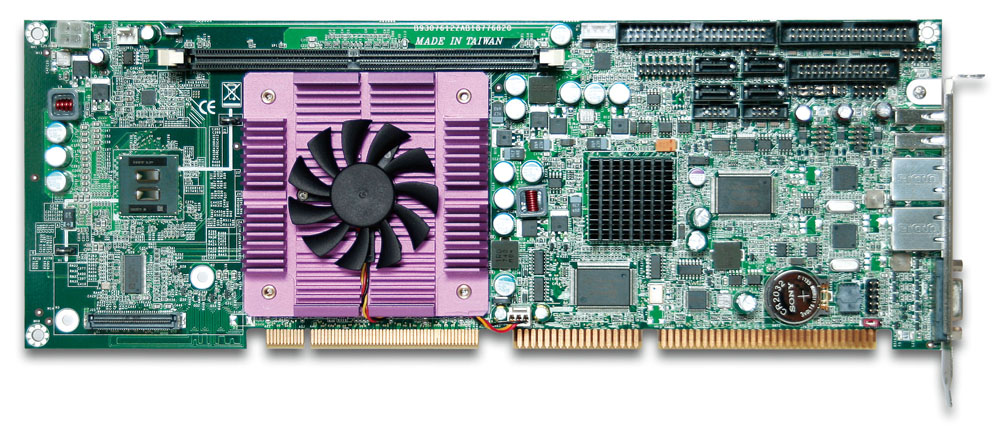

ROBO-8776VG2 45nm Intel® ATOM 330 1.6GHz Dual Core processor based PICMG 1.0 Single Board Computer with DDR2 SDRAM, VGA and Dual Gigabit Ethernet     Ordering Guide Larger Image(s) Download Catalog (PDF)   FEATURES On-Board 45nm Intel® ATOM 330 1.6GHz Dual Core processor generates only TDP 8W for low heat solution Ideal replacement in terms of cost, functionality and performance Support VGA display and flexible SDVO connector for other types display by project Rich I/O connections such as IDE, FDD, Gigabit Ethernet, serial ports, parallel port, USB 2.0,and SATA ports ORDERING GUIDE Standard ROBO-8776VG2 45nm Intel® ATOM 330 1.6GHz Dual Core processor based PICMG 1.0 SBC with DDR2 SDRAM, VGA, and Dual Gigabit Ethernet Optional PA-M5A Audio Kit PS/2 Keyboard/Mouse Cable with Bracket PS/2 keyboard/mouse connectors on bracket DVI output card DVI output card via board to board SDVO connector

Quote & Request

• Specifications are subject to change without notice.
• Pentium^® 4, Pentium^® III, Pentium^® II and Celeron^® are registered trademarks of Intel^® Corporation.
• Xeon™ is a trademark of Intel^® Corporation.
• Other trademarks, logos, brands and company names are the property of their respective owners.
