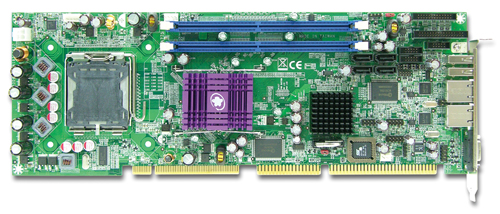

Intel® Core™ 2 Duo processor based on PICMG SBC with DDR2 SDRAM, VGA, Dual Gigabit Ethernet, Audio and USB
ROBO-8777VG2A adopts the Intel® Q965, ICH8 chipset and Intel® Core™ 2 Duo technologies. It supports DDR2 memory and two Gigabit Ethernet. It's suitable for Digital Signage, Kiosk, and Multimedia applications.

  • Supports Intel® Core™ 2 Duo processor that generates a maximum 65W TDP. Lower TDP than socket 478 Pentium® 4 processor makes the vertical mount slot board more reliable
  • Low profile processor cooler improves stability and reliability of whole system
  • More features, such as EM64T, EIST, XD & VT, can be easily applied to system by changing processor
  • Integrated Intel® GMA 3000 graphics engine built with high grade display capability
  • Lockable cable-latched notches of SATA connector secure connection in vibration condition
  • Supports ISA expansion

Processor Intel® Core™ 2 Duo/ Pentium® D/Pentium® 4/ Celeron® D
Chipset Intel® Q965+ICH8
BIOS Award
Memory 2x DDR2 DIMM up to 4GB
Storage Devices 4x SATA
1x FDD
Expansion Interface 4x PCI slots
1x ISA
Audio Realtek ALC 262 HD Audio codec
Ethernet 2x GbE
Serial Port 1x RS232
1x RS232/422/485
USB 6x USB 2.0
GPIO 8-bit
Others 1x Parallel
Display Interface VGA
Dimension 338.5 x 122mm

Ordering Guide

PICMG 1.0(PCI/ISA).Socket T.P4.SBC.w/VGA/ Dual GbE/Audio

Packing List

  • B6900074 FDD Cable
  • B6901990 SATA II cable
  • B690003S Cable Assy 4F-4F
  • B8981980 PICMG SBC Handling and Installation Notice
  • B3751110 Installation CD

  • AB9-2066 PA-M1AU Multiple Media kit
  • B6902010 PS/2 Keyboard/Mouse Cable with bracket
  • B7869400 One COM Port Cabel
  • B6900643 PRN cable
  • B6902000 dual serial port cable with bracket
  • B6901090 USB cable
  • B6902300 Audio cable with line in/out/Mic in
Quote & Request Sales Request or Technical Request
  • Specifications are subject to change without notice.
  • Pentium® 4, Pentium® III, Pentium® II and Celeron® are registered trademarks of Intel® Corporation.
  • Xeon™ is a trademark of Intel® Corporation.
  • Other trademarks, logos, brands and company names are the property of their respective owners.
