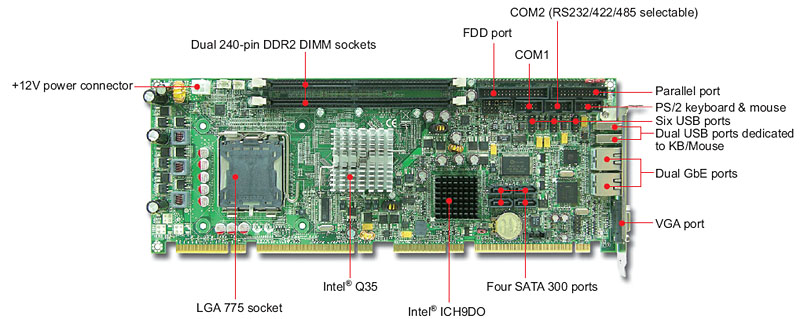

ROBO-8913VG2AR

Intel® Core™ 2 Quad processor based on PICMG 1.3 SHB with DDR2 SDRAM, VGA, Dual Gigabit Ethernet, Audio and USB


ROBO-8913VG2AR is built with the Intel® Q35, ICH9DO chipset up to Core™ 2 Quad processors. It supports DDR2 memory, and two Intel® Gigabit Ethernet. It's an ideal solution for Image Processing and Industrial Automation applications.


Features
  • Supports Intel® Core™ 2 Quad processor up to FSB 1333MHz
  • Low profile processor improves stability and reliability of whole system
  • Supports eSATA that can communicate with multiple drives via port multiplier
  • Lockable cable-latched notches of SATA connector secure connection in vibration condition
  • Embedded Intel® Active Management Technology (iAMT) remotely locates, repairs and protects networked computing assets using third-party management and security applications
  • System noise and heat are reduced through more intelligent fan speed control algorithms by integrated Intel® Quiet System Technology
  • Flexible design of four external PCI Express x1 could aggregate as one PCI Express x4 for storage device through backplane

Specifications
Processor Intel® Core™ 2 Quad/ Core™ 2 Duo/Celeron®
Chipset Intel® Q35+ICH9DO
BIOS AMI Core 8
Memory 2x DDR2 DIMM up to 4GB
Storage Devices 6x SATA
1x FDD
Expansion Interface 4x PCI slots
1x PCIe x16 slot
4x PCIe x1 slots
Audio Realtek ALC 262 HD Audio codec
Ethernet 2x GbE
Serial Port 1x RS232
1x RS232/422/485
USB 12x USB 2.0
GPIO 8-bit
Others 1x Parallel
PS/2 KB&MS
IrDA 1.0
Display Interface VGA
Dimension 338.5 x 126.39mm

Ordering Guide

AB1-3072
ROBO-8913VG2AR
PICMG 1.3(PCI-E+PCI).Socket T.Core 2 Duo. SBC.w/VGA/Dual GbE/Audio

Packing List

Standard
  • B690021S cable kit for FDD+PRN with bracket
  • B6900270 dual head COM port cable with bracket
  • B6901990 SATA II cable
  • B8981980 PICMG SBC Handling and Installation Notice
  • B3751110 Installation CD

Optional
  • AB9-2066 PA-M1AU Multiple Media kit
  • B6901442 PS/2 Keyboard/Mouse Cable with bracket
  • B6902230 USB port cable with bracket
Quote & Request Sales Request or Technical Request
  • Specifications are subject to change without notice.
  • Pentium® 4, Pentium® III, Pentium® II and Celeron® are registered trademarks of Intel® Corporation.
  • Xeon™ is a trademark of Intel® Corporation.
  • Other trademarks, logos, brands and company names are the property of their respective owners.
