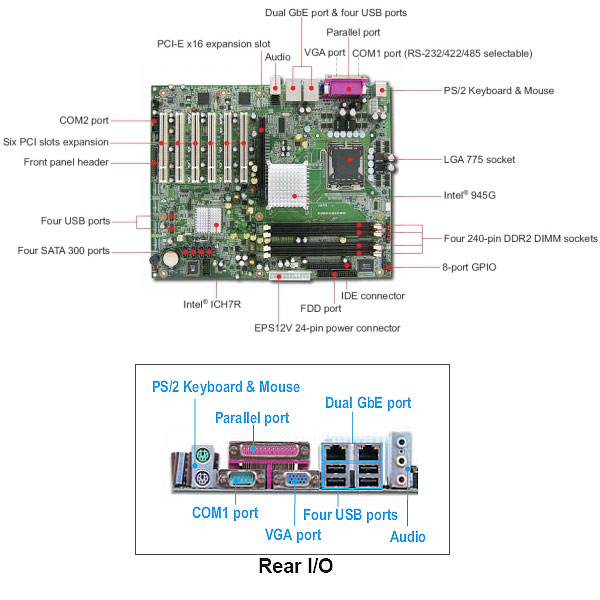

RUBY-9715VG2AR

Intel® Core™2 Duo processor based ATX Industrial Mainboard with DDR2 SDRAM, VGA, Dual Gigabit Ethernet, Audio and USB



Features
  • Industrial mainboard in ATX form factor supports Intel® Pentium® 4 processor with Hyper-Threading technology,Core™ 2Duo, Pentium® D and Celeron® D processor in LGA-775 package up to 1066MHz front side bus
  • Support DDR2 667/533 SDRAM up to 4GB in dual channel architecture
  • Intel® new GMCH integrated graphics engine increases 9% ~ 25% performance of GMA 900 of Intel® 915GV
  • One PCI Express x16 slot features high-end graphics card connection interface or dual independent displays with ADD2+ media card that provides TV tuner, video capture in and DVI, TV-out
  • Six 32-bit PCI expansion slots for most industrial I/O cards
  • Dual Gigabit Ethernet ports based on PCI Express x1 interface without sharing bandwidth of PCI expansion bus
  • Four ports for SATA RAID controller providing benefits of Intel Matrix Storage Technology RAID 0, 1, 5, 10

Ordering Guide

RUBY-9715VG2AR
Intel® Core™2 Duo processor based ATX Industrial Mainboard with DDR2 SDRAM, VGA, Dual Gigabit Ethernet, Audio and USB

Quote & Request Sales Request or Technical Request
  • Specifications are subject to change without notice.
  • Pentium® 4, Pentium® III, Pentium® II and Celeron® are registered trademarks of Intel® Corporation.
  • Xeon™ is a trademark of Intel® Corporation.
  • Other trademarks, logos, brands and company names are the property of their respective owners.
