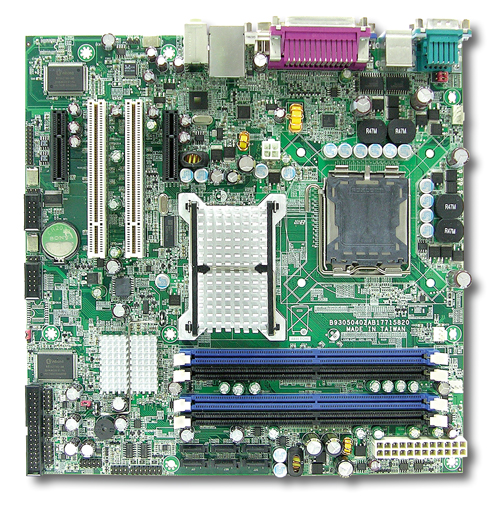

RUBY-9717VGAR

Intel® Core™ 2 Quad processor based Micro-ATX Industrial Mainboard with onboard DVI/VGA Dual-display, DDR2 SDRAM, Gigabit Ethernet, Audio and USB


Supported by the Intel® Q965, the RUBY- 9717VGAR is based on industrial µATX motherboard provides multiple I/O connectors and applies high performance in the Medical ultrasound equipment, Data Communications, Multimedia, POS and Gaming markets.


Features
  • Industrial mainboard with a µATX form factor that supports all Intel® mainstream desk top processors - Core™ 2 Quad, Core™ 2 Duo, Pentium® D, Pentium® 4, Celeron® D processor in LGA775 package
  • Onboard dual independent display: VGA and DVI-D
  • One ADD2 graphics slot for ADD2 card
  • One PCI Express x4 slot and two 32-bit PCI expansion slots
  • Six 32-bit PCI expansion slots for most industrial I/O cards
  • Six SATA II ports support Intel® Matrix Storage Technology with RAID 0,1,5,10

Specifications
Processor Intel® Core™ 2 Quad/ Core™ 2 Duo/Pentium® D/ Pentium® 4/Celeron® D
Chipset Intel® Q965+ICH8D
BIOS Award
Memory 4x DDR2 DIMM up to 8GB
Storage Devices 6x SATA
1x FDD
Expansion Interface 2x PCI slots
1x PCIe x4 slot
1x ADD2 slot
Audio Realtek ALC262-VC2 HD Audio codec
Ethernet 1x GbE
Serial Port 3x RS232
1x RS232/422/485
USB 10x USB 2.0
GPIO 12-bit
Others 1x Parallel
PS/2 KB&MS
Display Interface VGA/DVI-D
Dimension 243.8 x 243.8mm

Ordering Guide

AB1-3055
RUBY-9717VGAR
Micro-ATX.LGA775.Single P4.w/ VGA/GbE/Audio/RAID

Packing List

  • One RUBY-9717VGAR Micro-ATX Industrial Main Board
  • One SATA II Cable
  • One Installation CD
  • One I/O shield

Quote & Request Sales Request or Technical Request
  • Specifications are subject to change without notice.
  • Pentium® 4, Pentium® III, Pentium® II and Celeron® are registered trademarks of Intel® Corporation.
  • Xeon™ is a trademark of Intel® Corporation.
  • Other trademarks, logos, brands and company names are the property of their respective owners.
