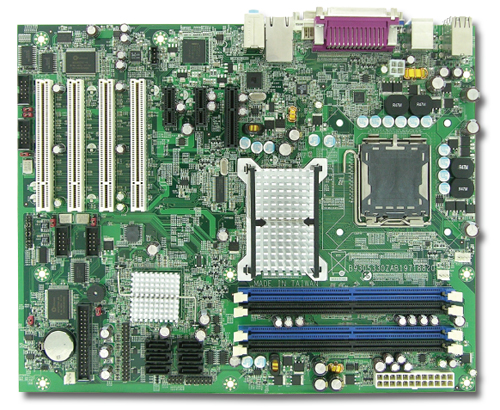

RUBY-9718VG2AR

Leading Desktop Intel® 6th Skylake-S processor ATX with DDR4 SDRAM, Triple Displays, Two GbE LAN ports, Six COM Ports


RUBY-D718VG2AR is based on Intel® Q170 chipset and desktop processor sku like Core™ i7 and i5. Built with flexible PCI express expansion and bifurcation feature, it can support two I/O interface cards and can also suitable for Medical, Industrial Automation, and Digital Signage applications.


Features
  • Core™ 2 Quad, Core™ 2 Duo, Pentium® D,Pentium® 4, Celeron® D processor in LGA775package
  • Benefits such as Hyper-Threading, EM64T, dual-core, EIST, XD & VT of processor canbe easily applied to system by changingprocessor
  • Onboard dual independent display: VGA and DVI-D
  • One ADD2 graphics slot for ADD2 card
  • Two PCI Express x1 slots and four 32-bit PCIexpansion slot
  • Six SATA II ports, Intel® Matrix StorageTechnology with RAID 0,1,5,10 support

Specifications
Processor Intel® Core™ 2 Quad/ Core™ 2 Duo/Pentium® D/ Pentium® 4/Celeron® D
Chipset Intel® Q965+ICH
BIOS Award
Memory 4x DDR2 DIMM up to 8GB
Storage Devices 6x SATA
1x FDD
Expansion Interface 4x PCI slots
2x PCIe x1 slots
1x ADD2 slot
Audio Realtek ALC262-VC2 HD Audio codec
Ethernet 2x GbE
Serial Port 3x RS232
1x RS232/422/485
USB 10x USB 2.0
GPIO 12-bit
Others 1x Parallel
PS/2 KB&MS
Display Interface VGA/DVI-D
Dimension 304.8 x 243.8mm

Ordering Guide

AB1-3064
RUBY-9718VG2AR

ATX.LGA775.Single P4.SBC.w/
DVI/CRT VGA/Dual Giga LAN

Packing List

  • One RUBY-9718VG2AR ATX Industrial Main Board
  • One SATA II Cable
  • One Installation CD
  • One I/O shield

Quote & Request Sales Request or Technical Request
  • Specifications are subject to change without notice.
  • Pentium® 4, Pentium® III, Pentium® II and Celeron® are registered trademarks of Intel® Corporation.
  • Xeon™ is a trademark of Intel® Corporation.
  • Other trademarks, logos, brands and company names are the property of their respective owners.
