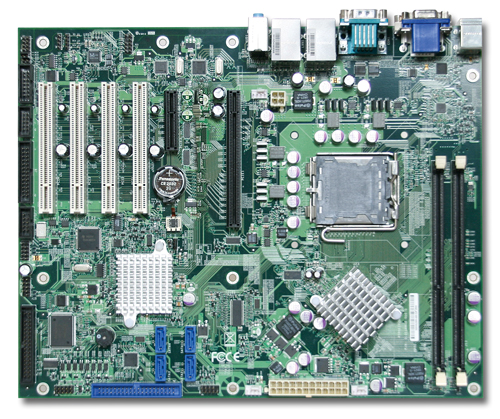

RUBY-9911

Leading Intel® Core™ 2 Quad/Core™ 2 Duo Processor based ATX motherboard with Dual Display, Dual Gigabit Ethernet, Four SATA Ports, Four COM Ports, and Eight USB Ports


The RUBY-9911 is based on the industrial ATX motherboard and can be used in applications such as Automation, Multimedia, Kiosk and industrial controls that require a variety of I/O connectors.


Features
  • Intel® Core™ 2 Quad/Core™ 2 Duo processor
  • Intel® Q45 Express and ICH10DO chipsets
  • Two 240-pin DIMM sockets support dual channel DDR3 SDRAM up to 4GB
  • Dual display: VGA/DVI-D, 3rd display via PCI or PCI-Express expansion slot
  • Four SATA ports and One IDE connector
  • Supports RAID 0,1,5,10 function
  • One PCI-Express x16, One PCI-Express x4 and Four PCI slots
  • TPM 1.2 and iAMT 5.0 supported

Specifications
Processor Intel® Core™ 2 Quad/ Core™ 2 Duo
Chipset Intel® Q45+ICH10DO
BIOS AMI Core 8
Memory 2x DDR3 DIMM up to 4GB
Storage Devices 4x SATA
1x IDE
1x FDD
Expansion Interface 4x PCI slots
1x PCIe x16 slot
1x PCIe x4 slot
Audio Realtek ALC888-GR HD Audio codec
Ethernet 2x GbE
Serial Port 3x RS232
1x RS232/422/485
USB 8x USB 2.0
GPIO 8-bit
Others 1x Parallel
PS/2 KB&MS
Display Interface VGA/ DVI-D
Dimension 304.8 x 243.8mm

Ordering Guide

AB1-3256
RUBY-9911VG2A
ATX.LGA775.SingleCore2Quad/ Duo.w/DVI-D/VGA/DualGbE/Audio

Packing List

  • One RUBY-9911 ATX Main Board
  • One LGA775 Cooler
  • One Installation CD

Quote & Request Sales Request or Technical Request
  • Specifications are subject to change without notice.
  • Pentium® 4, Pentium® III, Pentium® II and Celeron® are registered trademarks of Intel® Corporation.
  • Xeon™ is a trademark of Intel® Corporation.
  • Other trademarks, logos, brands and company names are the property of their respective owners.
