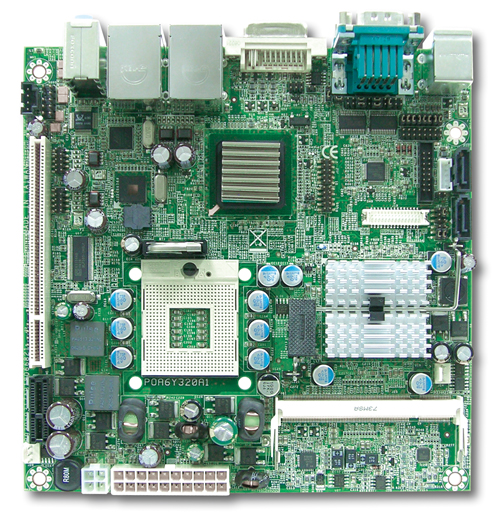

Leading Intel® Core™ 2 Duo processor based Mini-ITX Board with DDR2 SDRAM, Dual Displays, Two GbE LAN ports, Audio and USB
Based on the latest latest mobile Intel® GME965 chipset, the WADE-8066 takes advantage of Intel® Core™ 2 Duo technologies. The graphic media accelerator (GMA) X3100 provides both fast video response time and high quality images. With its display-enriched interface, the WADE-8066 can support various multimedia devices.

  • Intel® Core™ 2 Duo and Celeron® M processor
  • Intel® GME965 and ICH8ME chipset
  • Two 200-pin SODIMMs support dual channel DDR2 SDRAM up to 4GB
  • Dual Display :DVI-I/LVDS/TV-Out, 3rd Display via expansion slot
  • One PCI slot and one PCIe x1 slot with PCIe x4 signal

Processor Intel® Core™ 2 Duo/ Celeron® M
Chipset Intel® GME965 + ICH8ME
BIOS Award
Memory 2x DDR2 SODIMM up to 4GB
Storage Devices 2x SATA
1x CF
Expansion Interface 1x PCI slot
1x PCIe x1 slot
Audio Realtek ALC883-GR HD Audio codec
Ethernet 2x GbE
Serial Port 1x RS232
1x RS232/422/485
USB 8x USB 2.0
GPIO 8-bit
Others PS/2 KB&MS
Display Interface VGA/DVI/LVDS
Dimension 170 x 170mm

Ordering Guide

WADE-8066.Mini-ITX ESB.Intel Pentium M-Dual Core.w/DDR SDRAM/VGA/LVDS/Dual Display/Dual GbE/Audio

PEP-592R.2 Slots Riser Card for Right Expansion. One PCI and One PCI-E x4.For WADE-8066

PER-4210R.1 Slot Riser Card for Right Expansion. One PCI-E x4.For WADE-8066

Packing List

  • One WADE-8066 Mini-ITX Main Board
  • One Installation CD
  • One SATA Cable
  • One I/O shield
  • One CPU Fan

Quote & Request Sales Request or Technical Request
  • Specifications are subject to change without notice.
  • Pentium® 4, Pentium® III, Pentium® II and Celeron® are registered trademarks of Intel® Corporation.
  • Xeon™ is a trademark of Intel® Corporation.
  • Other trademarks, logos, brands and company names are the property of their respective owners.
