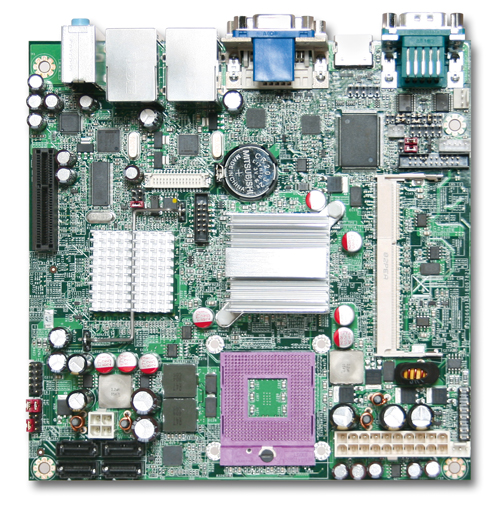

WADE-8067

Leading Intel® 45nm Core™ 2 Duo processor or Celeron® M processor based Mini-ITX with DDR3 SDRAM, HDMI, Dual Gigabit Ethernet, Audio and USB


Built with the latest mobile Intel® GM45 Express chipset, the WADE-8067 takes advantage of Intel® Core™ 2 Duo technologies which have high performance and excellent power management features. In addition, its display-enriched interface can support various multimedia devices. The WADE-8067 is an industrial-grade embedded Mini-ITX motherboard ideal for POS, Lottery, Medical, Gaming, DVR, Digital Signage and Kiosk applications.


Features
  • Intel® Core™ 2 Duo/Celeron® M processors
  • Intel® GM45 and ICH9M-E Chipset
  • Two SODIMMs support dual channel DDR3 SDRAM up to 8GB
  • Dual Display: VGA/DVI/HDMI/LVDS/TV-out, 3rd Display via PCI-Express graphic card
  • Support Intel® Active Management Technology 4.0
  • Integrated latest Trusted Platform Module (iTPM)

Specifications
Processor Intel® Core™ 2 Duo/ Celeron® M
Chipset Intel® GM45 + ICH9ME
BIOS AMI Core 8
Memory 2x DDR3 SODIMM up to 8GB
Storage Devices 4x SATA
Expansion Interface 1x PCIe x4 slot
Audio Realtek ALC262-VC2-GR HD Audio codec
Ethernet 2x GbE
Serial Port 1x RS232
1x RS232/422/485
USB 6x USB 2.0
GPIO 8-bit
Others 1x TV out
PS/2 KB&MS
Display Interface VGA/DVI/LVDS/HDMI
Dimension 170 x 170mm

Ordering Guide

AB1-3164
WADE-8067PE.Mini-ITX ESB.Socket Type.Intel Core 2 Duo(Penryn).w/VGA/DVI/HDMI/Dual GbE/Audio/ PCIEx1

AA1-3086
PEP-5A1X1.Slot Riser Card for Right Expansion.One PCI-E x4 Slot.For WADE-8067

Packing List

  • One WADE-8067 Mini-ITX Main Board
  • One Installation CD
  • One SATA Cable
  • One I/O shield
  • One CPU Fan

Quote & Request Sales Request or Technical Request
  • Specifications are subject to change without notice.
  • Pentium® 4, Pentium® III, Pentium® II and Celeron® are registered trademarks of Intel® Corporation.
  • Xeon™ is a trademark of Intel® Corporation.
  • Other trademarks, logos, brands and company names are the property of their respective owners.
