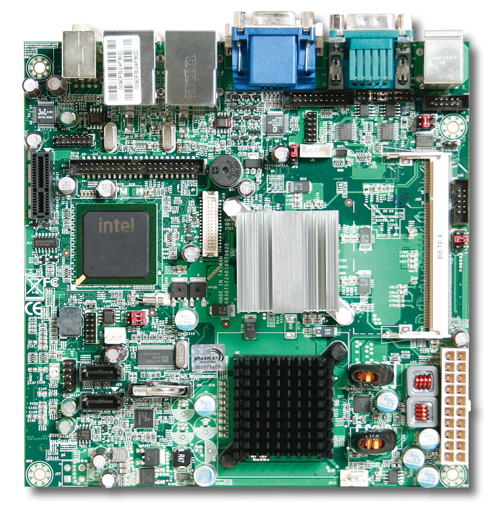

WADE-8070

Intel® Low Power Atom™ N270 1.6GHz processor based Mini-ITX Board with dual display, Gigabit Ethernet, Two SATA Ports, Four COM ports and Six USB Ports


Built with the Intel® mobile 945GSE chipset, WADE-8070 takes advantage of Intel® AtomTM N270 technologies. This low power, fanless WADE-8070 makes it most suitable for POS, Medical, Gaming and Digital Signage applications.


Features
  • Intel® Atom™ N270 1.6GHz processor
  • Intel® 945GSE and ICH7-M chipset
  • One 200-pin SODIMM supports single channel DDR2 SDRAM up to 2GB
  • Dual display: VGA/LVDS/DVI, 3rd display via PCI-Express x1 graphic card
  • One Mini-PCI and one PCI-Express x1 expansion slot
  • Two SATA, one CompactFlash socket & one IDE connector

Specifications
Processor Intel® Atom™ N270
Chipset Intel® 945GSE + ICH7M
BIOS Award
Memory 1x DDR2 SODIMM up to 2GB
Storage Devices 2x SATA
1x CF
1x IDE
Expansion Interface 1x PCIe x1 slot
1x Mini PCI socket
Audio Realtek ALC662-GR HD Audio codec
Ethernet 2x GbE
Serial Port 3x RS232
1x RS232/422/485
USB 6x USB 2.0
GPIO 8-bit
Others PS/2 KB&MS
Display Interface VGA/DVI/LVDS
Dimension 170 x 170mm

Ordering Guide

AB1-3242
WADE-8070.Mini-ITX ESB.945GSE+N270 processor.w/DDR2 SDRAM/VGA/LVDS/Dual GbE Ethernet/Audio

AA1-3089Z
PEP-5B1X1. 1 Slot Riser Card for Right Expansion. One PCI-E x1 Slot.For WADE-8070/8071

Packing List

  • One WADE-8070 Mini-ITX Main Board
  • One Installation CD
  • One SATA Cable
  • One COM Cable
  • One USB Cable
  • One IDE Cable
  • One I/O shield

Quote & Request Sales Request or Technical Request
  • Specifications are subject to change without notice.
  • Pentium® 4, Pentium® III, Pentium® II and Celeron® are registered trademarks of Intel® Corporation.
  • Xeon™ is a trademark of Intel® Corporation.
  • Other trademarks, logos, brands and company names are the property of their respective owners.
