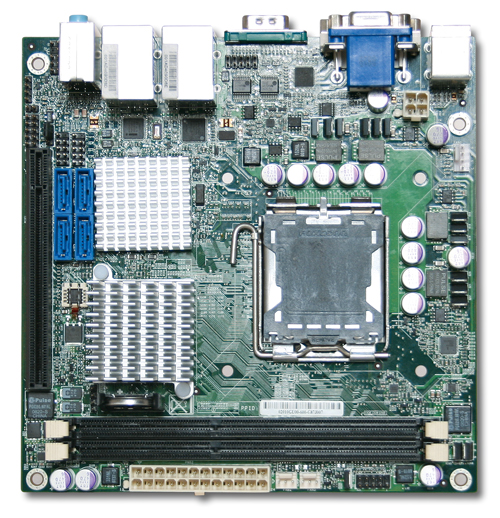

WADE-8180

Leading Intel® Core™ 2 Quad/Core™ 2 Duo processor based Mini-ITX embedded board with Dual Display, Dual Gigabit Ethernet, SATA, COM and USB


WADE-8180 offers the availability of an extra graphics card which enables powerful graphic processing ability. In addition, the VGA and DVI-D dual video outputs can drive two displays simultaneously which is ideal for gaming applications. With dual GbE LAN, four SATA, dual COM and eight USB I/O functions, WADE-8180 is the best solution for multiple applications such as Automation, Multi-media and KIOSK.


Features
  • Intel® Core™ 2 Quad/Core™ 2 Duo processor Intel® Q45 Express and ICH10DO chipset
  • Two 240-pin DIMM sockets support dual channel DDR3 SDRAM up to 4GB
  • Dual display: VGA/DVI-D, 3rd display via PCI-Express x16 slot
  • Four SATA ports
  • Two GbE LAN ports and One PCIe x16 slot
  • RAID 0,1,5,10
  • TPM 1.2 and iAMT 5.0 supported

Specifications
Processor Intel® Core™ 2 Quad/ Core™ 2 Duo
Chipset Intel® Q45+ICH10DO
BIOS AMI Core 8
Memory 2x DDR3 DIMM up to 4GB
Storage Devices 4x SATA
Expansion Interface 1x PCIe x16 slot
Audio Realtek ALC888 HD Audio codec
Ethernet 2x GbE
Serial Port 2x RS232
USB 8x USB 2.0
GPIO 8-bit
Others PS/2 KB&MS
Display Interface VGA/DVI
Dimension 170 x 170mm

Ordering Guide

AB1-3255
WADE-8180
Mini-ITX ESB. Intel Core 2 Quad/ Core 2 Duo. w/DDR3 SDRAM /VGA/DVI-D/Dual GbE/Audio

AA1-3052
PER-4410R
PCI-E x 16 to PCI-E x 16 Riser Card

Packing List

  • One WADE-8180 Mini-ITX Main Board
  • One Installation CD
  • One SATA Cable
  • One I/O shield
  • One USB Cable
  • CPU Fan

Quote & Request Sales Request or Technical Request
  • Specifications are subject to change without notice.
  • Pentium® 4, Pentium® III, Pentium® II and Celeron® are registered trademarks of Intel® Corporation.
  • Xeon™ is a trademark of Intel® Corporation.
  • Other trademarks, logos, brands and company names are the property of their respective owners.
