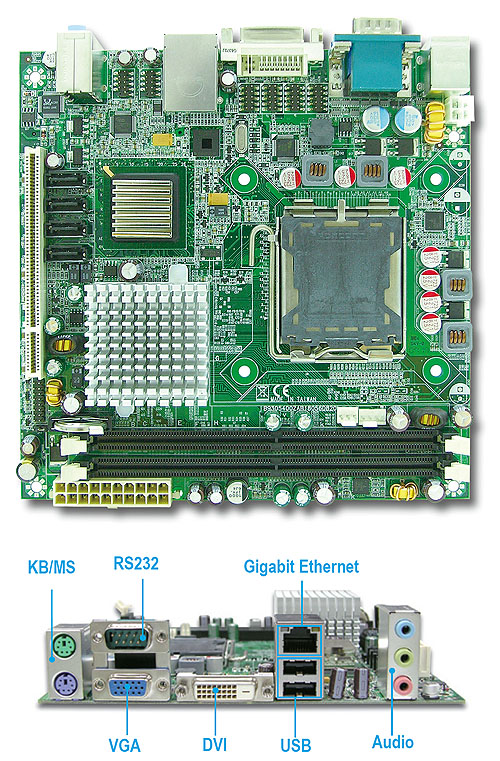

WADE-8556	Leading Intel^® Core™ 2 Quad processor based Mini-ITX Board with Dual Displays and One GbE



	Ordering Guide Larger Image(s)	Download Datasheet (PDF)

WADE-8556 is an advanced mini-ITX embedded system board (ESB) that takes advantage of Intel^® Core™ 2 Quad technologies. With its Mini- PCI slot, WADE-8556 offers the availability of an extra wireless LAN card which is suitable for Kiosk application. VGA & DVI dual video output can drive two displays simultaneously, especially suitable for Digital Signage usage. The expansion slots, based on PCI technologies and support up to two PCI slots, which provide the highly flexibility necessary for functional expansion.

FEATURES

Intel^® Core™ 2 Quad processors
Intel^® Q965 GMCH Chipset
Dual Display by VGA/DVI
One GbE LAN ports, one PCI and one Mini-PCI slot
Max. four COM and six USB 2.0 ports
RAID 0/1/5/10

ORDERING GUIDE

Standard

WADE-8556

Intel^® Core™ 2 Quad / Core™ 2 Duo and Pentium^® 4 / Celeron^® D processors Main Board with VGA, Audio, GbE LANs, 6 USB 2.0

EZCool

Compact 1U active heatsink suitable for Intel^® Core™ 2 Duo processor (blow 65W)

PEP-581R/582R

One/Two slots PCI riser card

B6901960

1 port COM cable with bracket

B6901970

2 ports USB cable with bracket

PEP-572L

Two slots PCI riser card(Cable type)
