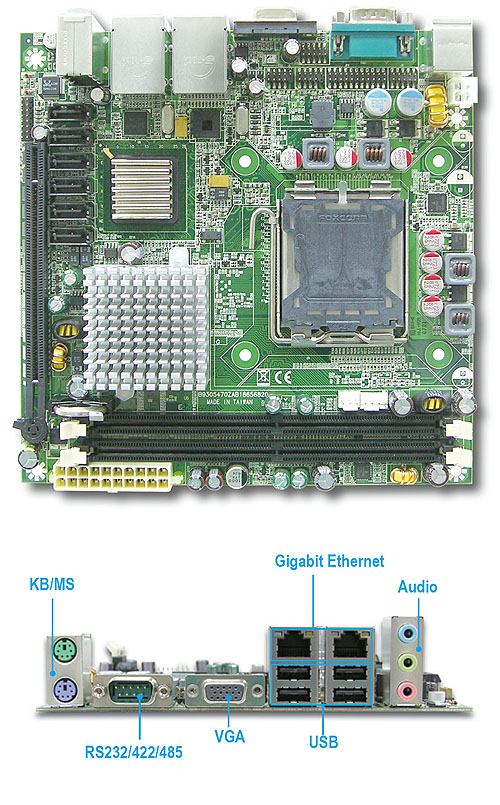

WADE-8656

Leading Intel® Core™ 2 Quad processor based Mini-ITX Board with PCIe expansion and Two GbE


WADE-8656 is an advanced mini-ITX embedded system board that takes advantage of Intel® Core™ 2 Quad technologies. With its PCIe x16 slot, WADE-8656 provides an extra graphic card which can offer powerful graphic processing ability suitable for gaming applications. Six SATA Ports enrich the system capacity, especially suitable for storage usage. Two Gigabit Ethernet ports provide high performance for networking transmission.


Features
  • Intel® Core™ 2 Quad processor
  • Intel® Q965 GMCH and ICH8DO chipset
  • Six SATA ports support
  • Two GbE LAN ports, one PCIe x16 slot
  • Max. two COM and eight USB 2.0 ports
  • RAID 0,1,5,10

Specifications
Processor Intel® Core™ 2 Quad / Core™ 2 Duo / Pentium® 4 / Celeron® D
Chipset Intel® Q965+ICH8DO
BIOS Award
Memory 2x DDR2 DIMM up to 4GB
Storage Devices 6x SATA
Expansion Interface 1x PCIe x16 slot
Audio Realtek ALC262-VC2-GR HD Audio codec
Ethernet 2x GbE
Serial Port 1x RS232
1x RS232/422/485
USB 8x USB 2.0
GPIO 8-bit
Others PS/2 KB&MS
Display Interface VGA
Dimension 170 x 170mm

Ordering Guide

AB1-3093
WADE-8656.Mini-ITX ESB.Intel P4-Dual Core.w/ DDR SDRAM/VGA/PCI-E expansion/Dual GbE/Audio

AA1-3052
PER-4410R.PCI-E x 16 to PCI-E x 16 Riser Card

Packing List

  • One WADE-8656 Mini-ITX Main Board
  • One Installation CD
  • One SATA Cable
  • One I/O shield
  • USB Cable
  • COM Cable

Quote & Request Sales Request or Technical Request
  • Specifications are subject to change without notice.
  • Pentium® 4, Pentium® III, Pentium® II and Celeron® are registered trademarks of Intel® Corporation.
  • Xeon™ is a trademark of Intel® Corporation.
  • Other trademarks, logos, brands and company names are the property of their respective owners.
