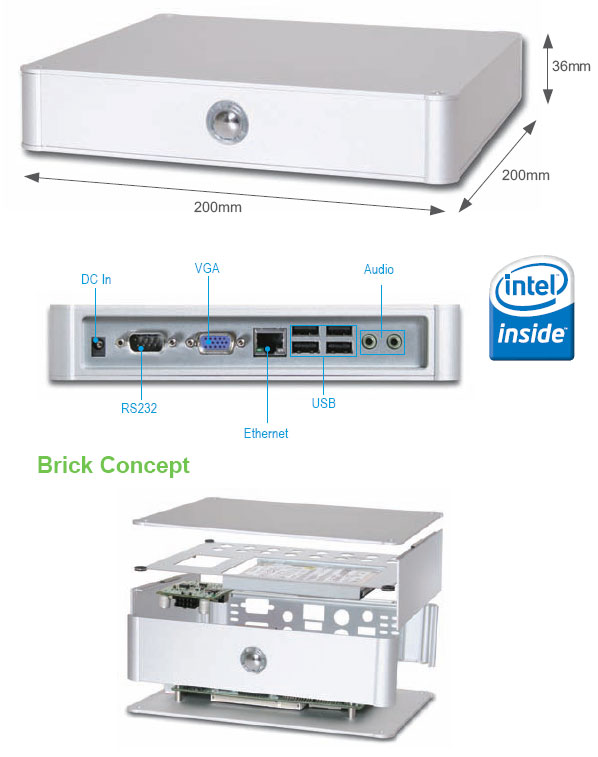

WEBS-3331

Embedded slim fan-less system with Intel® Atom™ N270 based MINI-ITX board



Features
  • Intel® Atom™ N270 1.6GHz processor
  • Intel® 945GSE+ICH70M platform
  • Analog Display: up to 2048 x 1536 (QXGA)
  • 36mm height supports thin client and DS application
  • Fan-less and optional cable-less design for easy maintence
  • Vesatile mounting solutions such as Wall and Panel mount (Optional)
  • Single DC 12V power input for easy system intergation
  • CF socket for storage
  • OP Vibration: 5Grms/5~500Hz
  • OP Shock: 50G, 11 msec.
  • IP40 Rating

Recommended Products

M/B
WADE-8071
WADE-8071

Ordering Guide

AS5-3289
(R).ATO.WEBS-3331.Mini-ITX System.WADE-8071

Quote & Request Sales Request or Technical Request
  • Specifications are subject to change without notice.
  • Pentium® 4, Pentium® III, Pentium® II and Celeron® are registered trademarks of Intel® Corporation.
  • Xeon™ is a trademark of Intel® Corporation.
  • Other trademarks, logos, brands and company names are the property of their respective owners.
