WEBS-4330

Embedded rugged fan-less system with Intel® Atom™ N270 based MINI-ITX board


For different industrial environment, like POS, small size server station or Mini-ITX system, PSU takes an important position. For those applications, WEBS-4330 not only can provide high efficiency but also high reliability


Features
  • Intel® Atom™ N270 1.6GHz processor and Intel 945GSE+ICH7-M chipset
  • Dual Display (VGA/DVI-D), Dual Gigabit Ethernet and Dual RS232
  • Analog Display: up to 2048*1536 (QXGA)
  • Optional GADIWA-R9271 (9~27V) for IVI application
  • Rugged and Fan-less design is ideal for Environment-critical application
  • External GPIO (4 in, 4 out) for digital control
  • Vesatile mounting solutions such as Wall and Panel mount (Optional)
  • Single DC 12~36V power input for easy system integration
  • Two interfaces of DC power input by adaptor plug or wiring type
  • OP Vibration: 5Grms/5~500Hz
  • OP Shock: 50G, 11 msec.
  • IP40 Rating

Specifications
M/B (Board Dimension) WADE-8170
System Chipset 945GSE+ICH7-M
CPU Atom™ N270 1.6GHz
BIOS Award
Memory DDR2/2GB
Storage CF, 2.5" SATA
Expansion N/A
Serial Port 2x RS232
Display VGA, DVI-D
USB 4
Audio Mic-in, Line-out, Line-in
Ethernet ALC8111C x 2
Operation Temperature -5 ~ 50°C
Storage Temperature -20 ~ 80°C
Relative Humidity 95%@40°C, non-condensing
Operation Vibration 5Grms/5~500Hz
Operation Shock 50G, 11msce.

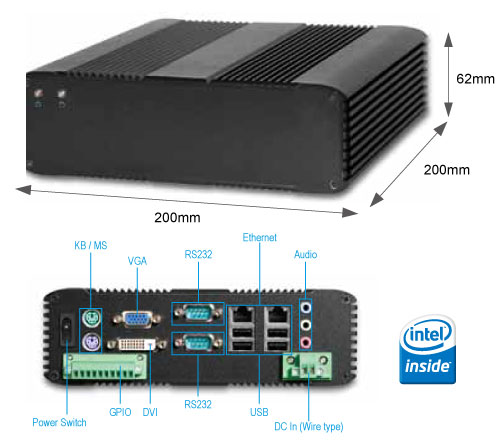

Dimension 200 x 200 x 62 mm
Weight 1.9 kg

Recommended Products

M/B
WADE-8170
WADE-8170
Adaptor
APH-3020-60W
APH-3020-60W

Ordering Guide

AS5-3293
(R).ATO.WEBS-4330.A.MINI-ITX System. WADE-8170. Wire-type

AS5-3294
(R).ATO.WEBS-4330.A.MINI-ITX System. WADE-8170. DC-In
