Compact System with Intel Atom® E3900 series for SD-WAN solution
ANS-2121/41/42 series builds on Intel Atom® processor E3900 family with up to four CPU cores. ANS series is a compact system with up to 10x GbE ports and PoE+ support, it is suitable for SDN (SD-WAN) application with 5G and IoT devices deployment.
| Model Name | ANS-2121 | ANS-2141 | ANS-2141P | ANS-2142 | ANS-2142P |
| System | |||||
| Processor | Intel Atom® E3930(2C) | Intel Atom® E3940(4C) | |||
| BIOS | AMI | ||||
| Memory | 1 x DDR3L 1866/1600/1333 MT/s ECC SO-DIMM up to 8GB | ||||
| Ethernet | 6x GbE RJ45 RTL8111H | 10x GbE RJ45 RTL8111H | |||
| Expansion | 1 x Half-size Mini-PCIe slot with PCIe and USB2.0 signals 1 x M.2 Key-B slot with PCIe and USB3.0 signals 2 x SIM slot |
||||
| Security | TPM 2.0 | ||||
| Storage | 1 x eMMC 16GB on-board 1 x SATA III port for 2.5″ HDD/SSD or SATADOM |
||||

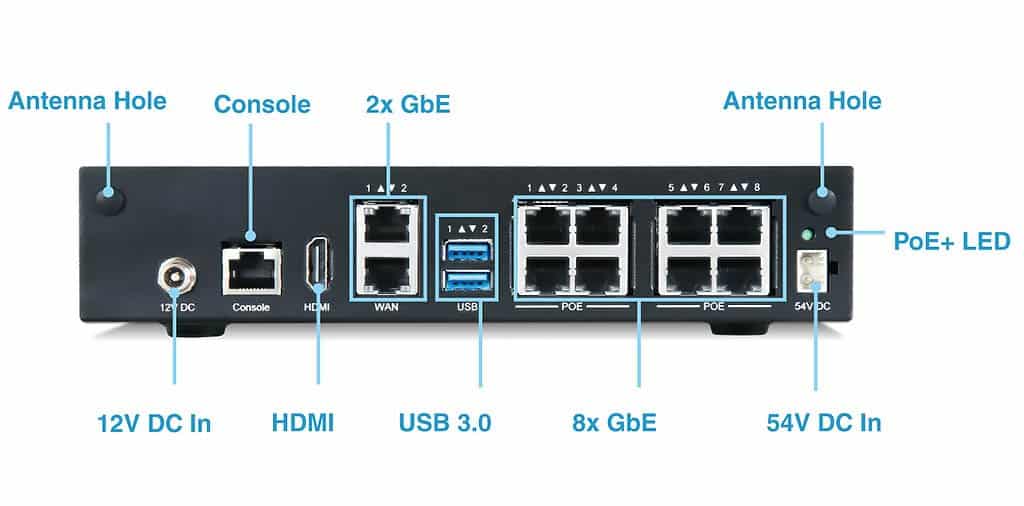

| I/O Interface | |||||
| Console | 1 x RJ45 | ||||
| USB | 2 x USB 3.0 | ||||
| Display | 1 x HDMI®, resolutiion up to 4Kx2K@60Hz | ||||
| Ethernet | 6 x RJ45 GbE | 10 x RJ45 GbE | |||
| PoE+ (Optional) | 4 x RJ45 GbE | 8 x RJ45 GbE | |||
| Antenna | 6 x SMA Antenna holes for WiFi or LTE/5G module | ||||
| Mechanical | |||||

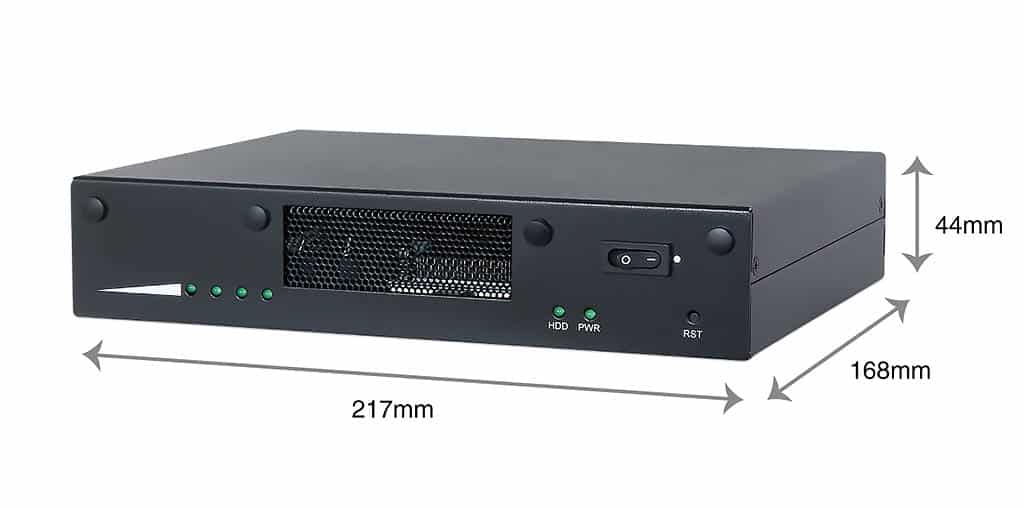

| Dimension | 217 (W) x 168 (D) x 44 (H) mm | ||||
| Weight | 3.5Kg | ||||
| System | 40W Power Adapter, 110-220V AC input, 12V DC output | ||||
| PoE+ | 270W Power Adapter, 90-264V AC input, 54V DC output (PoE+ Model only) | ||||
| Environment | |||||
| OS Temp. | 0°C ~ 40°C, 10 ~ 90% RH | ||||
| Storage Temp. | -10°C ~ 70°C, 10 ~ 95% RH@55°C | ||||
| Certification | CE/FCC Class A | ||||
| AS1-3311 | (R). ANS-2121. E3930 2-core. 16GB eMMC, 4x GbE LAN, 2x GbE WAN |
| AS1-3310 | (R). ANS-2141. E3930 2-core. 16GB eMMC, 8x GbE LAN, 2x GbE WAN |
| AS1-3309 | (R). ANS-2141P. E3930 2-core. 16GB eMMC, 8x GbE LAN, 2x GbE WAN, PoE+ (PoE Adapter is required) |
| AS1-3327 | (R). ANS-2122. E3940 2-Core. 16GB eMMC, 4xGbE LAN, 2xGbE WAN |
| AS1-3308 | (R). ANS-2142. E3940 4-core. 16GB eMMC, 8x GbE LAN, 2x GbE WAN |
| AS1-3307 | (R). ANS-2142P. E3940 4-core. 16GB eMMC, 8x GbE LAN, 2x GbE WAN, PoE+ (PoE Adapter is required) |
