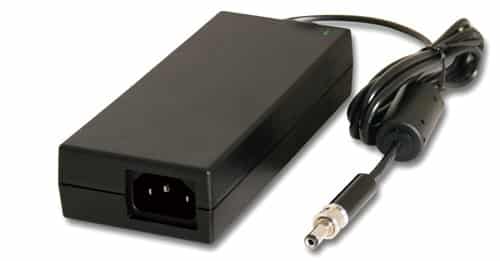

APH-3076

나사 전원 어댑터가 있는 40W DC 플러그

특징

  • Efficiency: Meet CEC (California Energy Commission)
  • Low Ripple& Noise, 120MV
  • Short Circuit Protection
  • Over Current Protection 5.5A(Max.)
  • Over Voltage Protection 22Vdc Max. (Upper Trip limit)
  • No Load Power Consumption ≤ 0.06W
  • DC plug with screw for securing

규격

AC Input Voltage 90V ~ 264V
DC Output Voltage 12V
Output Load 3.33A
Output Regulation 11.4V~12.6V
Efficiency >86%, 115V@60Hz, 230V@50Hz
MTBF 100,000 hrs@25°C
EMI & Safety Approval UL, cUL, TUV, CE, FCC, CB, CCC
Dimension 110(w) x 62(d) x 31.5(h) mm
