AREMO-2175PA

PICMG 백플레인용 19" 2U 산업용 랙 마운트 섀시

특징

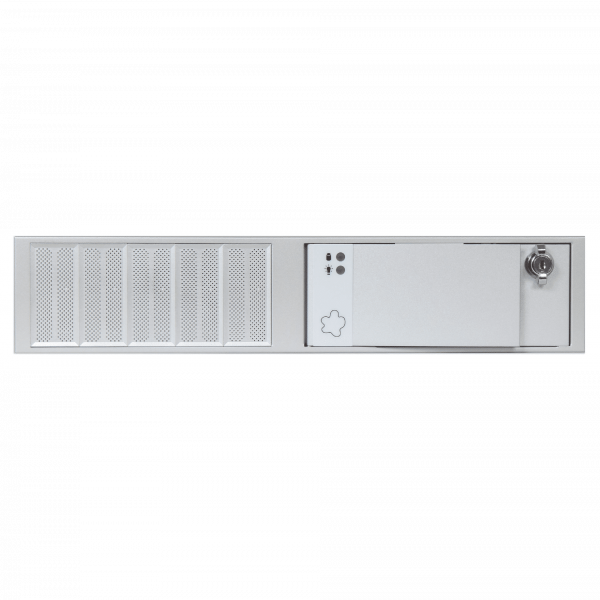

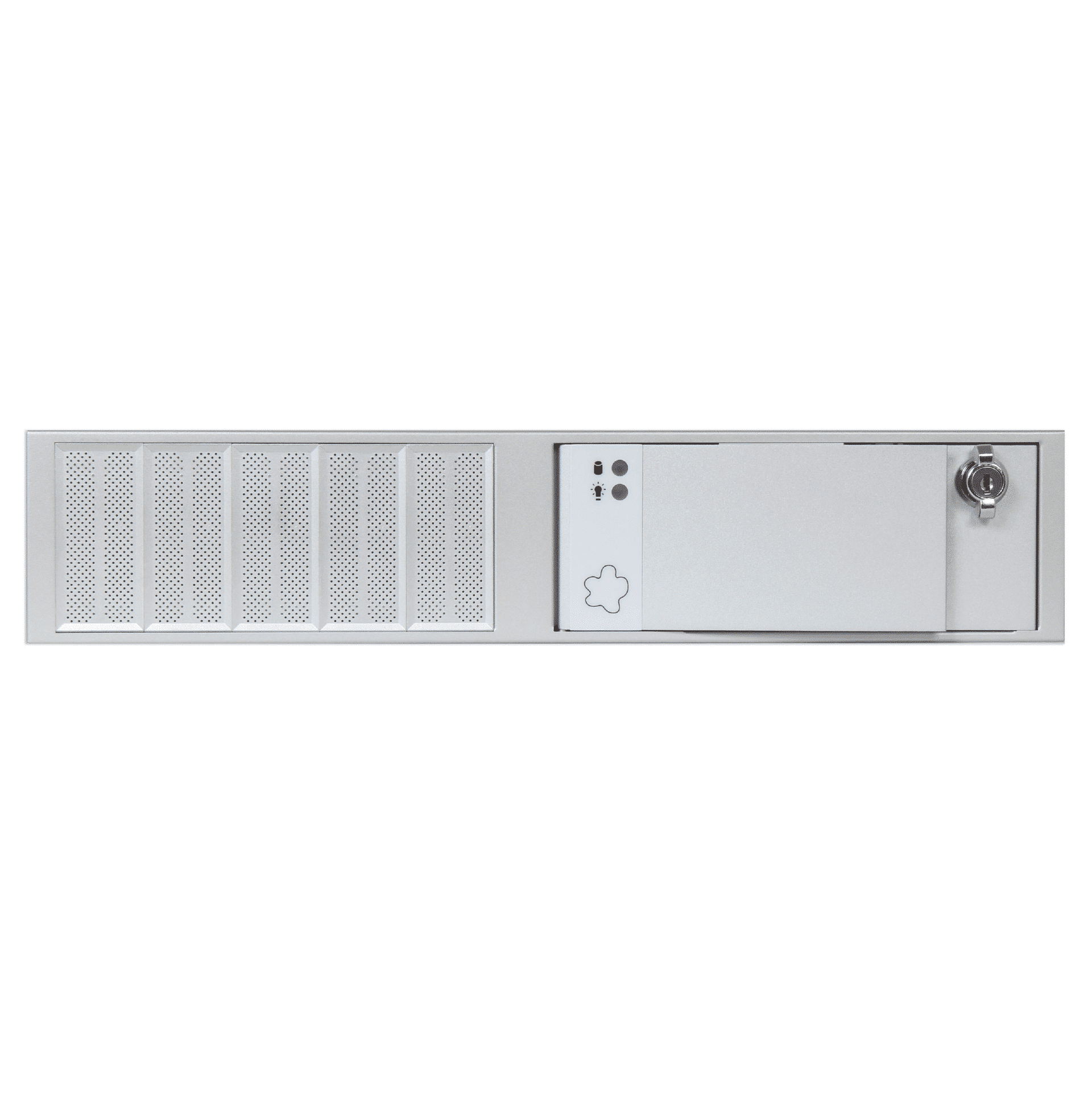

  • Two USB ports on the front panel

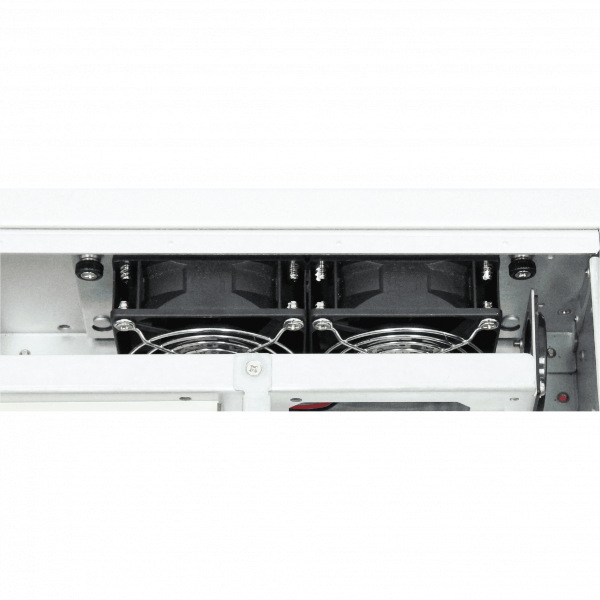

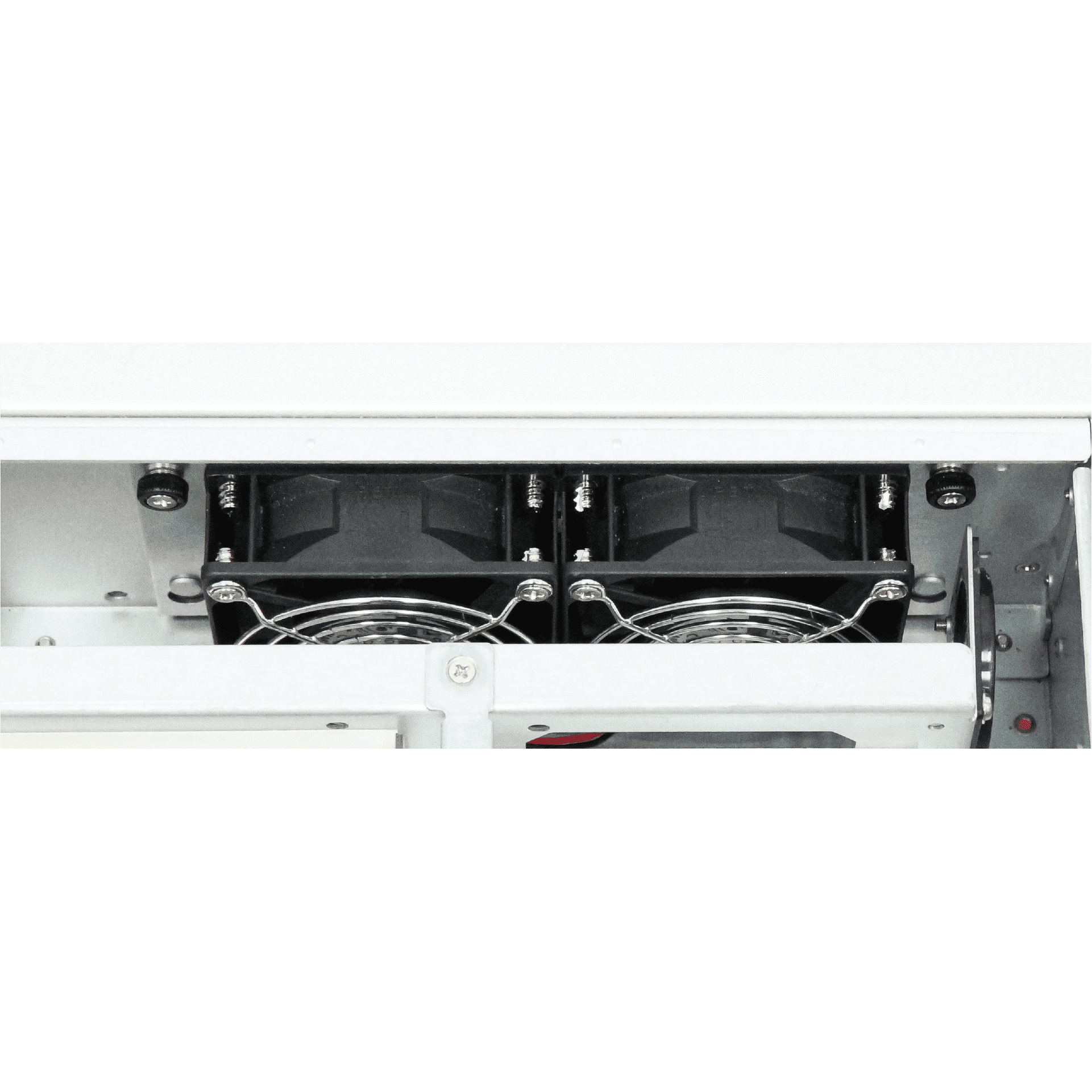

  • Two 7cm ball-bearing cooling fans for
  • better ventilation

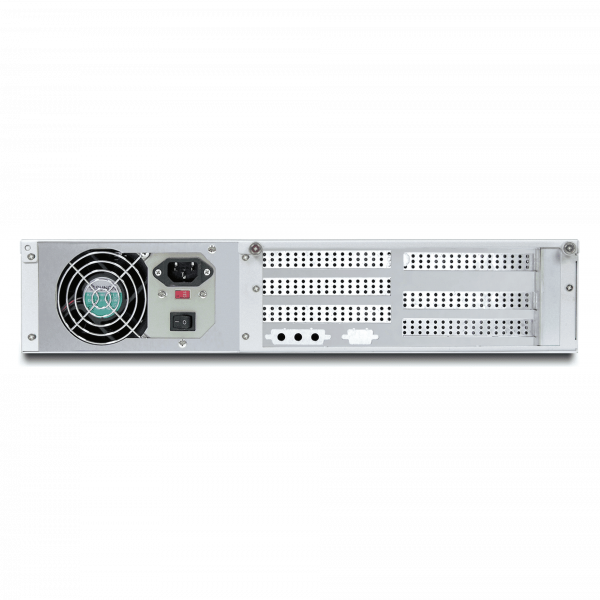

  • PS/2 or Mini-reduncant power supply installable
  • One power On/Off switch with protection cap and one touch free reset for secure access

설명

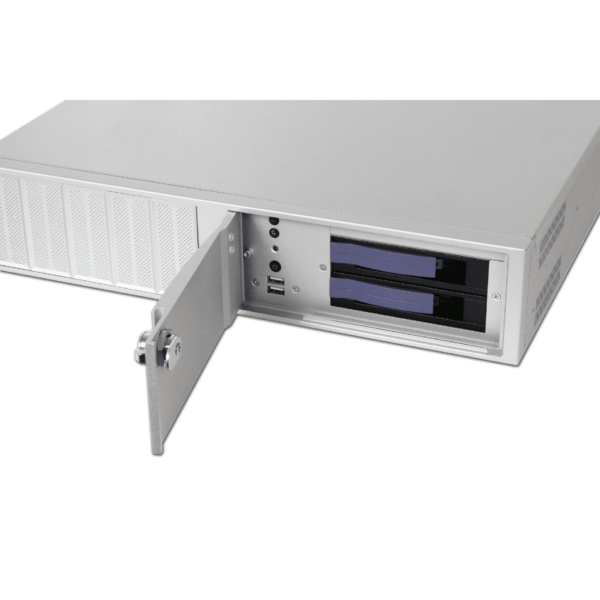

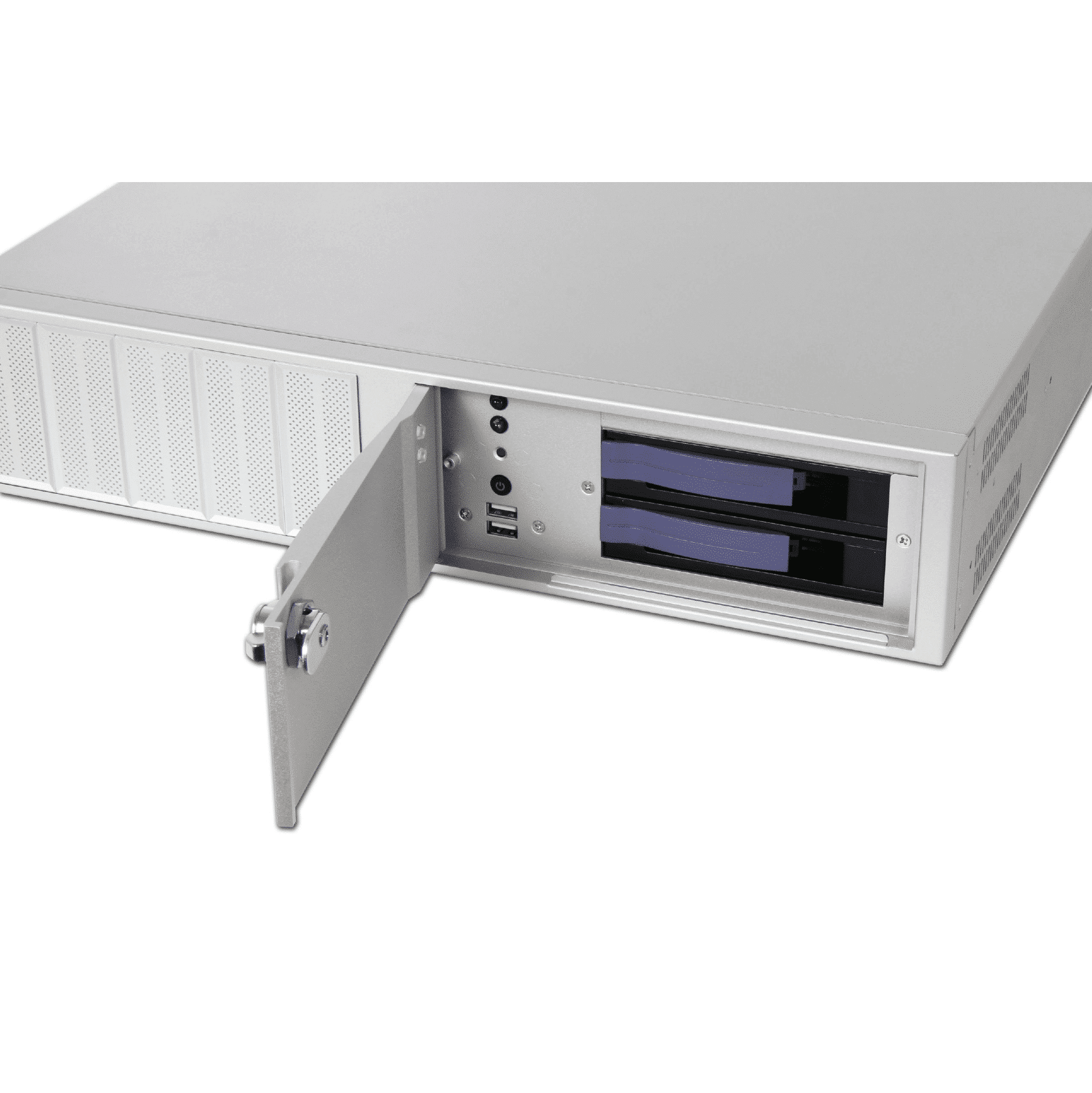

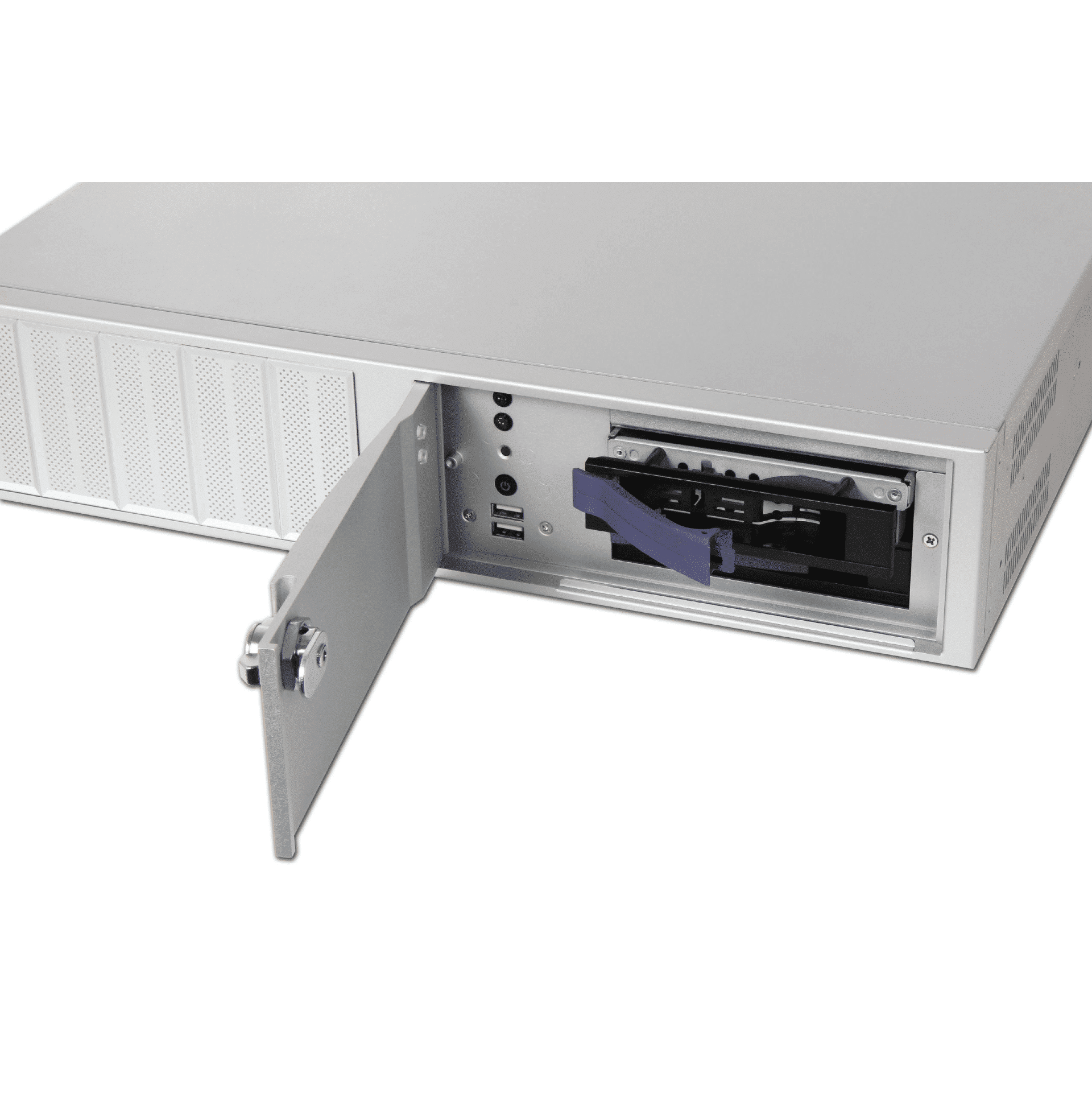

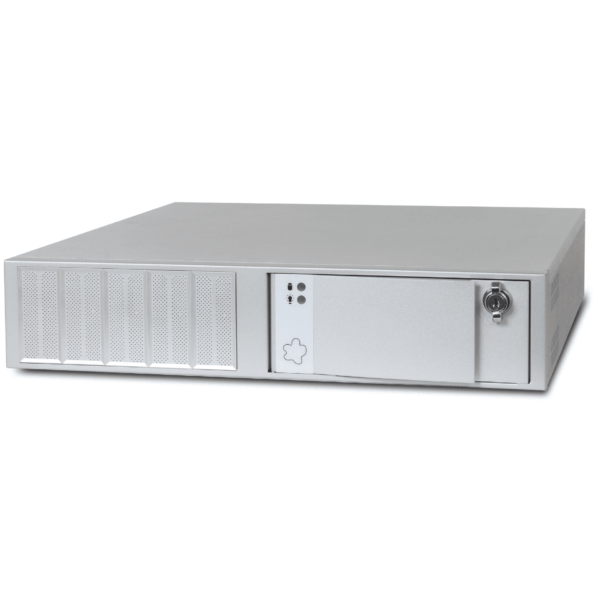

The AREMO-2175PA, 19” 2U Rack-mount, designed for PICMG 1.3 can support 6-slot backplane that also builds two hot-swap 3.5”SATA HDD driver bays and two USB interface on front panel. AREMO-2175PA can equip high wattage PS/2 form factor PSU. The build-in replaceable air filters are for easy maintenance. AREMO-2175PA is suitable for Factory and Server applications. One slim CD-ROM and two hot-swap 3.5” HDD (SATA) Drive bays

규격

TYPE 2U
MODEL AREMO-2175PA
SLOT 6
ORDERING GUIDE AREMO-2175PA AREMO-2175PA/B
BACKPLANE
BP MODEL PBPE-06V464 PBPE-06V3 PBPE-06V PEP-06V4
PICMG 1.3 1.3 1.3 1.0
PCIe 1 2 5
PCI/PCI-X 0/4 3/0 4/0

구매 가이드

Ordering Guide
AREMO-2175-PA
19” 2U rack-mount chassis for PICMG backplane
AREMO-2175-PA/B
19” 2U black rack-mount chassis for PICMG backplane

지원

(자료 & 다운로드)

  Catalog   AREMO-2175PA | Catalog    March 29, 2021
1.29 MB 2041 Downloads
