CHUMPI-5391
Menu

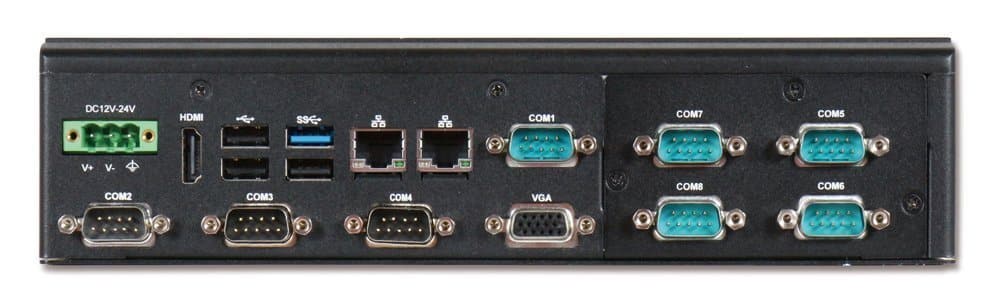

The CHUMPI-5391 is powered by Intel® Atom® quad-core processor. Despite its fanless and cable-less design, the system can support wide temperature ranging from -30°C ~ 70°C. By utilizing the low power technology, CHUMPI-5391 is an ideal platform for factory automation and transportation applications.
| Model | CHUMPI-5391 |
| M/B | PBA-1001 |
| Form Factor | Specific Form Factor 150 x 150 mm |
| System | |
| CPU | Atom® E3845 1.91GHz |
| Chipset | Intel® SoC |
| BIOS | AMI UEFI |
| Memory | DDR3L/8GB |
| Graphic Controller | Intel® Gen 7 Graphics |
| Audio Codec | ALC892 |
| Super I/O | EC ITE IT8528 + Fintek F81216 |
| Storage | 1x 2.5″ SATA HDD/SSD 1x Half-size mSATA |
| External I/O | |
| Serial | 2x RS-232/422/485 2x RS-232 |
| USB | 1x USB3.0 3x USB2.0 |
| Display | VGA, HDMI® |
| Ethernet | Intel® I210IT x 2 |
| PS/2 | N/A |
| Audio | Depending on Expansion Kit |
| D I/O | 8-bit Digital I/O |
| Expansion | 1x Full-size Mini-PCIe 6x Expansion Kit Assembly |
| PWR | |
| System | DC 12V ~ 24V |
| Environment | |
| OP Temp. | -30°C ~ 70°C |
| Storage Temp. | -40°C ~ 80°C |
| Humidity | 95%@40°C, non-condensing |
| Vibratoin | 5Grms/10-500Hz |
| Shock | 50G, 11 msec |
| Mechanical | |
| Dimension(WxDxH) | 247 x 160 x 60 mm |
| Weight | 2.4 Kg |
| AS5-3461 | (R).ATO. Chumpi-5391 Series. Intel Bay Trail Atom E3845 Embedded System |
