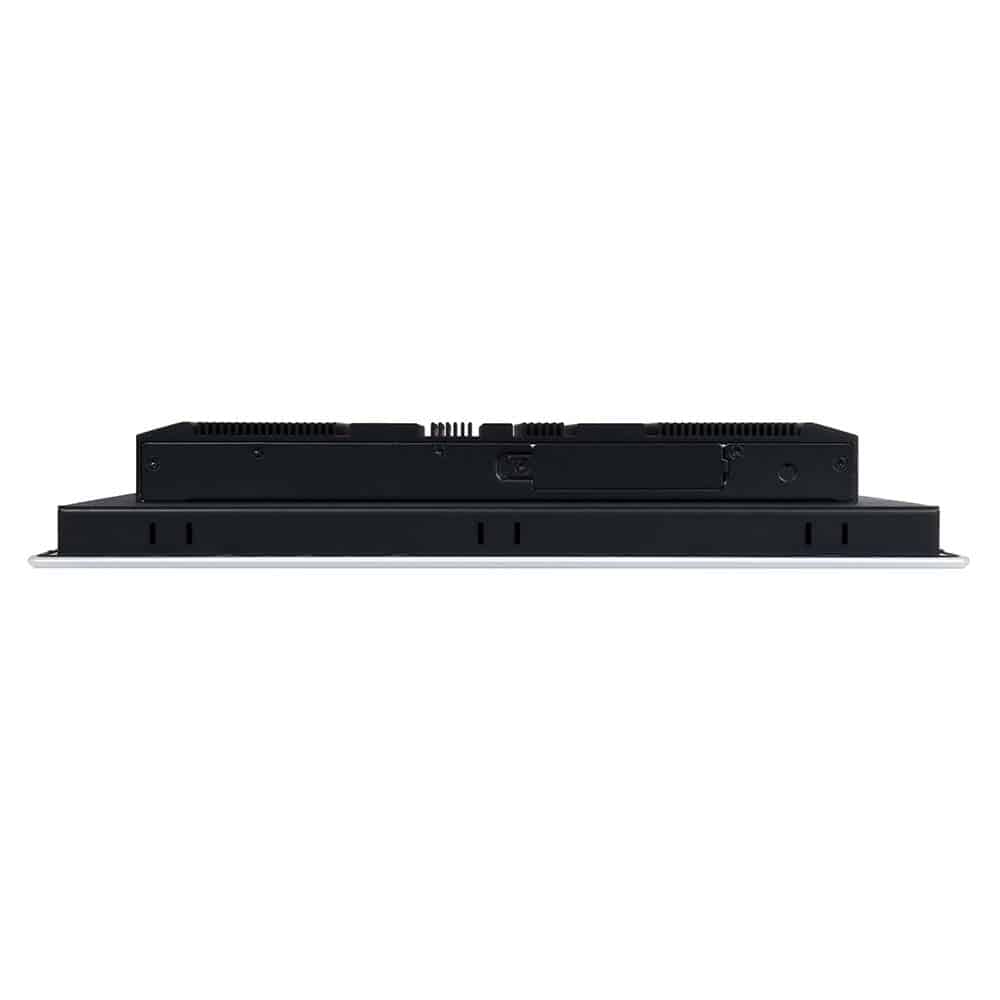

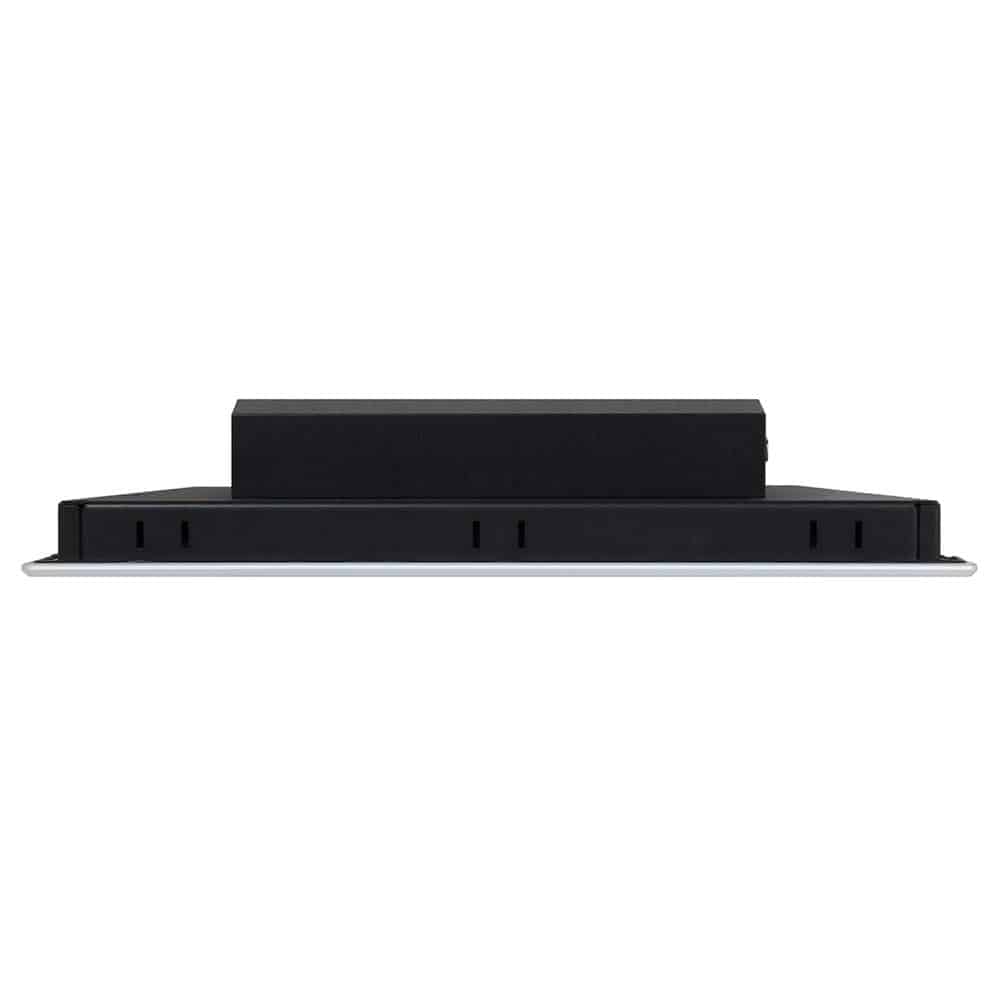

–Quad-core Processor with Gen9 Graphic
–Intel® Apollo Lake Atom™ x7-E3950 provides over 2 times higher
GPU computing power than Intel Baytrail processor
–Extended life cycle
– Slim and Light / Fan-less and Cable-less

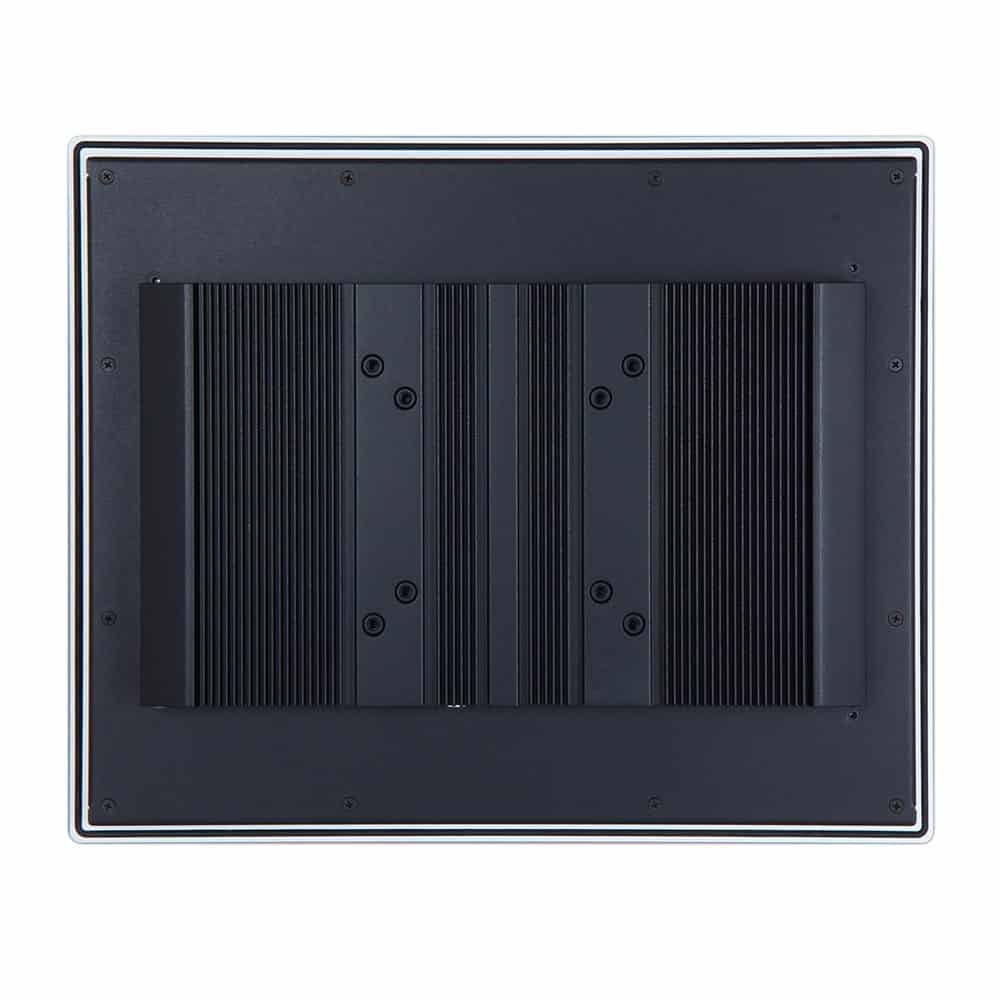

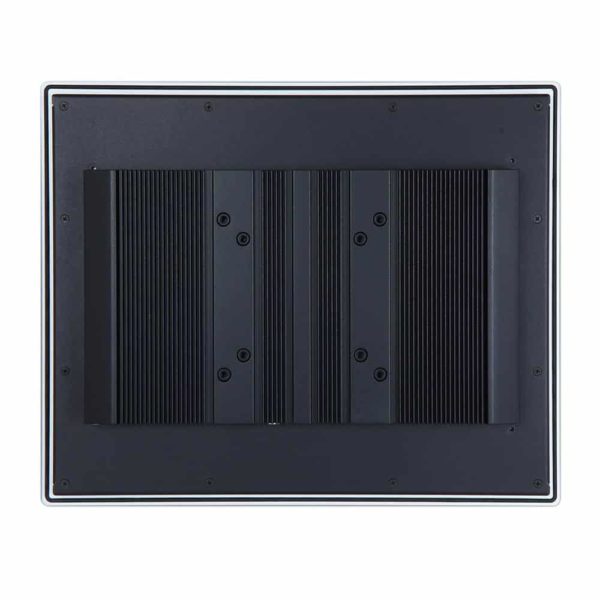

– Panel & VESA mount support
– Removable HDD tray
– 1x Full-size mini PCIe socket for WIFI/LTE

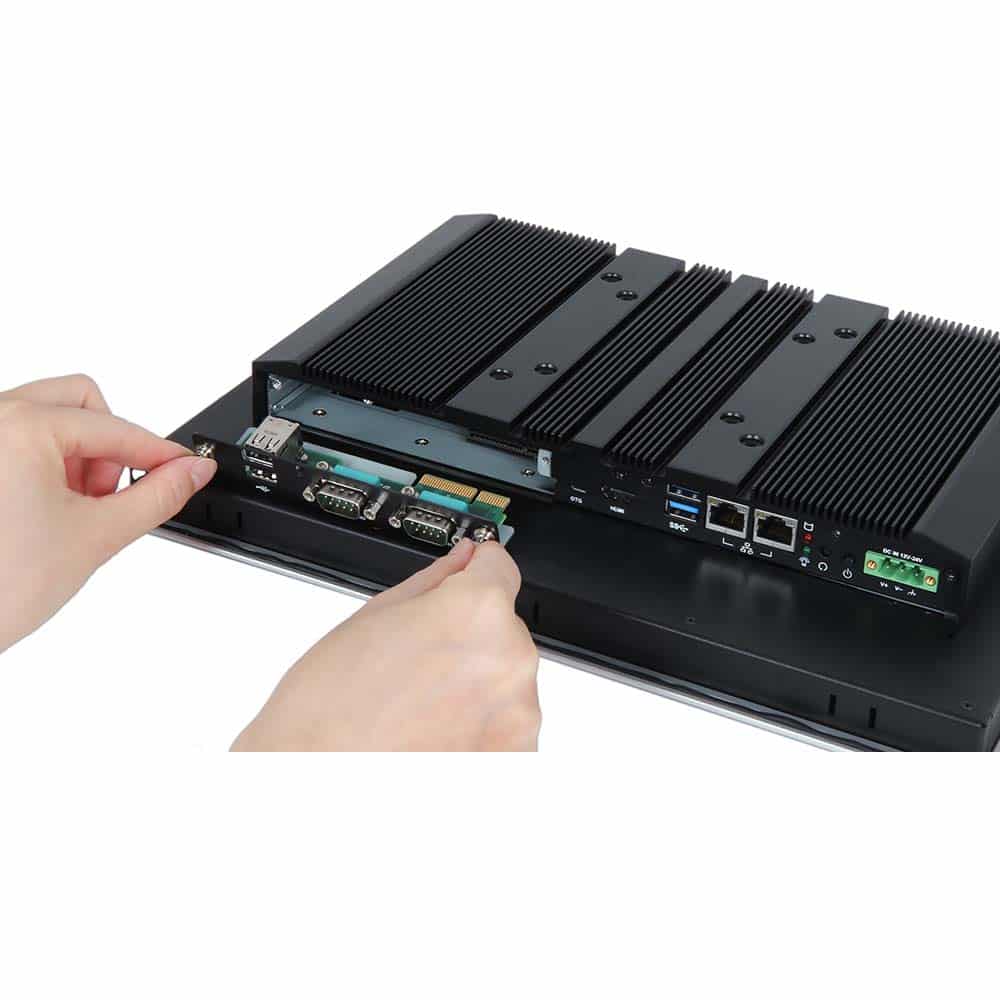

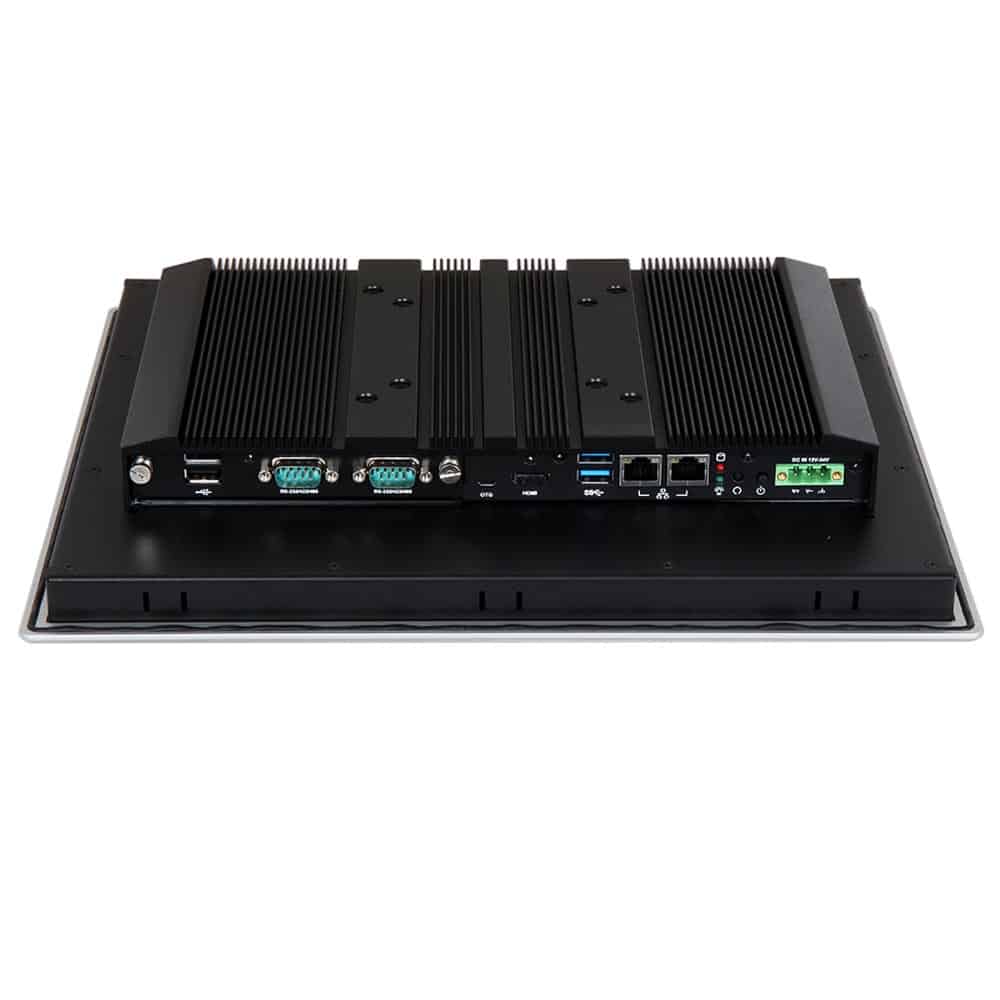

– Different I/O extension options
– 3H anti-scratch surface
– Single-touch by pressure
– Support heavy industrial gloves touch for factory use

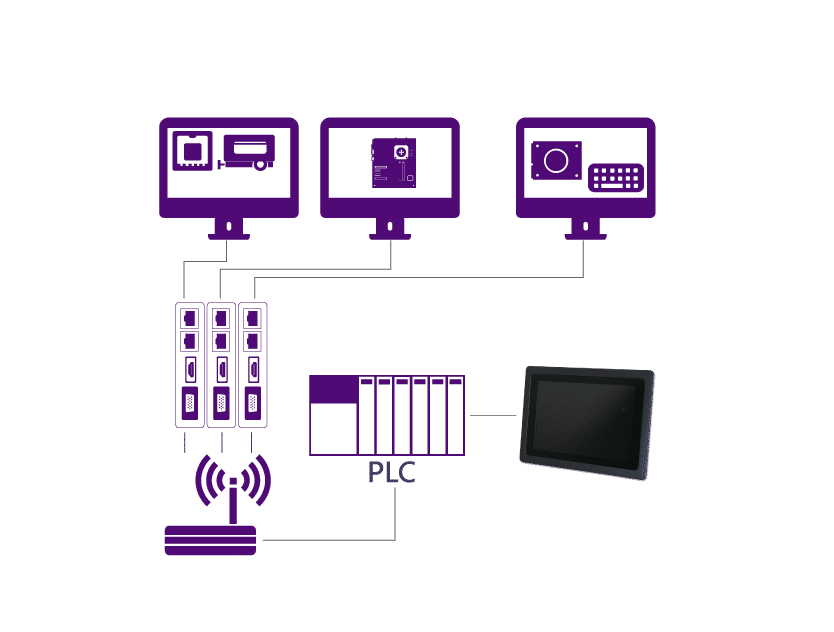

In IPC market, a robust and highly reliable Panel PC system is a must to ensure non-stop and stable operation on production line. By enhancing performance and power efficiency, FUDA3 Series is an ideal HMI in factory automation, food and beverage industry, vending machine or semi-outdoor environments.

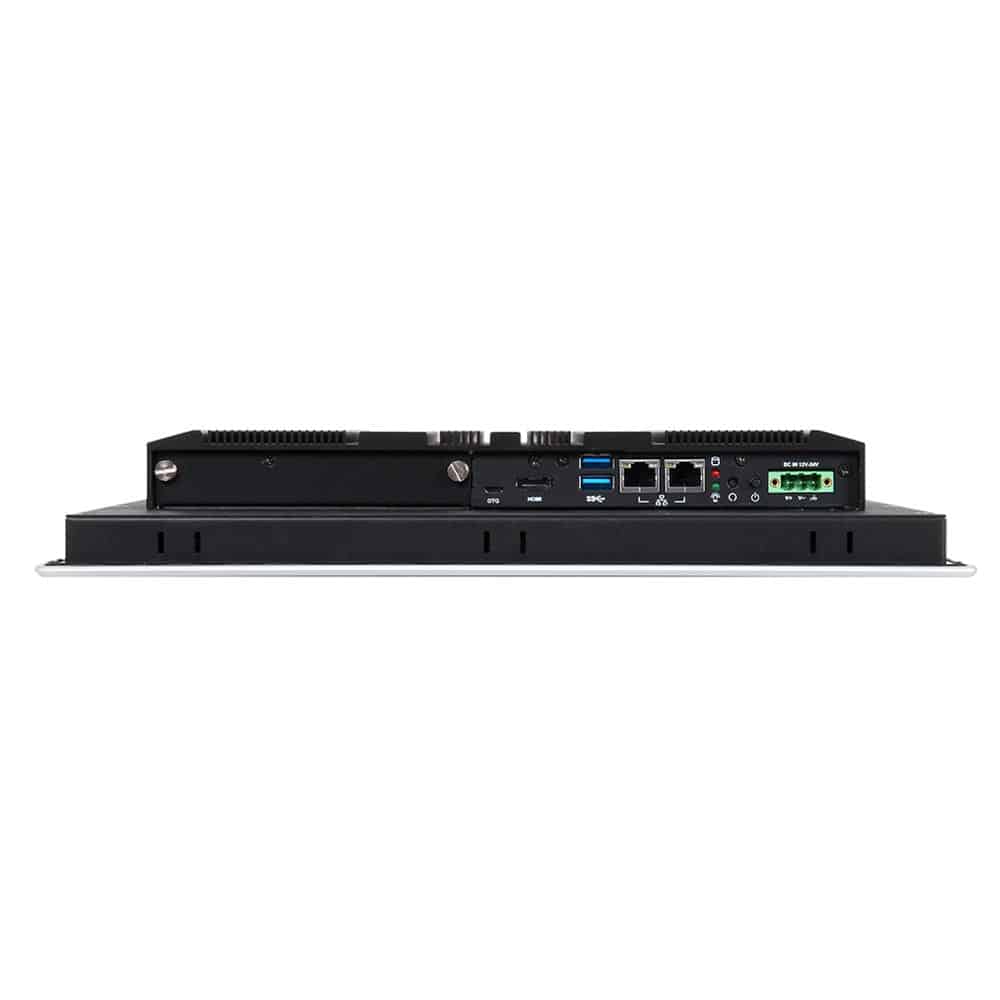

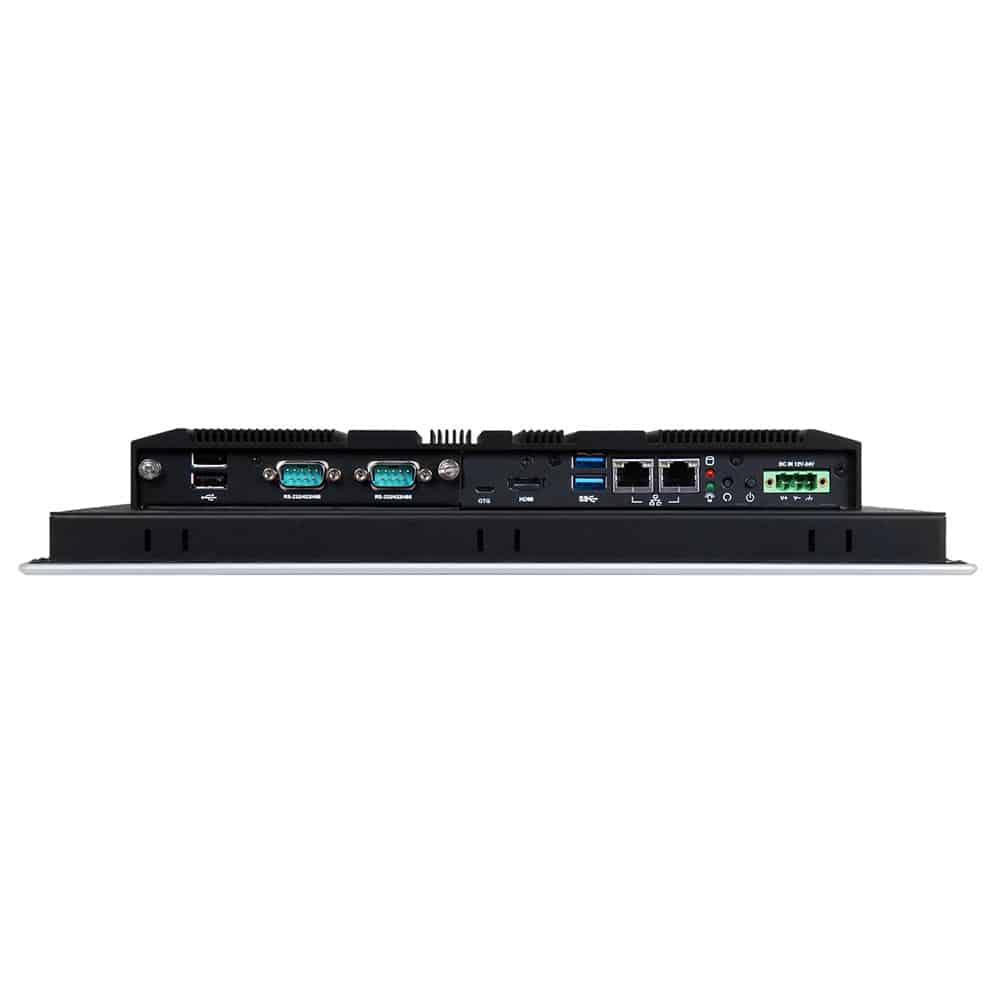

| Model Name | FUDA3-S1212 |
| Display | |
| LCD Size | 12.1″ |
| Resolution | XGA 1024 x 768 |
| Brightness | 600 cd/m² |
| Contrast Ratio | 700:1 |
| Backlight | LED type |
| Touch Window | 5-Wire Resistive Single Touch |
| System | |
| SOC | Intel® Atom™ x7-E3950 (Quad Core, 2M Cache, up to 2.0 GHz) |
| Memory | DDR3L SO-DIMM 1866 MHz up to 8 GB |
| BIOS | AMI |
| Graphics | Intel® HD Graphics 505 |
| LVDS | Single/ Dual Channel 24-bit |
| LAN Chipset | Dual Intel® Gigabit Ethernet Chipset |
| Audio | N/A |
| Watchdog Timer | Programmable 1 ~ 255 sec |
| Storage Device | 1 x 2.5″ SATA HDD / SSD, 1 x Mini-mSATA |
| OS | Windows 10/ Linux™ |
| I/O Interface | |
| Series Port | 2 x RS-232/422/485 (Expansion : Option 0) |
| Display | 1 x HDMI® |
| USB | 1 x USB OTG, 2 x USB 3.0, 2 x USB 2.0 (Expansion: Option 0) |
| Ethernet | 2 x Gigabit Ethernet |
| Others | 1 x SMA Antenna hole for WiFi/LTE Solution |
| Expansion | 1 x Full-size Mini-PCIe socket 1 x Half-size Mini-PCIe/Mini-mSATA socket switch by jumper 2 x RS-232/422/485, 1 x RS-232 (Expansion: option 1) |
| Mechanical | |
| Dimension(mm)(WxDxH) | 343 x 282 x 53.2 mm |
| Mounting (mm) | VESA Mount 75 x 75& 100 x 100; Panel Mount |
| Weight (Kg)(N) | 4.3 Kg |
| Weight (Kg)(N) | 6.2 Kg |
| Power | |
| Power Supply | DC 12 ~ 24V input with 3-pin Terminal Block Connector |
| Consumption (Max) | 40.9W (12V); 39.4W (24V) |
| Consumption (Min) | 12W (12V); 12.3W (24V) |
| Environmental | |
| OP /Storage Temp | -25°C ~ 60°C / -40°C ~ 85°C (20 ~ 90% non-condensing) |
| Vibration | 1.0G (SSD) and 0.5G (HDD) , Power on ; 2.16G, Packaged; 5~500Hz, IEC 60068-2-6 |
| Shock | 15G peak acceleration, 11 ms (Power on condition), IEC 60068-2-27 |
| Drop | Package with Carton from 96.5 cm (1-Corner, 3-Axis, 6-Face), ISTA 2A Standard |
| IP Protection | IP65 (Front) / IP20 (Rear), IEC 60529 Edition 2.1 Standard |
| Certificate | CE/FCC Class A, UKCA, EN62368-1, EN61000-6-2 |
| AL6-3290 | (R)ATO.FUDA3-S1012-0000-00. 10.4″ Intel® Apollo Lake E3950 5-wire Resistvie Touch Panel PC with PW Overlay |
| AL6-3295 | (R)ATO.FUDA3-S1212-0000-00. 12.1″ Intel® Apollo Lake E3950 5-wire Resistvie Touch Panel PC with PW Overlay |
| AL6-3289 | (R)ATO.FUDA3-S15112-0000-00. 15″ Intel® Apollo Lake E3950 5-wire Resistvie Touch Panel PC with PW Overlay |
