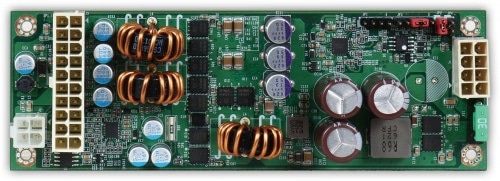

180W DC/DC 6~36V input/ATX output Board type Converter
Menu
GADIWA-B9180 is a DC to DC wide voltage input board type converter. It normally support continuous 180 Watts and peak 200 Watts.
GADIWA-B9180 can save more space and cost. It’s not only capability for fan-less system but also suitability for different applications. Besides, the converter is made and tested by automatic production line; therefore, it can provide high quality and better performance.
| Input Voltage | 6V~36V |
| Output | 120Watts / 160 Watts Peak |
| Efficienc | > 90% @12V input, 180W output, 25°C |
| MTBF | 420,000hrs @ 55°C |
| EMI & Safety Approval | CE, FCC |
| Input Connector | 6V~36V 8 pin |
| Output Connector | ATX 20 Pin + 12V 4 Pin |
| Dimension (WxDxH) | 150 x 51 x 25 mm |
| Operation Temperature | -40°C to 75°C |
| GADIWA-B9180 180W DC/DC 6V~36V/wide-input.ATX/output.Wide Temperature.Board Type Converter |
