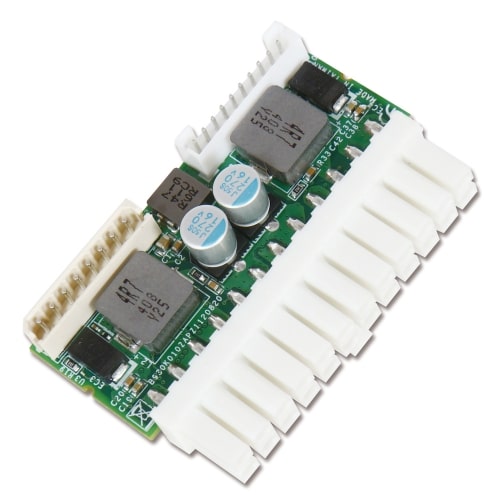

120W DC/DC 12V 입력/ATX 출력 소켓형 컨버터


  • 12V DC/input, plug directly into the ATX connector with socket output
  • Compact and user-friendly design for installation and maintenance
  • Fan-less design for mission-critical application
  • -40°C to 75°C wide temperature support


GADIWA-M1120 is a DC-DC converter for socket type. It normally support 96Watts and maximum can reach to 120Watts. GADIWA-M1120 socket type design can save more space and cost, it’s not only capability for fan-less system but also suitability for different application. Besides, the converter is made and tested by automatic production line; therefore, it can provide high quality and performance.


Input Voltage 12V
Output 120Watts / 160 Watts Peak
Efficiency > 90% @12V input, 120W output, 25°C
MTBF 420,000hrs @ 55°C
EMI & Safety Approval CE, FCC
Input Connector 12V / DC Jack
Output Connector ATX 24Pin Connector
Dimension (WxDxH) 35 x 56 x 23.5 mm
Operation Temperature -40°C ~ 75°C

구매 가이드

Ordering Guide
120W 12V to ATX DC to DC Power module.Wide Temperature. bulk packing


(자료 & 다운로드)

  Catalog   GADIWA-M1120 | Catalog    March 29, 2021
573.59 KB 2385 Downloads
