– Quad-core Processor with Gen7 Graphic
– 3x Peak Performance and 5x Power Efficiency
– Extended life cycle

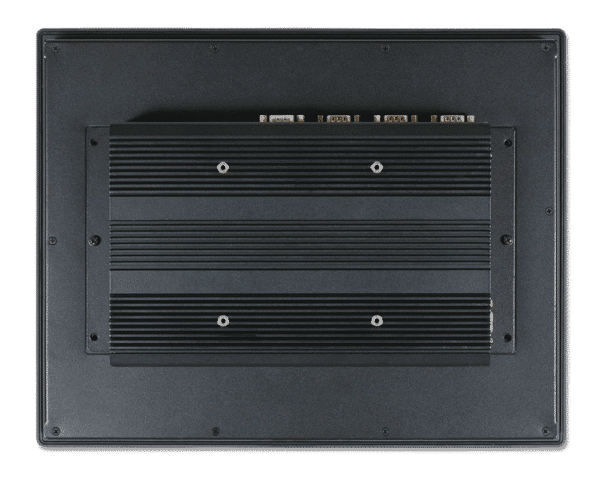

– Panel & VESA mount support
– Removable HDD tray
– 10.4″~19″ for JAVI-S1X30 Series and 15″~19″ for JAVI-S1X31 Series
– Easily connect Box PC and Touch Panel Display by ONE SINGLE CABLE
Speaking of HMI in factory automation application, system reliability, stability and longevity are the three chief considerations without a doubt. JAVI Series is designed, in order to ensure safe and non-stop operation in the field.
| Model Name | JAVI-S1930 |
| Display | |
| LCD Size | 19″ |
| Resolution | SXGA 1280 x 1024 |
| Brightness | 350 cd/m² |
| Contrast Ratio | 1000:1 |
| Backlight | LED type |
| Touch Window | True Flat 5-Wire Resistive Single Touch (Projective Capacitive Multi-Touch by Project) |
| System | |
| SOC | Intel® Atom™ Quad-core E3845 (1.91 GHz) |
| Memory | DDR3L 1333/1600 SO-DIMM up to 8GB |
| BIOS | AMI |
| Graphics | Intel® Gen 7 Graphics |
| LVDS | Single/ Dual Channel 24-bit |
| LAN Chipset | Dual Intel® I210IT Gigabit Ethernet (Support Jumbo Frame) |
| Audio | N/A |
| Watchdog Timer | Programmable 1 ~ 255 sec |
| Storage Device | 1 x 2.5″ SATA HDD/ SSD, 1 x Half-size mSATA device |
| OS | Windows 7/ Windows 8.1/ Windows 10/ Linux™ |

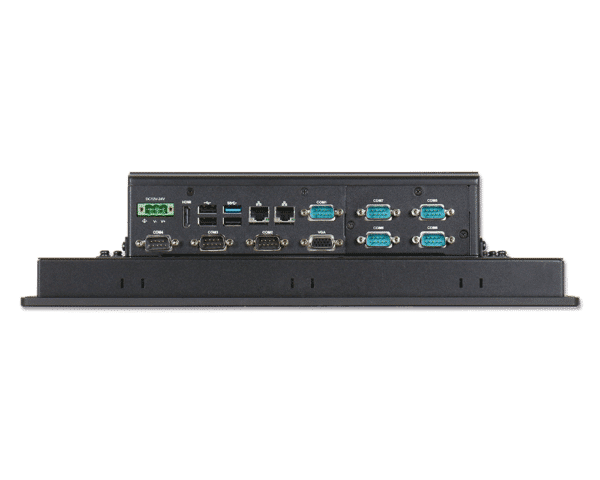

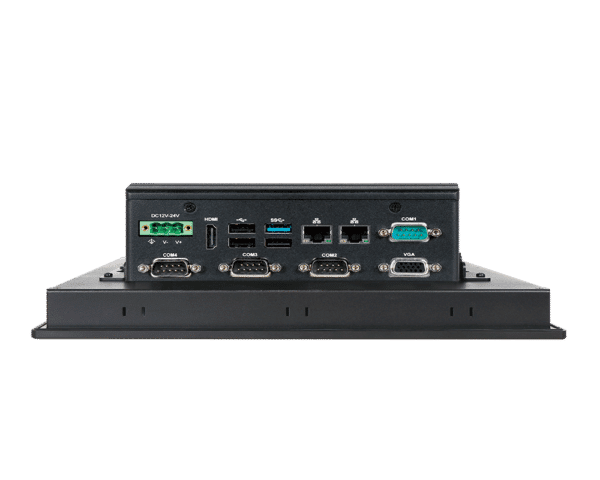

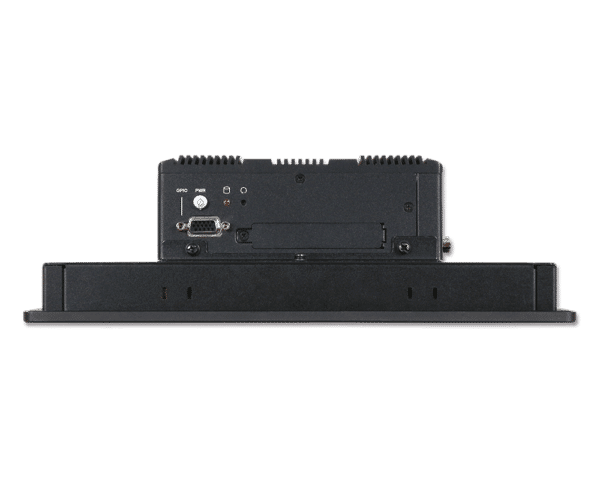

| I/O Interface | |
| Series Port | 2 x RS-232/422/485, 2 x RS-232 |
| Display | 1 x VGA, 1 x HDMI® |
| USB | 1 x USB3.0, 3 x USB2.0 |
| Ethernet | 2 x Gigabit Ethernet |
| Others | 1 x Programmable 8-bit Digital I/O,
2 x SMA Antenna hole for WiFi, 3G/GPS or 4G LTE Solution |
| Expansion | 1 x Full-size Mini-PCIe socket |
| Mechanical | |
| Dimesion(mm)(WxDxH) | 451 x 374 x 97.8 mm |
| Mounting (mm) | VESA Mount 100 x 100; Panel Mount |
| Weight (Kg)(N) | 8.5 Kg |
| Weight (Kg)(N) | 9.7 Kg |
| Power | |
| Power Supply | DC 12V ~ 24V input with 3-pin terminal block connector |
| Consumption (Max) | 36.2W (12V);
33.8W (24V) |
| Consumption (Min) | 16.3W (12V);
19.0W (24V) |
| Environmental | |
| OP /Storage Temp | -25°C ~ 70°C / -40°C ~ 85°C (20 ~ 90% non-condensing) |
| Vibration | 1.0G(SSD) and 0.5G(HDD) , Power on & 2.16G, Packaged; 5~500Hz, IEC 60068-2-6 |
| Shock | 15G peak acceleration, 11 ms (Power on condition), IEC 60068-2-27 |
| Drop | Packaged with Carton 96.5cm (1-Corner, 3-Axis, 6-Face), ISTA 2A Standard |
| IP Protection | IP65 (Front) / IP20 (Rear), IEC 60529 Edition 2.1 Standard |
| Certificate | CE/FCC Class A |
| AL6-3218 | (R).ATO.JAVI-S1030-E3845-00. 10.4″ F5WR Touch & Intel Bay Trail Atom E3845 Panel PC |
| AL6-3219 | (R).ATO.JAVI-S1230-E3845-00. 12.1″ F5WR Touch & Intel Bay Trail Atom E3845 Panel PC |
| AL6-3127 | (R).ATO.JAVI-S1530-E3845-00. 15″ Flat 5WR Touch & Intel Bay Trail Atom E3845 Panel PC |
| AL6-3220 | (R).ATO.JAVI-S1730-E3845-00. 17″ F5WR Touch & Intel Bay Trail Atom E3845 Panel PC |
| AL6-3216 | (R).ATO.JAVI-S1930-E3845-00. 19″ Flat 5WR Touch & Intel Bay Trail Atom E3845 Panel PC |
