Stylish, Slim and P-CAP Touch Panel PC. Powered by Intel® Apollo Lake Dual-core Processor with Fanless Design
Menu
| Model Name | LEAD-PPC-2150-A LEAD-PPC-2360-A | |
| Part Number | AL6-3265 AL6-3267 | |
| 디스플레이 | ||
| LCD Size | 21.5" / 23.6" | |
| Resolution | FHD 1920 x 1080 | |
| Brightness | 250 cd/m2 | |
| Contrast Ratio | 1000: 1 | |
| Panel Type | TN | |
| Viewing Angle | 170° (H) / 160° (V) | |
| Touch Screen | Projected Capacitive Multi-Touch | |
| 시스템 | ||
| SOC | Intel® Atom® Dual-Core x5-E3930 (1.3GHz, up to 1.8GHz) | |
| Memory | 8G DDR3L / 1600 SO-DIMM | |
| LAN Chip | Intel® WGI210IT | |
| Audio Codec | Realtek® ALC892 | |
| Storage Device | 128G TLC mSATA | |
| OS | Windows 10 IoT / Android 6.0 / Linux™ Ubuntu 16.10 | |
| 입출력 인터페이스 | ||

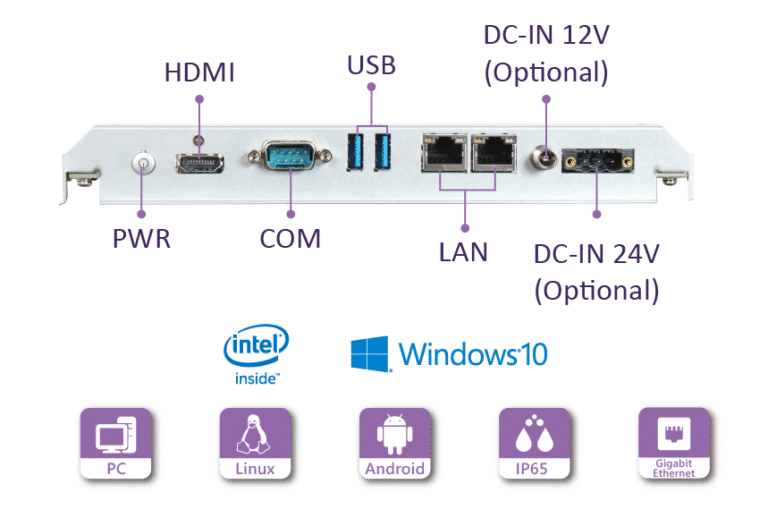

| Serial Port | 1 x RS-232/422/485 | |
| Display | Output: 1 x HDMI® | |
| USB | 2 x USB 3.0 | |
| Ethernet | 2 x Gigabit Ethernet | |
| Audio | 2 x 3W Speaker | |
| OSD Key | N/A | |
| Power | ||
| 전원 Input | DC 12V via DC Jack | DC 24V via 3-pin terminal block connector |
| Power Supply | 65W AC-DC Adapter | 60W AC-DC Adapter |
| 환경 | ||
| Mounting (mm) | Standalone: VESA® Mount 75 x 75 | |
| Accessory | N/A | |
| OP / Storage Temperature | 0~50°C / -20~60°C | |
| IP Protection | IP65 (Front) | |
| Certificate | CE / FCC Class B | |
(자료 & 다운로드)

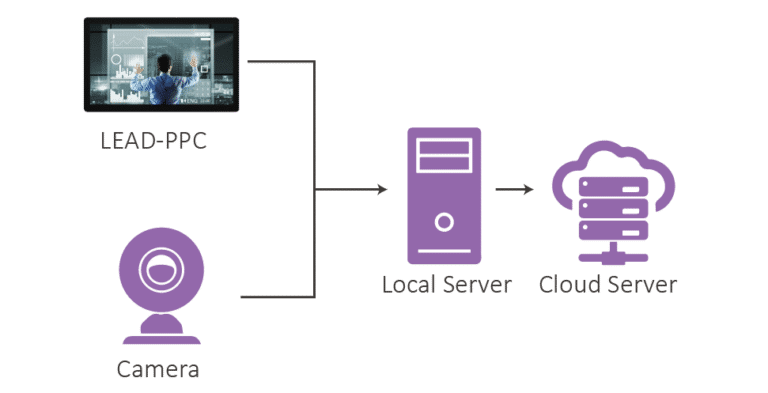

The Internet of Things (IoT) makes it possible to link every single device together, so our endless imagination on now becomes a limitless possibility for the future. With IoT infrastructure, it’s possible to change how we manufacture, improve how we live and even mold how we receive information on into a smart pattern.
