LYNX Series, Palm-Size Power and Innovation for Integrated IIoT Solutions Based on Intel Celeron® N3350
Menu

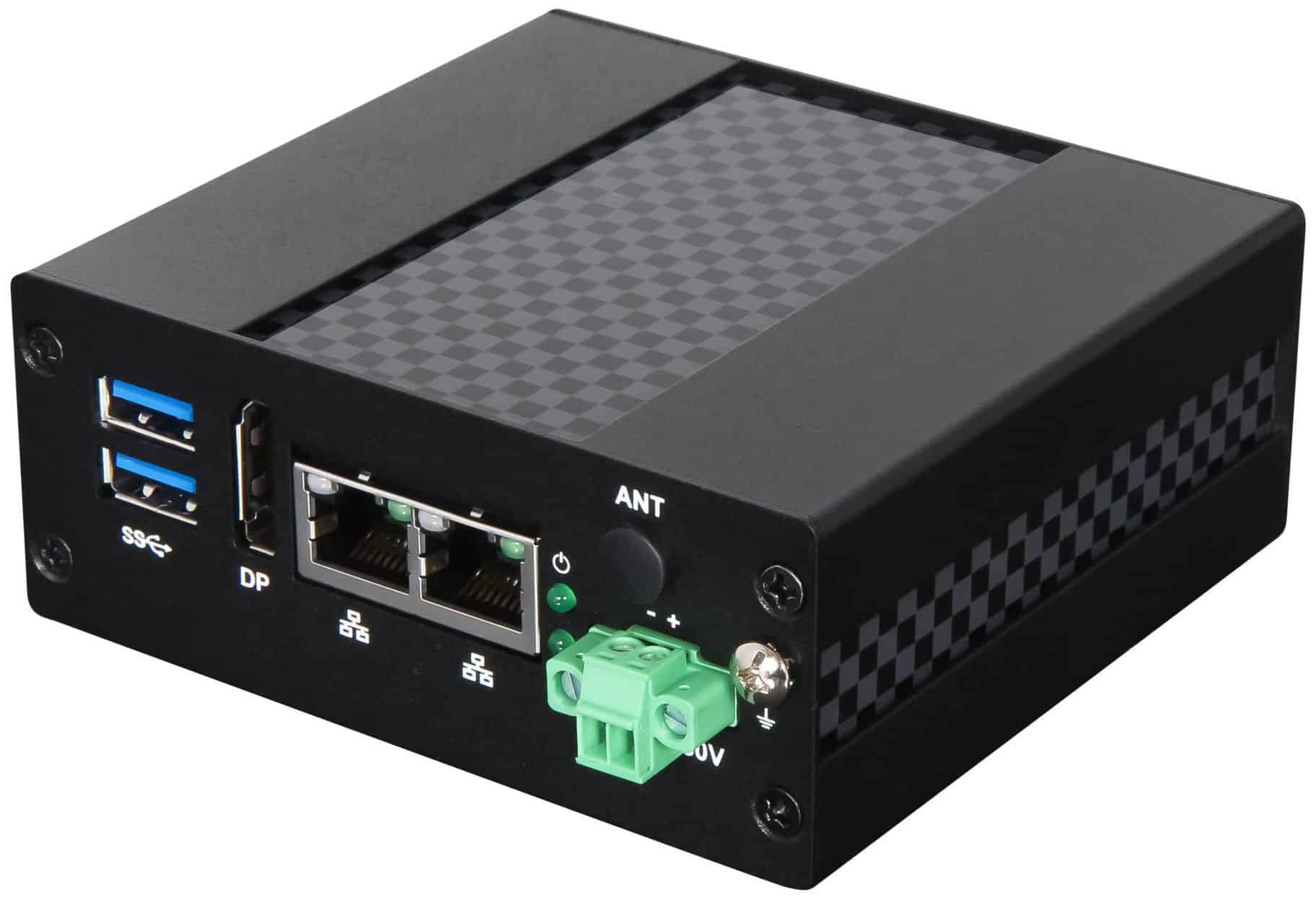

LYNX-6110 is a compact, fan-less and cable-less PC adapting low power Intel® Apollo Lake processor. Developed to meet heavy industrial standards, the rugged design makes sure its reliability as well as stability to work in harsh environment. By providing basic I/O interfaces in a palm-sized box, the system is suitable for industrial automation, smart factory, edge computing, and IIoT gateway applications.
| General | |
| Processor | Intel® Celeron® N3350, 2 cores, 1.1GHz/2.4 GHz, 6W TDP |
| Memory | 4GB onboard LPDDR4, 2400 MT/s, non-ECC; up to 8GB (Optional) |
| Storage | 32GB onboard eMMC 5.0 flash; up to 256GB (Optional) |
| Power Input | 12-30VDC (+/- 20%) |
| Operating System | Windows® 10 IoT Enterprise (64bit) Yocto v2.7 |
| Expansion | 1x M.2 Key E 2230 for wireless module |
| Other | TPM 2.0 onboard |
| Basic I/O Interface | |
| Power Connector | 1x 2-Pin Terminal Block |
| Ethernet | 2x 10/100/1000 GbE (Intel® I210) |
| USB | 2x USB 3.0 |
| Display | 1x DP v1.4 4096 x 2160 @ 60Hz |
| Extended I/O Interface | |
| CE (EN 55032; EN 55024/ EN 55035) | |
| CE (EN 61000-6-4; EN 61000-6-2) | |
| FCC (Part 15 Subpart Class A) | |
| LVD (EN 62368-1) | |
| Environment & Mechanical | |
| Storage Temperature | -40 °C ~ 85 °C |
| Operating Temperature | 0°C ~ 50°C |
| Permissible Humidity | 5-95% RH operating, non-condensing 5-95% RH storage, non-condensing |
| Vibration | 1G with DIN-rail mounting 5G with wall mounting (IEC/EN 60068-2-6) |
| Shock | 15G with DIN-rail mounting 50G with wall mounting (IEC/EN 60068-2-27) |
| Degree of Protection | IP 30 |
| Dimension | 100mm (W) x 53.5mm (H) x 92 mm (D) |
| Net Weight | 0.53 KG |
| Mounting | DIN-rail / Wall Mount |
| Optional Accessories | |
| Power Adaptor | 2-pin terminal block connector to DC jack cable 60W AC to DC Power Adaptor via DC jack |
| Video Adaptor | DP to VGA/ DP to DVI-D |
