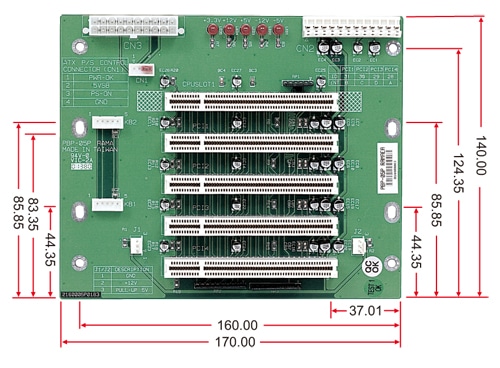

PBP-05P

5-slot Passive PCI Backplane

특징

  • Compact size backplane for half size PCI SBC
  • PICMG 1.0 Rev 2.1 Compliant (PCI golden finger only)
  • Support AT or ATX type power connector
  • 4-layer PCB with power and ground planes to reduce power noise and maintain a lower impedance
  • Frame rated PCB at 94-V0
  • User friendly design supports external K/B connector, power for chassis fan and power indicator

지원

(자료 & 다운로드)

  Catalog   PBP-05P | Catalog    March 30, 2021
1.21 MB 1799 Downloads
