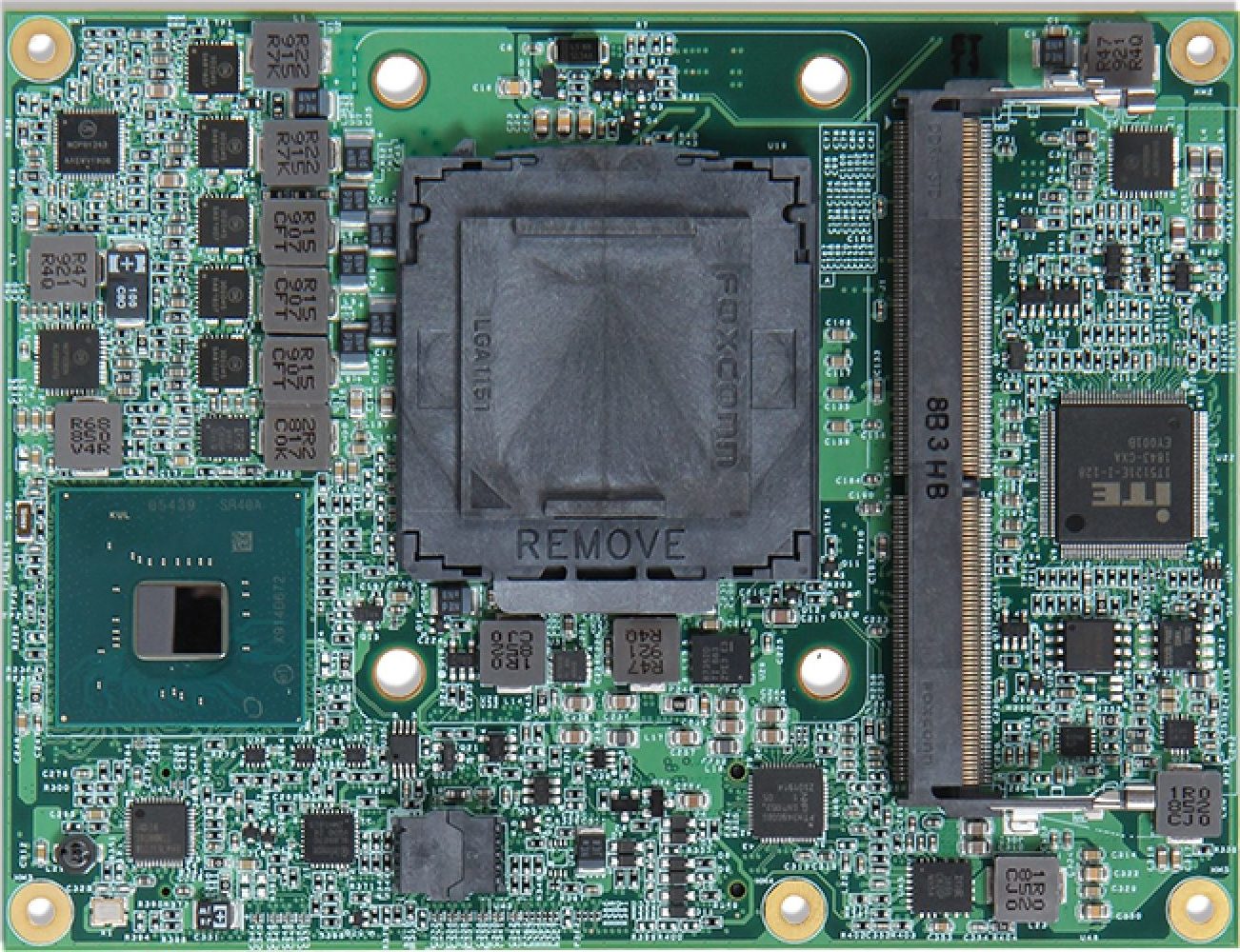

PCOM-B654GL is Intel® Coffee Lake-S platform COM Express module. It is compatible with COMe 3.0 Type 6 carrier board. The desktop CPU on module offers customer higher computing power but lower cost comparing to mobile solutions. PCOM-B654GL supports both ECC and Non-ECC DDR4 by different PCH SKUs(Q370/C246), which can be adapted to different applications. This module provides one PCIex16, eight PCIex1 (Option to one PCIex4), four USB 3.2 Gen2, and four SATA III.
| Model Name | PCOM-B654GL |
|---|---|
| Form Factor (mm) | COM Express® Compact (125 x 95mm) |
| COM Type | Type 6 |
| CPU/Clock/Cache | Intel® 8th Generation Core™ 35W Desktop processor* Intel® i7-8700T Intel® i5-8500T Intel® i3-8100T Intel® Celeron® G4900T* Up to 6 CPU cores* 2MB to 12MB cache* |
| Chipset | Q370/C246 |
| Memory | DDR4 2400MT/s* Non-ECC/ECC* Dual Channel* |
| USB | 4x USB 3.2 Gen2 8x USB 2.0 |
| PCI Express | 1x PCIe 3.0 x16 8x PCIe 3.0 x1 |
| Ethernet | Intel® I219LM |
| Sound | Intel® High Definition Audio |
| Graphic Controller | Intel® UHD Graphics 630* Intel® UHD Graphics 610* |
| Carrier Board | PCOM-C60B (Type 6) |
| Product | Ordering P/N | Status |
|---|---|---|
| PCOM-B654GL-C24 | AB1-3J46 | Available |
| PCOM-B654GL-Q37 | AB1-3J47 | Available |
| Accessory | Ordering P/N | Status |
|---|---|---|
| PCOM-C605(MINI-ITX carrier board | AB1-3998 | Available |
| PCOM-C60B(ATX carrier board | AB1-3G22Z | Contact us |
| Coole | B9971810 | Available |
