Intel® Xeon® D-1600 series SoC based on Type 7 Basic COM-Express® module
Menu

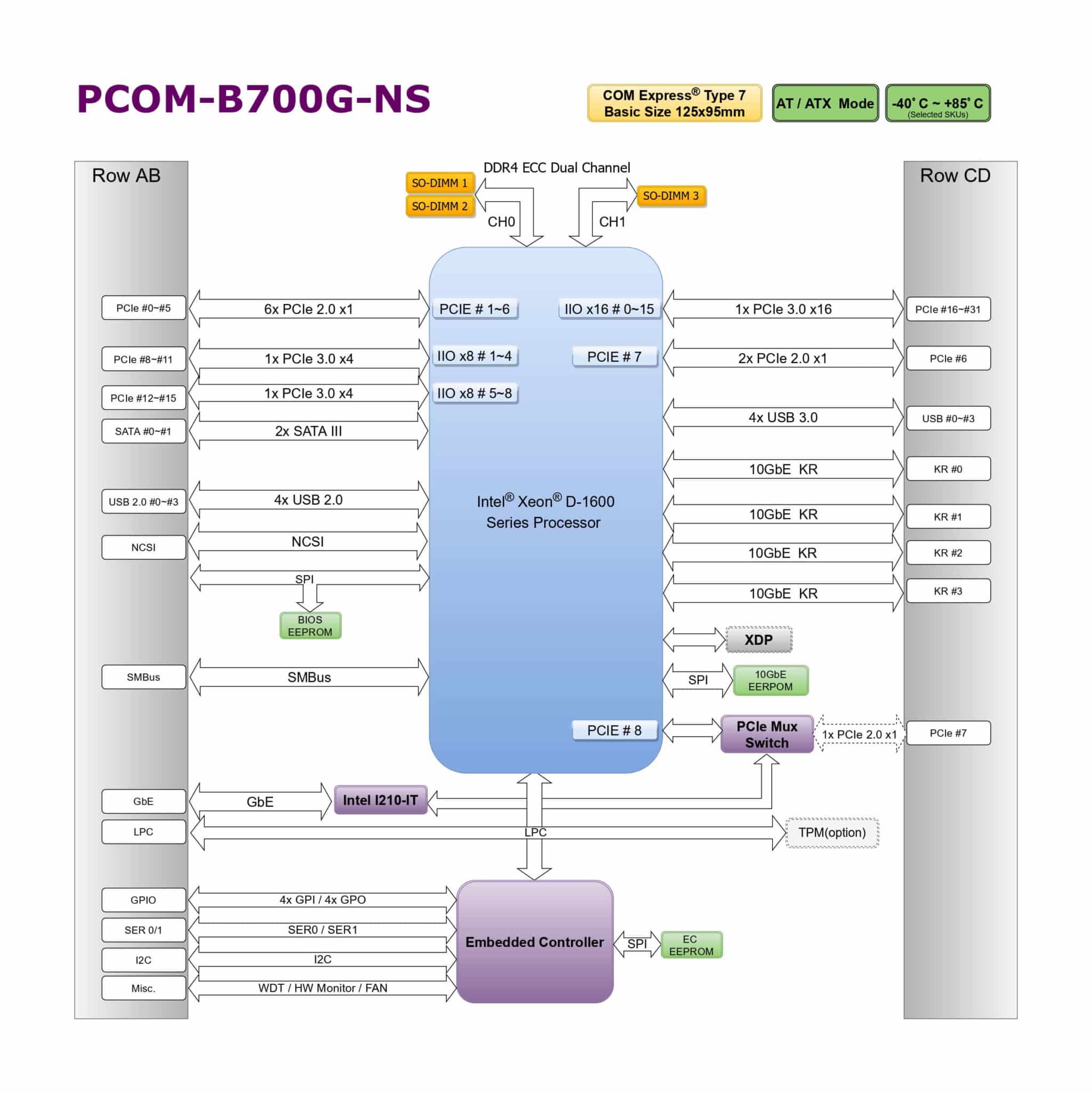

PCOM-B700G-NS, a Type 7 COM Express® basic size(125 x 95 mm) module which based on Intel® Hewitt Lake Xeon® D-1600 series processors. In this architecture, it could provide up to 8 cores and up to 16 threads processors within the TDP from 35w to 45w, and 4x 10G KR ports and up to 30 Gbps of cryptography offload with Intel® QuickAssist Technology (Intel® QAT), it’s also extending 24x PCIe 3.0 and 8x PCIe 2.0 lanes, 4x USB 3.2 Gen1, and 2x SATA III ports. A selected SKU (D-1649N) support wide-temperature range. PCOM-B700G-NS offer an effective upgrade path for solutions already using the previous D-1500 COM Express modules. Portwell want to promotes PCOM-B700G-NS as vertical solution to aim in the different versatile applications, such as edge computing, automation, military, transportation and so on.
| Model Name | PCOM-B700G-NS |
| Form Factor (mm) | COM Express® Basic (125 x 95mm) |
| COM Type | Type 7 |
| CPU/ Clock/ Cache | Intel® Xeon® Processors Intel® Xeon® D-1649N Intel® Xeon® D-1633N Intel® Xeon® D-1623N Intel® Xeon® D-1627 Up to 8 CPU cores 6MB to 12MB cache |
| Chipset | SoC |
| Memory | DDR4 1866/2133/2400 MT/s Non-ECC/ECC Dual Channel |
| USB | 4x USB 3.0/2.0 |
| PCI Express | 24x PCIe 3.0 8x PCIe 2.0 |
| Ethernet | 4x 10G KR 1x GbE LAN |
| Intel® QAT (Gbps) | Up to 20Gbps |
| Sound | N/A |
| Graphic Controller | N/A |
| Carrier Board | PCOM-C701-BMC(Type 7) |
| Product | Ordering P/N | Status |
|---|---|---|
| PCOM-B700G-NS-D1649N | AB1-3K99 | Contact us |
| PCOM-B700G-NS-D1633N | AB1-3L02 | Contact us |
| PCOM-B700G-NS-D1623N | AB1-3L00 | Contact us |
| PCOM-B700G-NS-D1627 | AB1-3L01 | Contact us |
| PCOM-B700G-NS-D1533N | AB1-3G95 | TBD |
| Accessory | Ordering P/N | Status |
|---|---|---|
| Cooler | B9972000 | Contact us |
| Heat Sink | TBD | in design |
| Heat Spreader | TBD | in design |
| PCOM-C701-BMC Carrier Board | AB1-3K14Z | in design |
(자료 & 다운로드)
Intel® Xeon® D-1600 series SoC based on Type 7 Basic COM-Express® module
Carrier design guide for PCOM-B700G-NS, the first release version.
User’s guide for PCOM-B700G-NS, the first release version.
