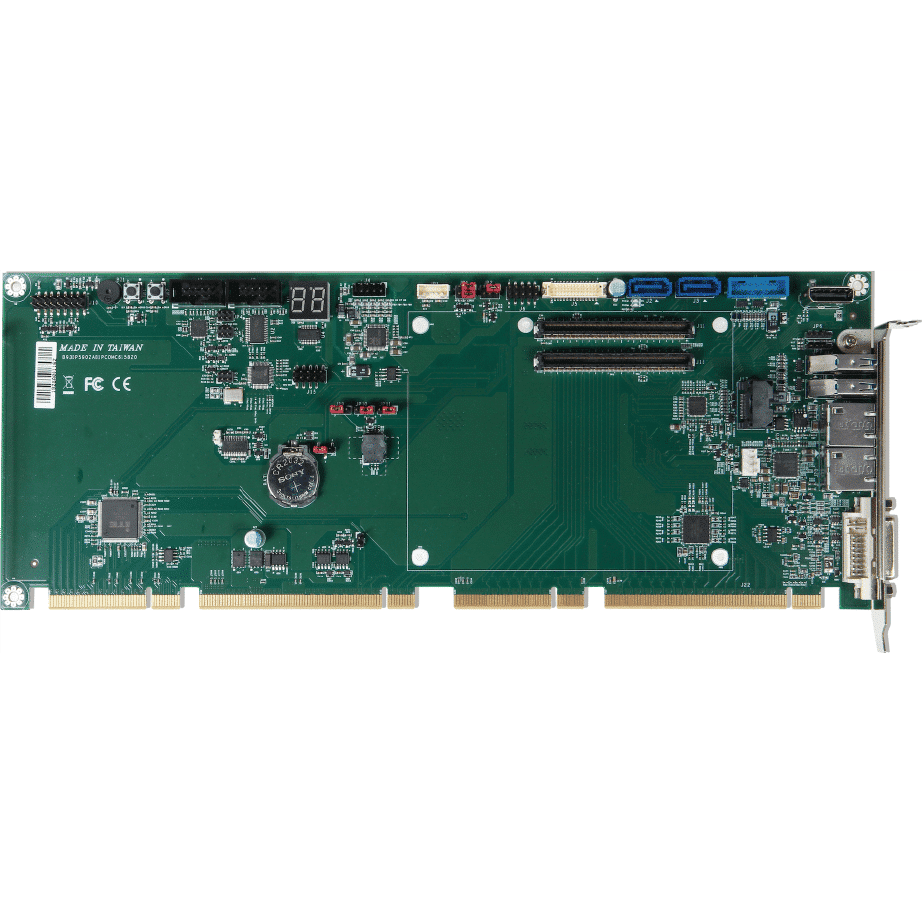

PCOM-C615는 COM Express® Revision 2.0 Type VI 모듈용 PICMG 1.3 전체 크기 폼 팩터 평가 캐리어 보드입니다. PCOM-C615는 표준 PICMG 1.3 골든 핑거 핀 정의를 따르며 고객이 모듈을 쉽게 업그레이드할 수 있도록 시스템 총 비용을 절감할 수 있습니다.


  • Supports four SATA III ports
  • Supports multiple display by LVDS, HDMI®, DP on board and DVI-I(DVI-D+VGA) on bracket(Choose either HDMI® or VGA by BIOS)
  • Rich I/O interfaces such as serial ports, USB, PCI


Portwell PCOM-C615 is designed with PICMG 1.3 form factor with COM Express Type VI row connectors, suitable for evaluation testing of Portwell’s Type VI COM Express modules on PCIe, PEG, VGA/HDMI®, DVI, USB and SATA interface.


Model Name PCOM-C615
Form Factor (mm) PICMG 1.3 (338.5 x 126.39mm)
COM Type Depends on Module
CPU/ Clock/ Cache Depends on Module
PCI Express 4x PCIe x1 or 1x PCIe x4 by different bios support (PCIe Gen3)
Ethernet 2x GbE
Sound N/A
Graphic Controller N/A
Carrier Board N/A

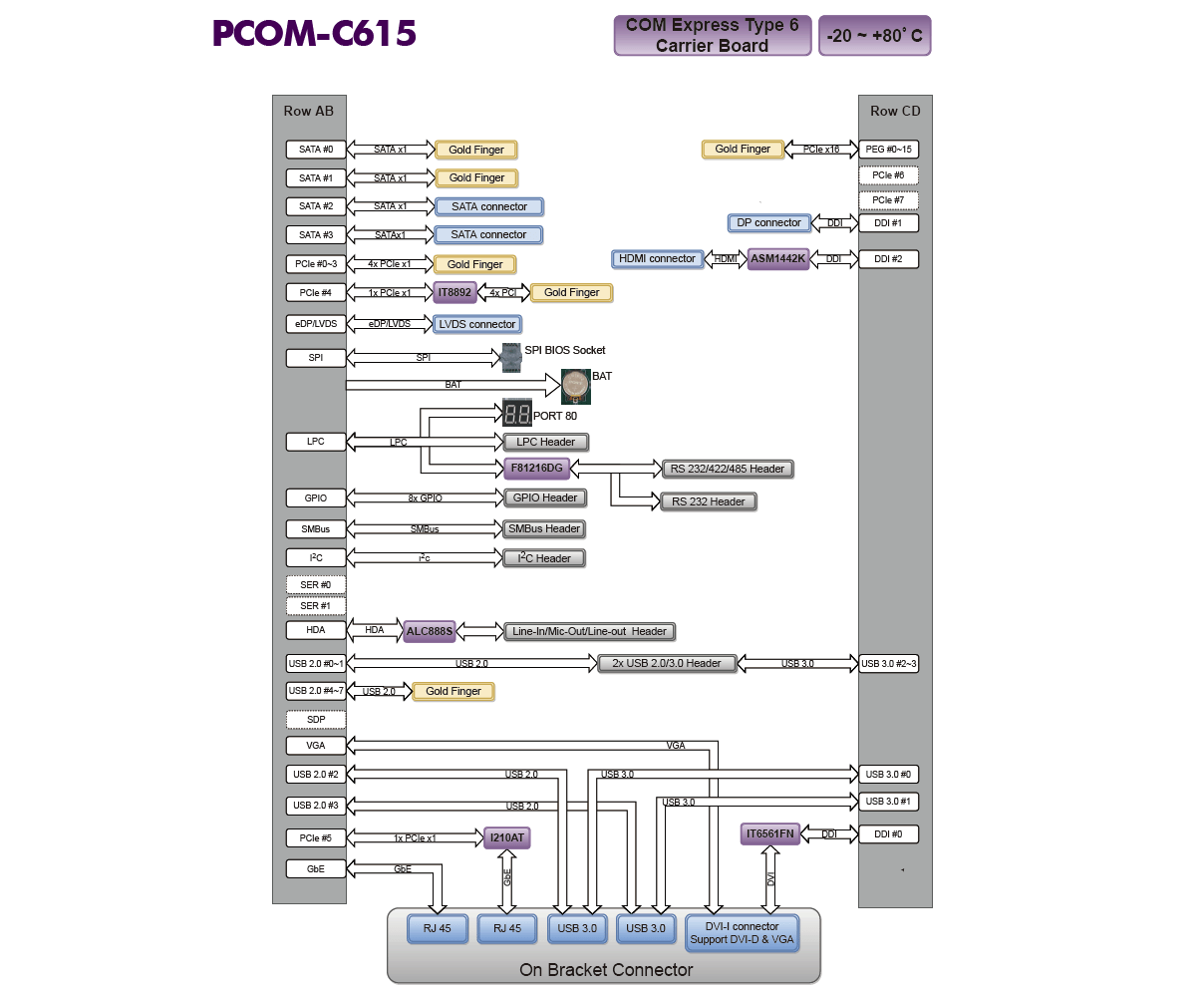

블록 다이어그램

구매 가이드

Ordering Guide
Product Ordering P/N Status
PCOM-C615 ABI-3J53 Available


(자료 & 다운로드)

  Catalog   PCOM-C615 | Catalog Ver.221   March 30, 2021
612.29 KB 2277 Downloads
      User’s Manual   Manual_PCOM-C615_R0 | User’s Manual R0   May 3, 2021
    1.14 MB 747 Downloads
