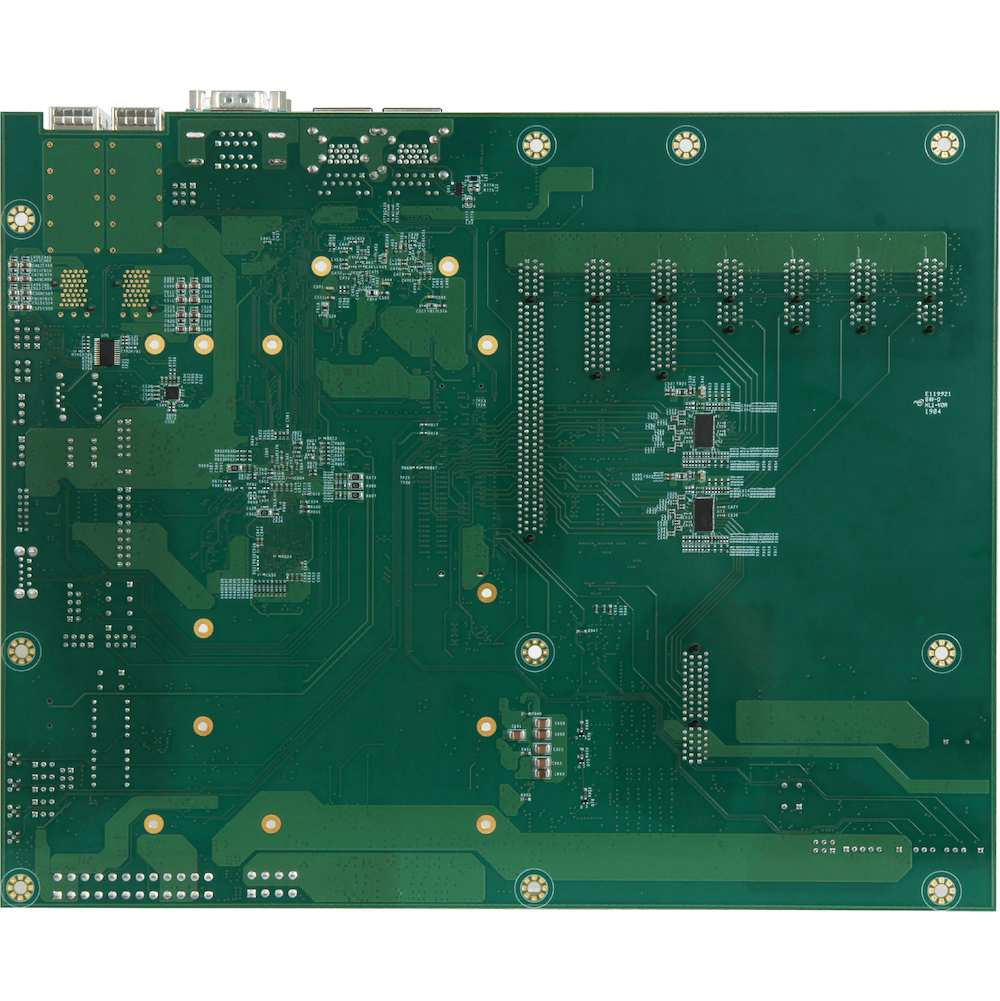

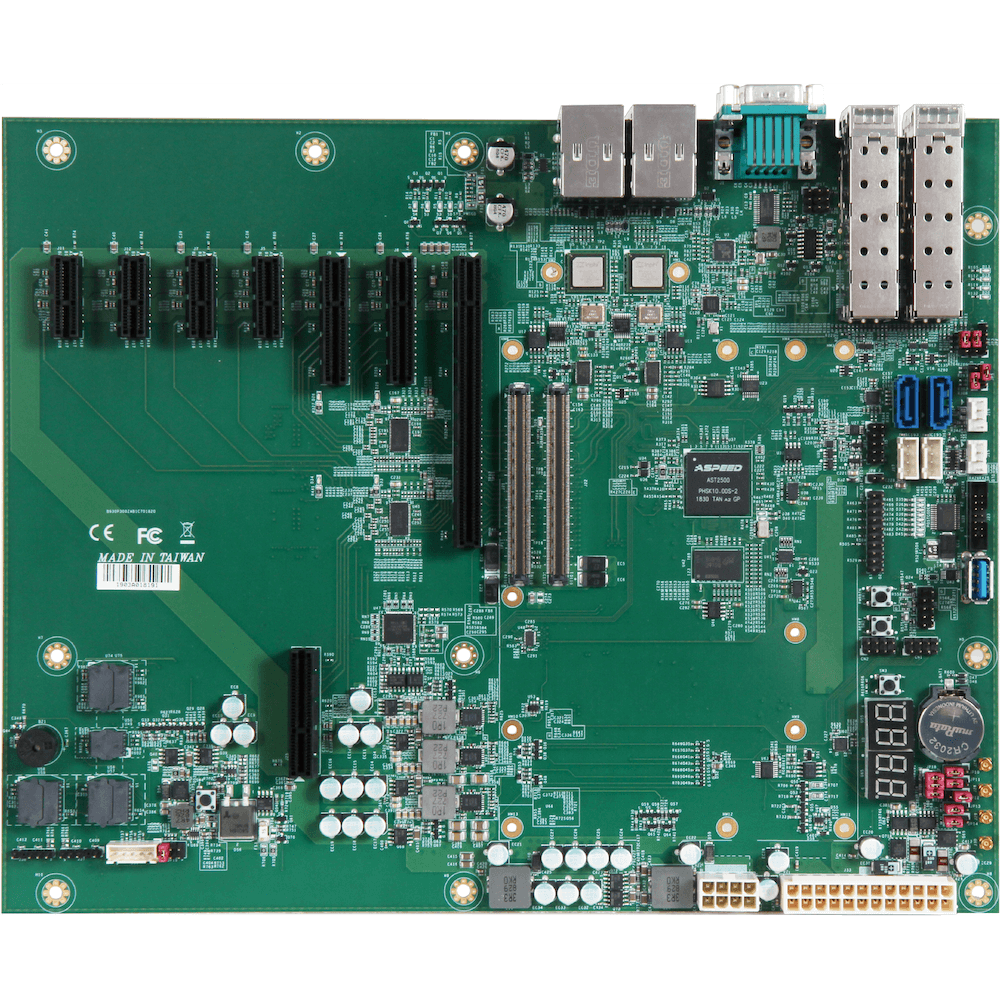

COM Express Revision 3.0 Type VII 모듈용 ATX 폼 팩터 평가 캐리어 보드(Inphi CS4227 PHY 포함 4x 10GbE 지원 포함)


  • Support both AT and ATX mode
  • 10G PHY: Inphi CS4227
  • 1x GbE, 4x 10GbE SFP+
  • 32 PCIe Lanes, 2 SATA III, 4 USB 3.0, 4 USB 2.0


Portwell PCOM-C701 is designed with ATX form factor with COM Express Type VII row connectors; it’s suitable for evaluation testing of Portwell’s Type VII COM Express modules with 4x USB 3.0, 32x PCIe lanes, 4x 10 Gigabit Ethernet, and BMC AST2500 support. Portwell is able to provide carrier board design guide for customer to design their carrier board as a reference. This can shorten customer’s carrier board developing time and make the development quick and easy. The PCOM-C701 provides COM Express Type VII support in addition to fulfill wide range of device connectivity for prototype and flexibility.


Model Name PCOM-C701
Form Factor (mm) ATX (305 X 244mm)
COM Type Depends on Module
CPU/ Clock/ Cache Depends on Module
PCI Express 1x PCIe Gen3 x16
3x PCIe Gen3 x4
4x PCIe Gen3 x1
Ethernet 1x GbE, 4x 10GbE SFP+
Sound N/A
Graphic Controller N/A
Carrier Board N/A

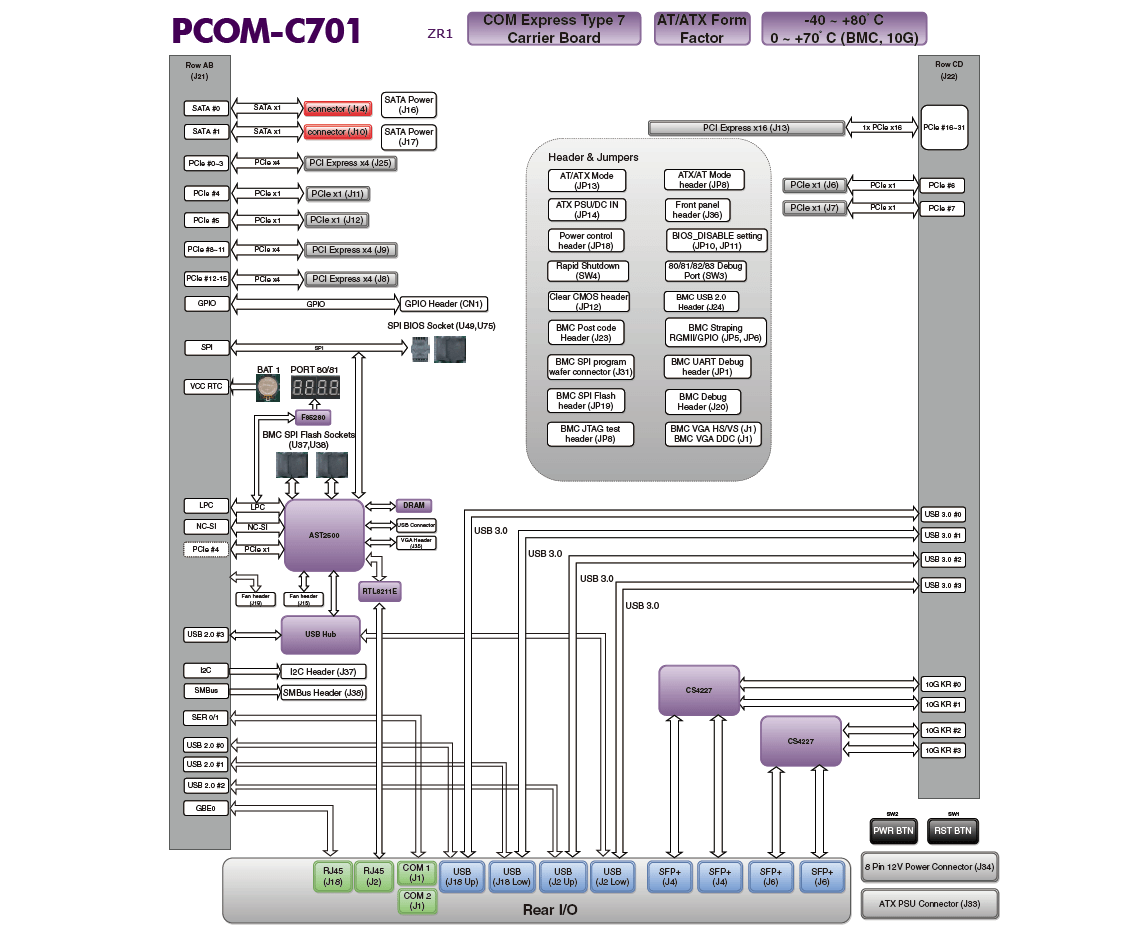

블록 다이어그램

구매 가이드

Ordering Guide
Product Ordering P/N Status
PCOM-C701 AB1-3J61Z Available


(자료 & 다운로드)

  Catalog   PCOM-C701 | Catalog    March 30, 2021
748.02 KB 2673 Downloads
