Portwell 23.8-inch medical monitors are ideal for general usage in hospital environments such as nursing stations, bed side terminal, and hospital laboratories. Featuring a wide viewing angle, high contrast and brightness, the monitor provides consistent, reliable and high-quality images for caregivers. Designed to meet DICOM standards and UL 60601-1 3rd Edition certified to meet customer requirements in a variety of applications.
| General | |
| ID Type | True flat series plastic design monitor |
| Chassis | True flat series plastic chassis ( with 100 x 100 VESA mount ) |
| Panel Spec | |
| Native Resolution | 1920 x 1080 |
| Active Screen Size(inch) | 23.8″ |
| Viewing Angel(degree) | 178 °(H) / 178 °(V) |
| Brightness(nits) | 250 nits |
| Contrast Ratio | 1000:1 |
| Display Colors(bits) | 16.7M colors (RGB 8 bits) |
| I/O Interface | |

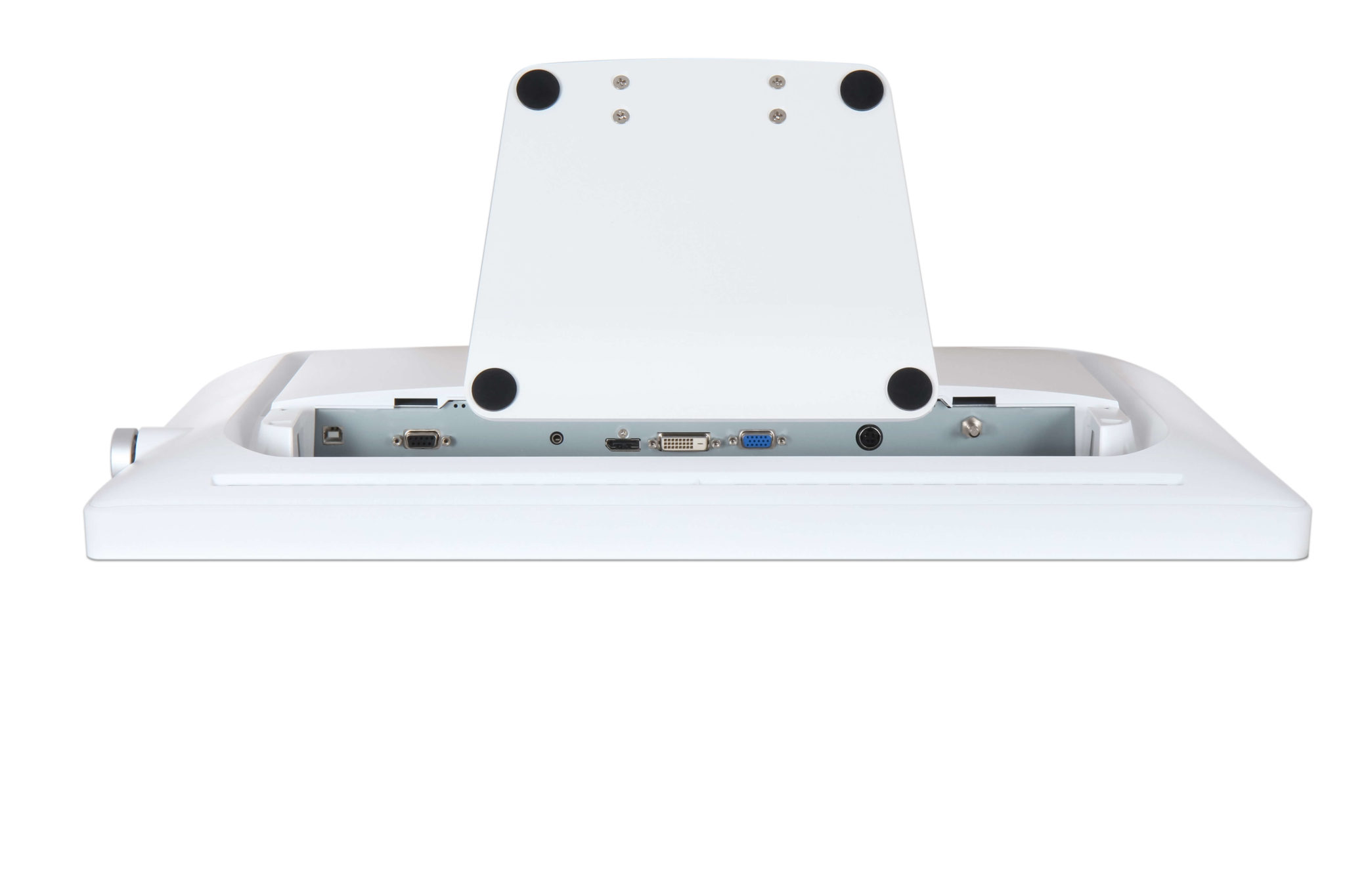

| I/O Terminal | HDMI / DP / VGA / USB Type B(Touch) / Audio in(3.5 mm) |
| Features | |
| Touch | P-CAP touch |
| Speaker | 2.0W speaker |
| DICOM | Yes |
| Power Requirements | |
| Power Supply | AC IN: 100 ~ 240V ; DC OUT: 24V / 2A |
| Power Consumption(W) | 40.0W |
| Physical Characteristics | |
| Dimensions(WxHxD)(mm) | 581(W) 400(H) 175(D) mm |
| Weight(Kg) | 9.5Kg |
| VESA Mounting(mm) | 100 x 100 |
| Environmental | |
| Temperature(°C) | Operating : 10 ~ 40°C / Storage : -20 ~ 60°C |
| Humidity(%) | Operating : 30 ~ 75% / Storage : 10 ~ 90% |
| Others | |
| Certifications and Compliances |
cTUVus(ANSI/AAMI ES60601-1;CAN/CSA-C22.2 60601-1) CB (IEC 60601-1),CE(EN 60601-1-2;EN 60601-1) FCC Part 15,ROHS,WEEE |
| AL8-3094 | (R).PHCD-24511. 23.8” 1920×1080 Medical Panel Display w/ Touch. White Housing |
