소중한 고객의 개발 시간을 절약하기 위해 RISC 기반 보드뿐만 아니라 Portwell이 제공할 수 있는 다음 ECO 시스템도 고려해야 합니다. CPU 모듈 + 캐리어 보드의 전체 기능, Android 4.0 및 Linux용 BSP 준비 3.0.x, QT5, 미들웨어 및 고급 유틸리티(진단 도구)가 지원됩니다.


  • Ultra low power consumption: < 2W
  • Longevity support more than 10 years
  • Higher C/P ratio
  • Support SMARC 1.0
  • Built-in H/W Graphics accelerators, Open GL ES1.1 & 2.0, Open VG and OpenMax supported
  • Portwell ARM ECO system to save customers′ development time to market

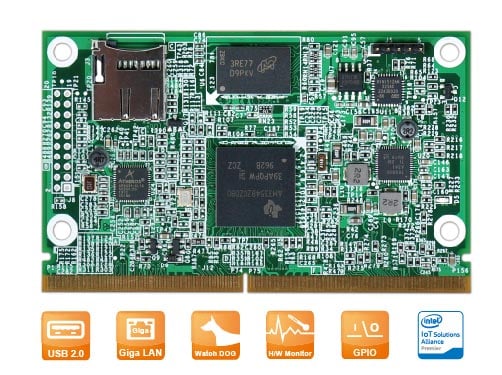

PSMC-M310T is design as CPU module series with SMARC form factor. It is based on embedded TI™ AM3354 Single-core processor, an ARM® Cortex®-A8 processor. Best cost-effective entry model to replace original markets of ARM9 and ARM11.

The SMARC (Smart Mobility ARChitecture), small form factor of lower power, cost concern, and high performance, is used as building blocks for portable and stationary embedded systems. The SMARC pin-out is optimized for the features common to ARM CPUs and not common to the x86 PC world. The modular approach allows scalability, fast time to market and upgradability while still maintaining cost performance, low power and small physical size.

구매 가이드

Ordering Guide
Contact us PSMC-M310T CPU Module board (Single core)
Contact us PSMC-C300ARM I/O carrier board


(자료 & 다운로드)

  Catalog   PSMC-M310T | Catalog 215S   March 16, 2016
637.68 KB 2855 Downloads
