Intel® 12th/13th Gen Core™ Processors based Mini-ITX Board with DDR5 SO-DIMM up to 64GB, eDP/LVDS, 3x DP Ports, HDMI®, Dual GbE LAN, 5x COM Ports


  • Support Intel® 12th/13th Gen Core™ Processors
  • Two SO-DIMM support DDR5 DRAM up to 64GB
  • Support dual Ethernet, 5x COM ports, 3x USB 3.2 Gen2 ports, 4x SATA III ports and Audio
  • Support one PCIe x16(Gen5), one M.2 Key E 2230 with PCIe x1 and CNVI for Wireless and one M.2 Key M 2242/2260/2280 with PCIe x4 and SATA3 for SSD

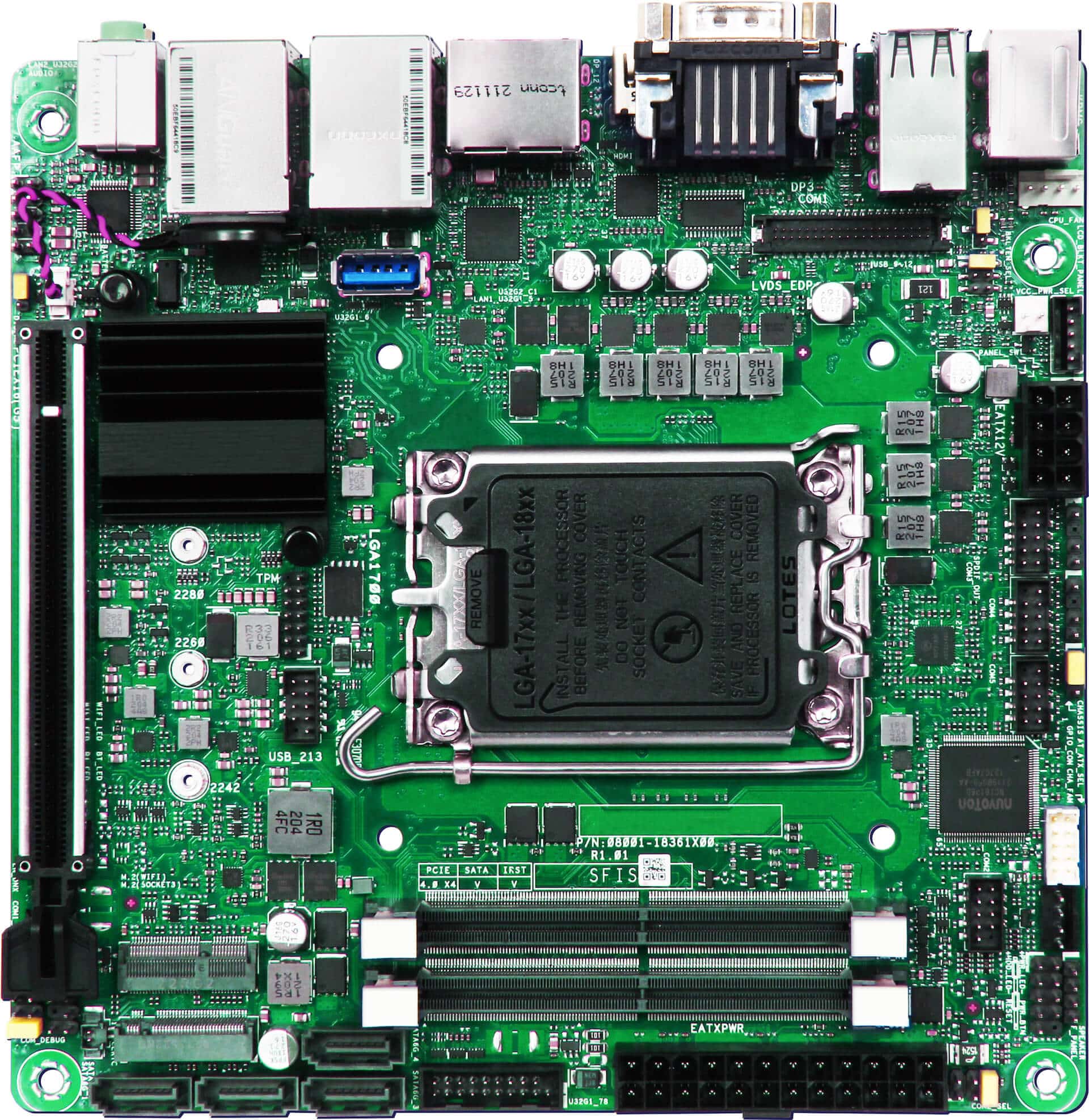

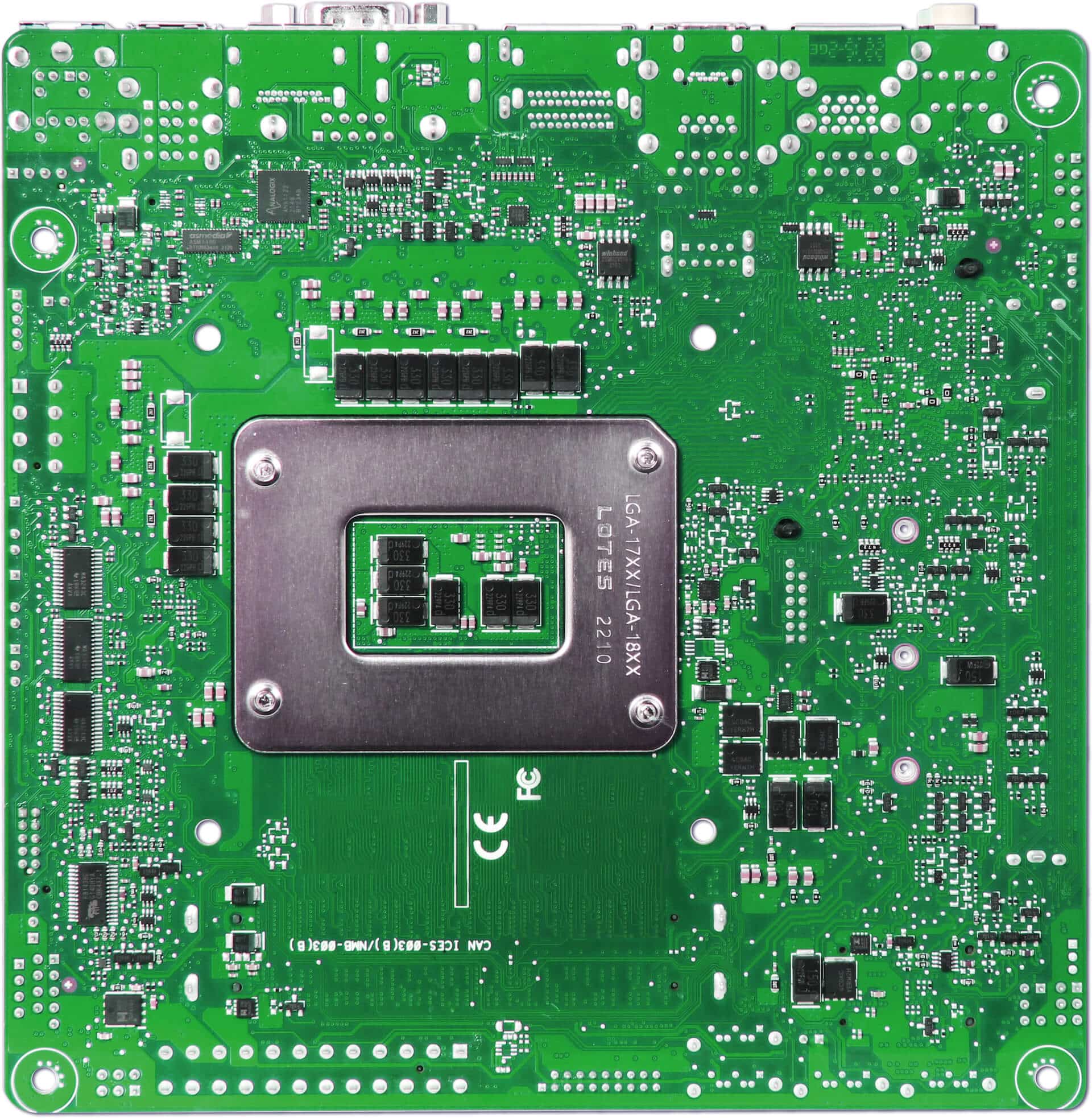

WADE-8213-Q670E is based on Intel® Q670E chipset and 12th/13th Gen Intel® Core™ i3/i5/i7/i9 desktop processors. It supports multiple display outputs, options of legacy features for industrial applications, GPIO ports, dual LAN as well as rich expandability with PCIe Gen5, M.2 M and M.2 E keys. Featuring rich I/O capabilities and advanced connectivity on a smaller and thinner space-saving platform, the Portwell WADE-8213-Q670E is ideal for a wide range of embedded applications.


Processor Intel® 12th/13th Gen Core™ Processors CPU in LGA1700 package
Chipset Intel® Q670E
Memory Support up to 64GB DDR5 4800 on two SO-DIMM socket
Storage Devices
  • Supports 4x SATA III ports
  • Supports RAID 0, 1, 5, 10
Watchdog Timer Programmable watchdog timer
Hardware Monitoring System monitor(Voltage, Fan Speed and Temperature)
Expansion Interface
  • 1x PCIe x16 Gen 5
  • 1x M.2 Key E 2230 with PCIe x1 and CNVI for Wireless
  • 1x M.2 Key M 2242/2260/2280 with PCIe x4 and SATA3 for SSD
Audio Audio Jack on rear I/O with Line-out / Line-in with Realtek ALC897 audio controller
  • Intel® I210AT (1GbE) and Intel® I225LM (2.5GbE) Ethernet controller

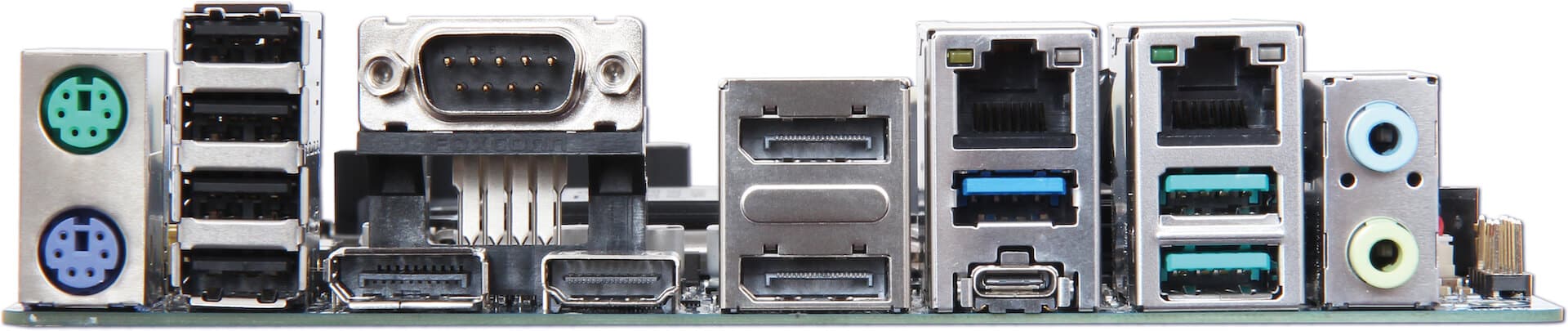

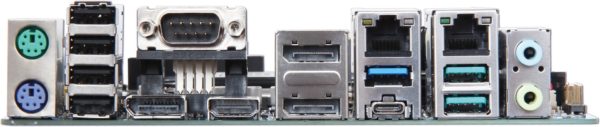

  • 2x RJ45 connectors on rear I/O
Serial port
  • 2x RS232/422/485 ports (one port on rear I/O and one port on board header)
  • 3x RS232 port on pin header
  • 3x USB3.2 (Gen2) on rear I/O(2x Type A + 1x Type C)
  • 1x USB3.2 (Gen1) on rear I/O
  • 1x USB3.2 (Gen1) on board(Vertical Type-A)
  • 2x USB3.2 (Gen1) on pin header
  • 4x USB2.0 on rear I/O
  • 2x USB2.0 on pin header
GPIO 8-bit configurable controlled by embedded controller
Graphic Controller Intel® UHD Graphics 770 supports DirectX 12, OpenGL 4.6
Display Interface
  • DP: Three DP ports on rear I/O, resolution up to 8K
  • eDP/LVDS: One eDP/LVDS port on board header, switch by BIOS
  • HDMI®: One HDMI® connector on rear I/O
Mechanical & Environment
Dimension 170mm(L) x 170mm(W)
Power Supply ATX power input
  • Operation Temperature: 0°C to 60°C
  • Storage Temperature: -20°C to 80°C
  • Relative Humidity: 5% to 95%, non-condensing
MTBF Over 100,000 hours at 40°C

구매 가이드

Ordering Guide


(R).WADE-8213-Q670E ATX ESB.Q670E w/o ECC LGA1700.w/DDR5 /eDP/LVDS/Thripal DP/HDMI®/Dual GbE/COM/Audio/USB


패킹 리스트

Packing List

One WADE-8213-Q670E Main board

One I/O shield
One SATA cable
One CPU cooler backplate


(자료 & 다운로드)

  Catalog   Catalog_WADE-8213-Q670E.pdf | Catalog 20230204   September 22, 2022
638.5 KB 1621 Downloads
      BIOS   BIOS_WADE-8213-Q670E_PORTWELL_2.03.00.zip | BIOS    November 27, 2023

    WADE-8213-Q670E BIOS update

    10.95 MB 1 Downloads
      BIOS   BIOS_WADE-8213-Q670E_2.01.00.zip | BIOS 2.01.00   June 26, 2023

    BIOS FW Update

    To support 9260NGW wifi card

    10.95 MB 76 Downloads
      BIOS   BIOS_WADE-8213-Q670E_20000.zip | BIOS 2.00.00   April 25, 2023

    Update BIOS to support 13th Raptor lake-S

    10.99 MB 64 Downloads
      BIOS   BIOS_WADE-8213-Q670E_10000.zip | BIOS 1.00.00   October 12, 2022


    10.59 MB 1057 Downloads
        Driver   ALL_Driver-WADE-8213_Win10/Win11-64bit.zip    October 11, 2022
      1.22 GB 936 Downloads
          User’s Manual   Manual_WADE-8213-Q670E_R1.2.pdf | Manual R1.2   July 21, 2023

        Updated Block Diagram infromation

        1.74 MB 41 Downloads
          User’s Manual   Manual_WADE-8213-Q670E_R1.1.pdf | Manual R1.1   March 25, 2023

        User manual update

        1.75 MB 119 Downloads
            Software   Software_WADE-8213-Q670E_Unified_PET_4.7.2.zip | Software PET 4.7.2   November 24, 2022

          1) GUI優化

          2) Sample code update

          11.35 MB 869 Downloads
